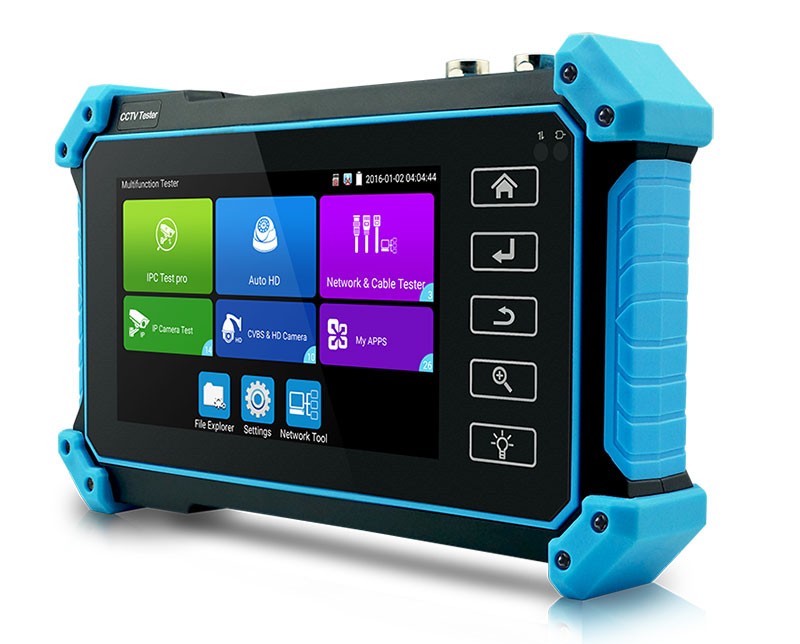

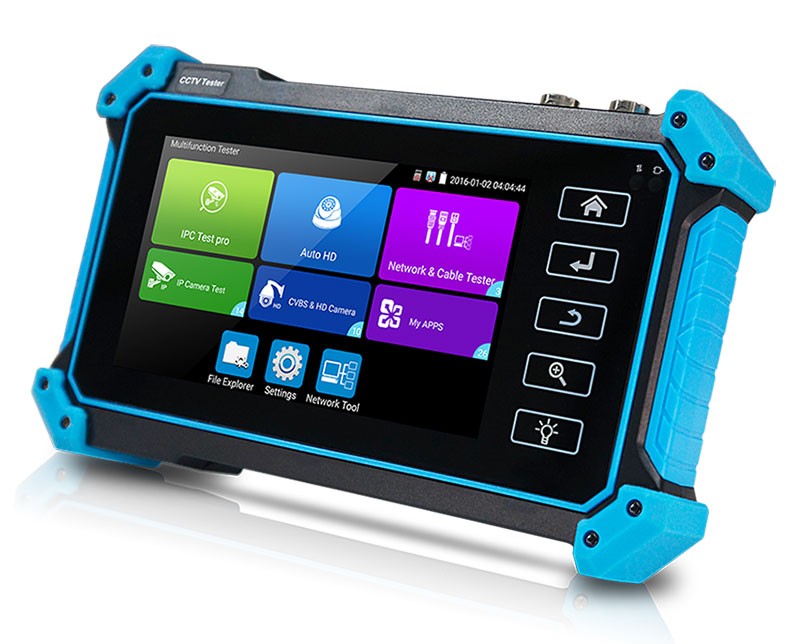

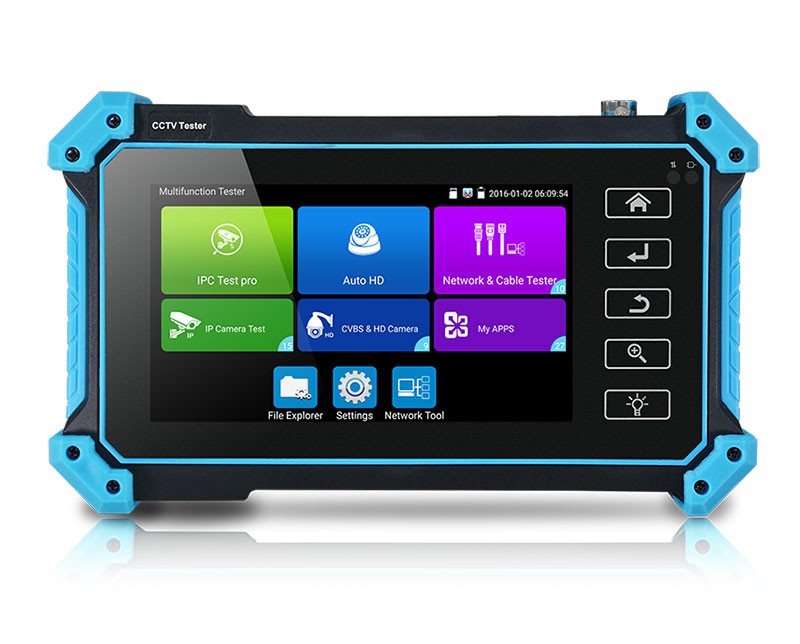

CCTV Tester: ZDCT-0068 5.4 inch IPS touch screen IP camera CCTV tester is designed for maintenance and installation of IP analog, HD coaxial cameras as well as other security equipment. The 1920*1080 resolution enables it to display network HD cameras and analog cameras in high resolution. The unit supports many ONVIF PTZ and analog PTZ control, and cable test functions. CCTV installers often need to carry a variety of testing tools to complete their work. If take the all in one camera tester, making working conditions safer and increasing productivity.

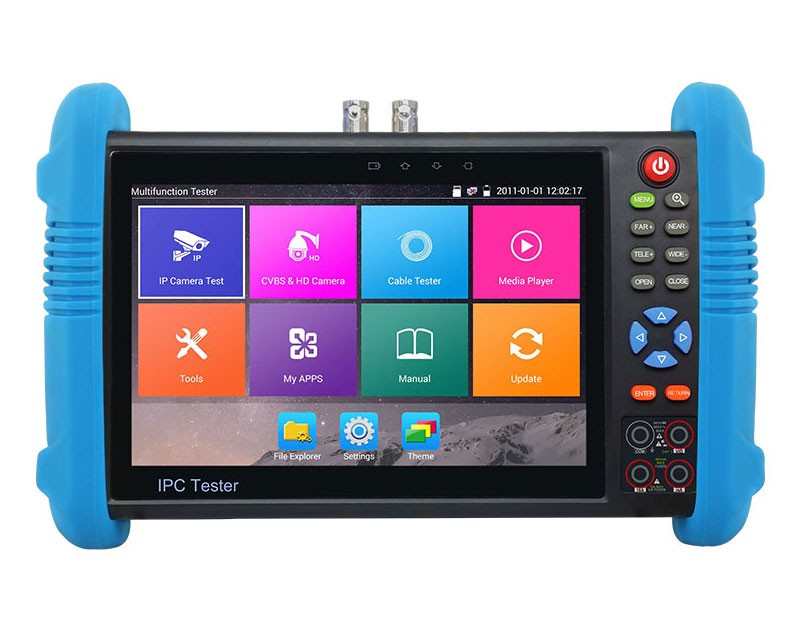

- 7" CCTV Tester: ZDCT-0098 (High-end series optional)

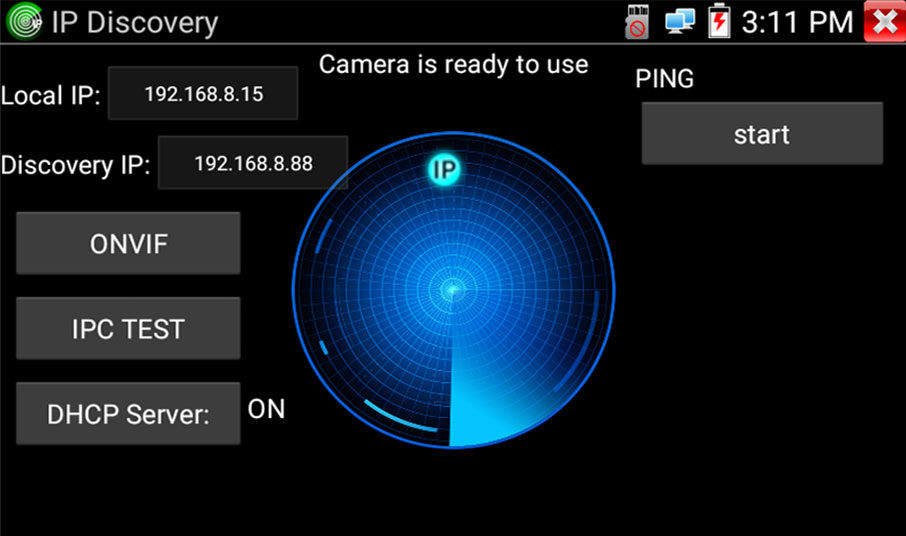

- IP Discovery:
Auto-scan the whole network segment IP, as well as auto-modify the tester's IP to the same network segment with the scanned camera's IP

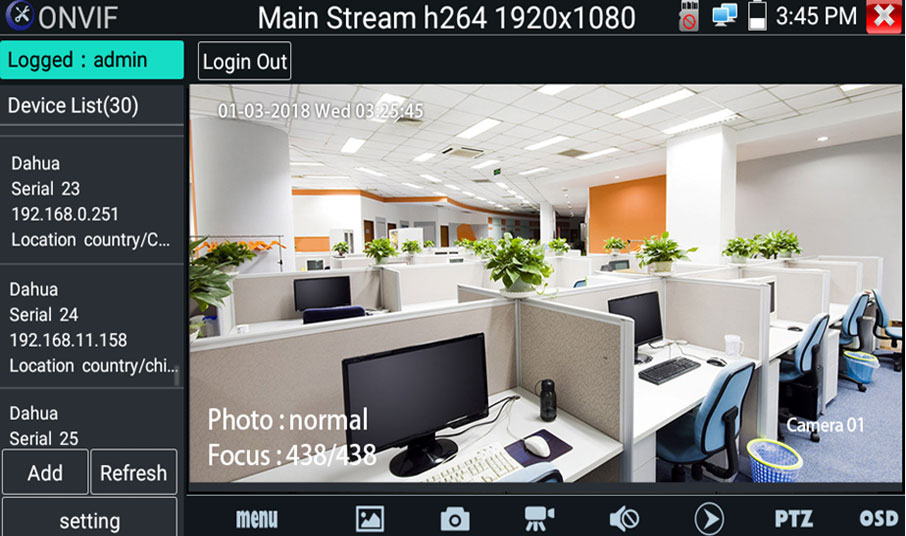

- Rapid ONVIF:
4K camera test via mainstream, support 12MP IP camera test.
OSD menu, can modify channel name.
Can search network segment IP camera address.
-

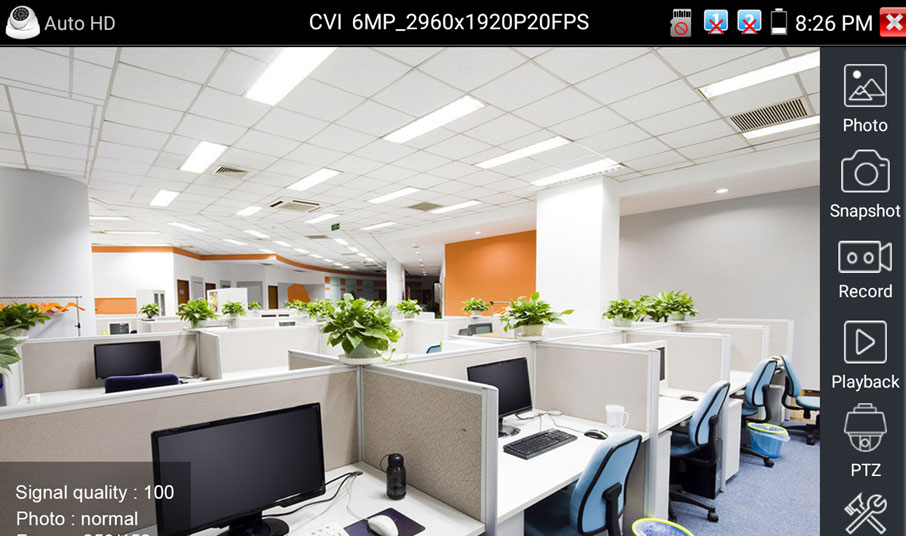

- Auto HD:
Auto recognize HD coax camera type and resolution, suport snapshot,
video record & playback, coaxial PTZ & call OSD menu

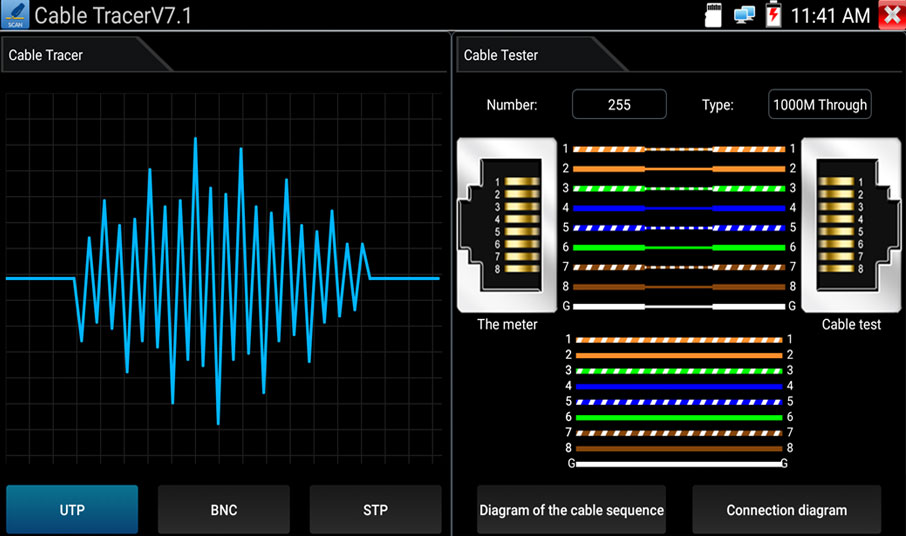

- Cable Tracer:
Cable tracer and UTP cable test app i the same interface.
Can search network cable, BNC cable and shield cable, decisively rejects noise and false signals.
Locate cables quickly and easiy.

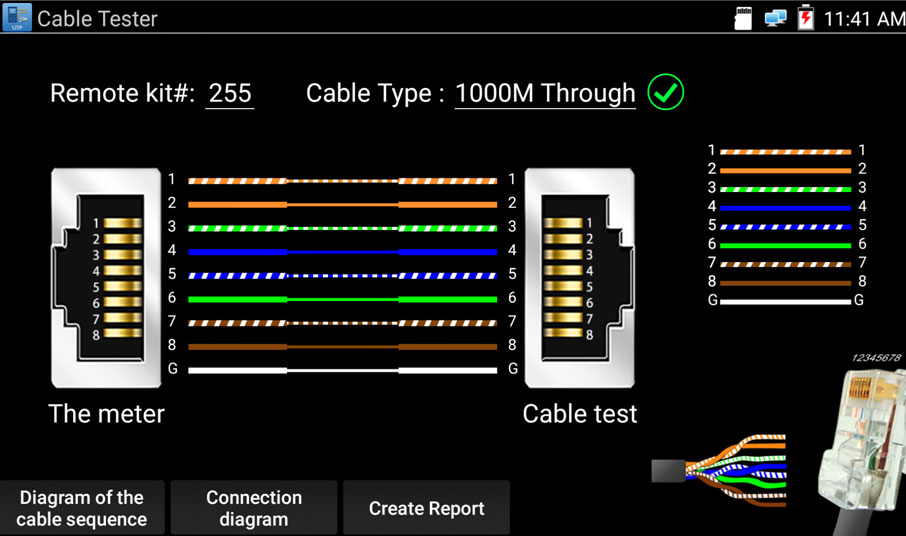

- Advanced UTP Cable Test:
UTP cable, BNC cable, telephone cable and shield cable etc sequence and continuity test, can save testing report.
Can detect the near-end, mid-end and far-end fault point of RJ45 cable connector.
Camera Test:
- 5 inch IPS touch screen, 1920*1080 resolutions
- H.265 & H .264 IP, 4K video display via mainstream
- 8MP TVI test, 3840 x 2160P 12.5/15 FPS, 4xzoom, video record & playback, coaxial PTZ control & call OSD menu
- 8MP AHD test, 3840x2160P 15 FPS, 4xzoom, video record & playback, coaxial PTZ & call OSD menu
- 8MP CVI test, 3840 x 2160P 12.5/15FPS, 4xzoom, video record& playback, coaxial PTZ & call OSD menu
- Auto HD app, auto recognize HD coax camera type and resolution, support snapshot, video record& playback, coaxial PTZ & call OSD menu.
- VGAinput, up to 1920 x 1200P 60FPS, support snapshot, video record& playback.*
- HDMI Input, up to 4K 30FPS, support snapshot, video record& playback.*
- Rapid ONVIF, Auto log in and display image, create testing report
- IPC test pro, auto scan all network segments IP, auto open PoE power and display the power. Input username and password, can scan camera image, can batch activate HIKVISION and Dahua cameras. Jump to ONVIF interface and test tools.
- AXIS, Hikvision camera test, enter ONVIF app, input username and password to test
- HIKVISION test tool, support batch activate HIKVISION cameras and modify IP address, modify password etc. Self-defined modify channel name, can quickly change H.264 and H.265 video, open wide dynamic mode. Factory restore, etc.
- Dahua test tool, support batch activate DAHUA cameras and modify IP address,username and password. Self-defined modify channel name.
-IP and analog display image at the same time
- IPC TEST (Non-ONVIF test), HIK test tool (Hikvision camera), DH test tool (Dahua camera)
Cable test:
- Improvement cable tester, UTP cable, telephone cable etc order and connectivity test, can save testing report, if special number, need customized. Can detect the near-end, mid-end and far-end fault point of the network cable crystal head.
- RJ45 TDR cable test, test cable pair status, length, attenuation, reflectivity, impedance, skew etc, can create test report.
- Digital Cable tracer, search BNC cable, network cable and telephone cable from the mess cables. Cable search and UTP cable can test at the same time
Other Functions:
- Network tool: Ping, IP scan, Port Flash, DHCP server, Trace Route
-Tester Play: Tester, android version mobile phone and PC display at the same time
- Traffic monitoring, display network port or WIFI connection real-time upload and download speeds and other network parameters
- Customers self update software, you can install apps with android version
- Media player, 4K video files and MKV/MP4 media files play
- Display its genuine resolution of the IP camera images
- Audio in, support record and save the audio/LED lamp, calculators, music players and other application tools
-7.4 V /3350mAh Li-ion Battery, after 3-4 hours charging, working time lasts 5 hours- CVBS camera test, PTZ controller
- DC12V/3A power output, camera can be powered from DC 12 Voltage.
- Rapid video, just by one key to detect all network cameras and auto display
- Built in Wi-Fi, display image from the wireless camera, create WIFI hotspot
