Camera Power Adapter: ZDPS-1205-4P

Multi-Angle View

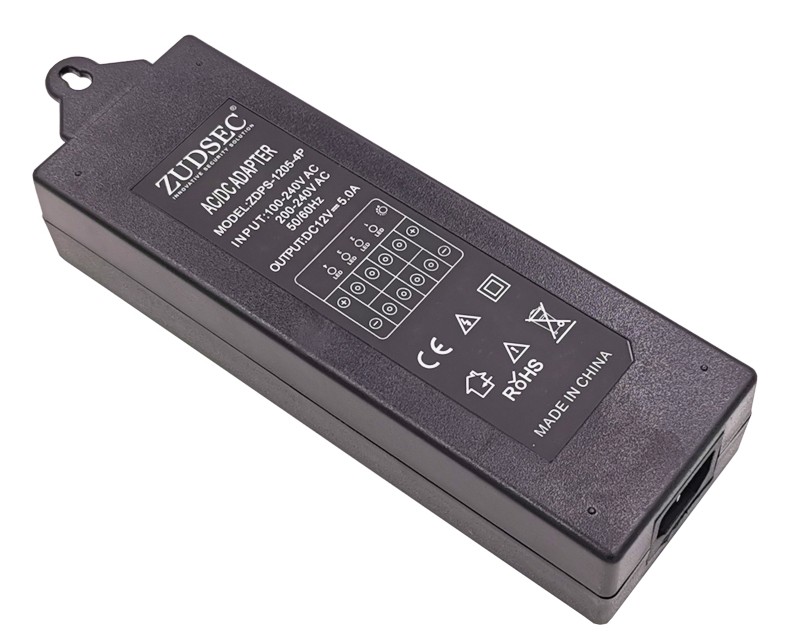

CCTV Switching Power Adapter with 4 Channels Output

MODELZDPS-1205-4P

Desktop Integrated
4-Channel output
Output: DC12V, 5A
With AC power cable

GET A FREE QUOTE

Overview Features Specifications Other Information

CCTV Switching Power Adapter with 4 Channels Output: 12VDC, 5A. 4 Channel, this Switching Power Adapter is special designed for CCTV Security Camera system

- 100 to 240VAC Universal Input
- 4 channel DC Outputs to 60W Maximium
- Adjustable output voltage from 9vdc-13.7vdc.
- EU/US/UK/AU AC power cord is available

Model	ZDPS-1205-4P
Input	100-240VAC(47-63Hz)1.2A Max 124-370VDC 1.2A Max
Output	DC12V/5A 4channels
Voltage linear regulation rate	±5%
Main output ripple & noise	≤200mV
Stand By Power Consumption	≤0.21W
Protection	OCP,OVP,OTP,Short
Operating Temperature/Humidity	Temp:-10~40ºC,Humidity:20%-90RH
Storage Temperature/Humidity	Temp:-40~70ºC,Humidity:10%-95RH
EMI & Safety	Compliance to GB4943 Class B & EN60950
Pin	3C,FCC,VDE,BS,SAA,CE, FCC, Rohs, UL, CUL, KC, PSE, SAA.
Thermal	Natural cold

Package Contents:

Standard Exporting Packing Box
