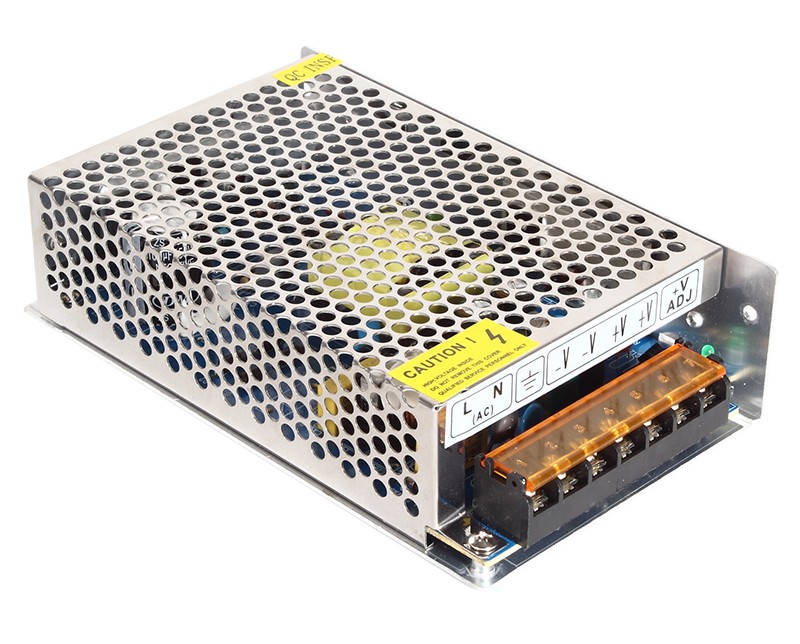

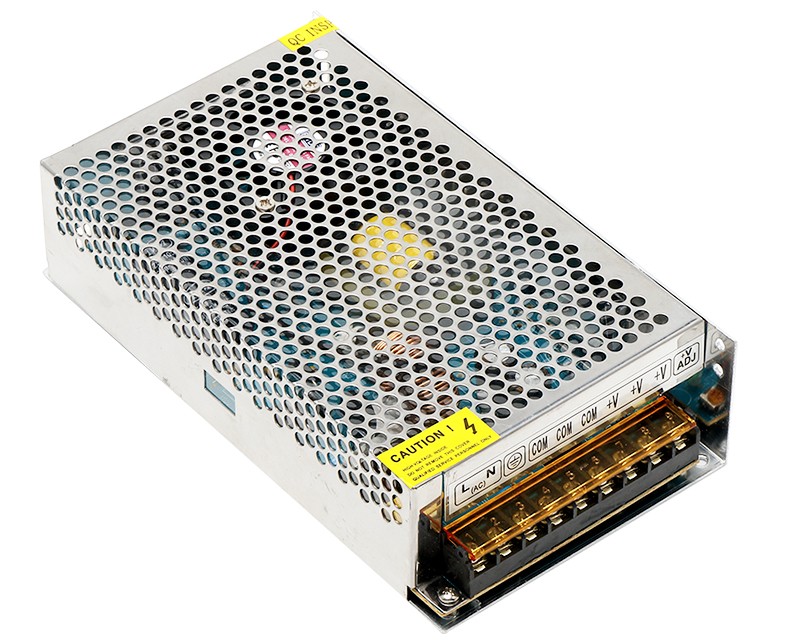

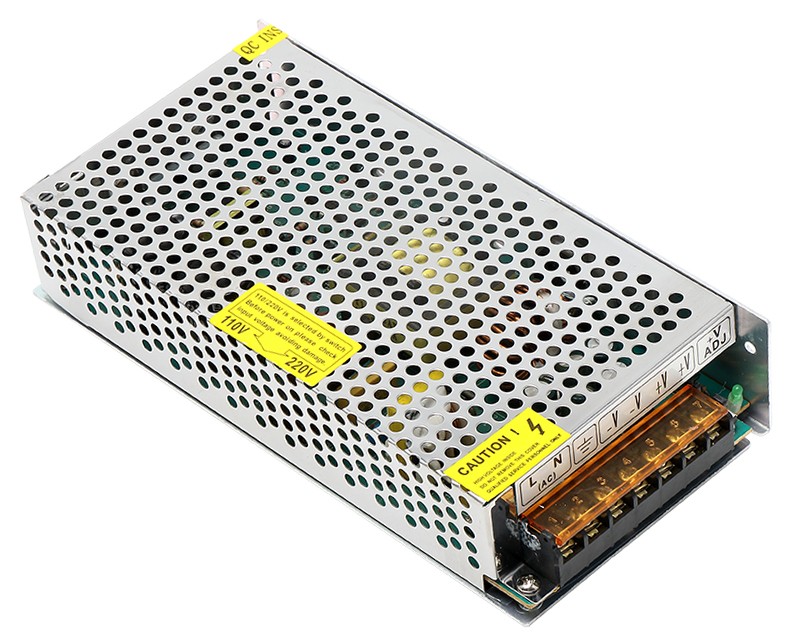

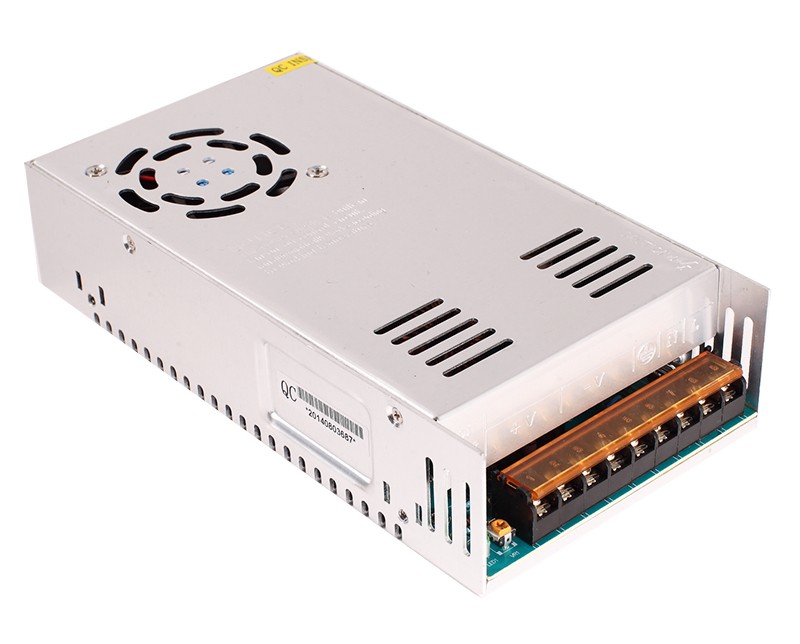

| Model | Items | ZDPS-S60-12 | ZDPS-S120-12 | ZDPS-S240-12 | ZDPS-S360-12 |
| Output | DC Voltage | 12V |
| Rated Current | 5A | 10A | 20A | 30A |
| Current Range | 0~5A | 0~10A | 0~20A | 0~30A |
| Rated Power | 60W | 120W | 240W | 360W |
| Ripple & Noise (max.) | 120mVp-p |
| Voltage Tolerance | ±2.0% | ±2.0% | ±2.0% | ±2.0% |
| Input | Voltage Range | 110~240VAC |
| Frequency Range | 50~60HZ |
| Efficiency(Typ.) | 82% |
| AC Current (Typ.) | 2.3A/240VAC or 5.5A/110VAC |
| Inrush Current (Typ.) | Cold strart 60A/220VAC |
| Protection | Over Load | Overload protected @110~160% above peak rating |
| Over Temperature | Protection type: Shut down O/P,re-power on to recover |
| Short circuit | Protection type: recovers automatically after fault condition is removed |
| Environment | Working Temperature | -30~+50°C (Refer to output load derating curve) |
| Working Humidity | 20~80% RH Non-condensing(Non Waterproof) |
| Storage temp.& humidity | -30~+40°C, 10~80%RH |
| Safety & EMC | Safety Standards | CE,RoHS, FCC |
| Withstand Voltage | I/P-O/P:1.5KVAC I/P-GND: 1.5KVAC |
| EMC Test Standards | EN55015:2013, EN61000-3-2: 2014 |
| Note | 1. All parameters NOT specially mentioned are measured at 220VAC input, rated load and 25°C of ambient temperature. |
| 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 10uf parallel capacitor. |
| 3. Tolerance: includes set up tolerance, line regulation and load regulation. |
Global

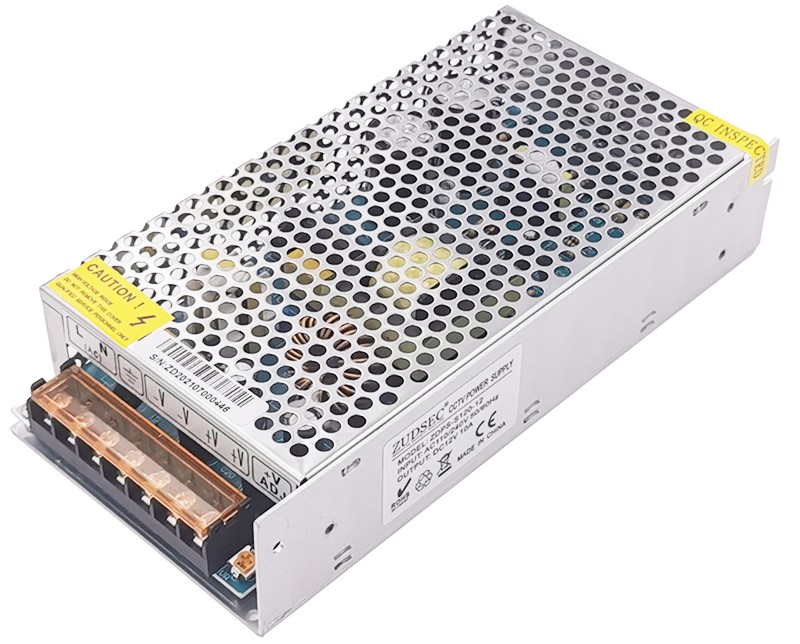

Switching Power Supply: ZDPS-S120-12
