Wifi Smart Home Camera: ZDC-Q16IP
Wifi Smart Home Camera: ZDC-Q18IP
Multi-Angle View

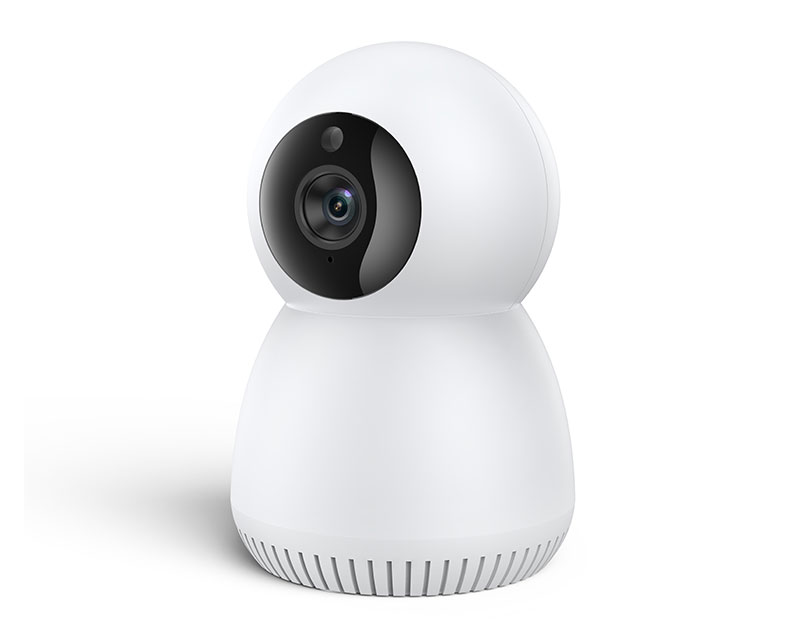

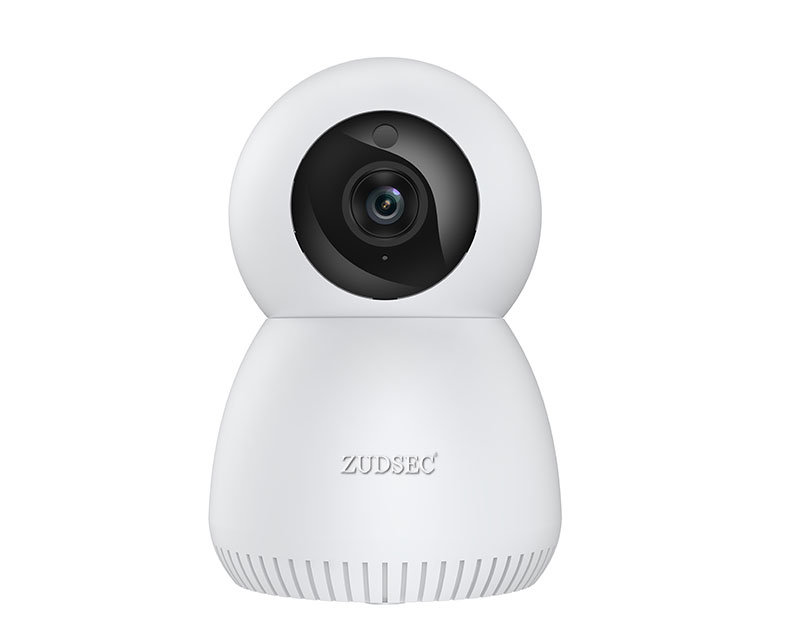

Wifi Smart Home Camera -Indoor Use

MODELZDC-Q16IP

Facebook Twitter InLink instagram Youtube Skype
  • Smart Life APP Control

  • Advanced Pan/Tilt rotation

  • Support intelligent tracking & Motion detect

  • Two way intercom

  • 2.0 Mega Pixel, Resolution 1920x1080 in real time

  • Storage: Supports Micro SD card(Max 128G)

  • Support both WiFi and Ethernet RJ45 connection

Smart WiFi Home CameraThis is an innovative & unique WiFi IP Home Security & Monitoring system, which combines powerful multi-functions of Real time Video,  2-way Audio intercom, 2.0 MegaPixel, Intelligent tracking & Motion detecting, App monitoring, Cloud or TF card storage, Alarm push, Playback, Night version, Advanced Pan/Tilt rotation, and long-distance monitor all in one, use phone to watch the real 2.0MP HD Video, applied the latest global optimum HD hardware technology and P2P penetration technoloby, anywhere of the word can be easily controlled by it at any time. IR image monitoring and detection for moving objects, the Hi-Tech technology can eliminate the false alarm caused by environmental reason.


-  Integrated Real time Audio and Video, Wireless monitor and control all in one function
- Support both WiFi and Ethernet RJ45 connection
- 2.0 MegaPixel, Resolution 1920x1080 in real time
- Advanced Pan/Tilt rotation
- Built-in Microphone and Speaker for two-way voice intercom
- Intelligent tracking & Motion detecting
- Cloud or TF card storage, support 128GB storage maximum
- H.264 Video compression
- Alarm push, App control by Android, iPhone
- Support remote setting/playback via smartphone
- Global PnP smart server cluster applied, high stability
- Plug & Play technology applied., 99% penetration rate.

Model

ZDC-Q16IP

 Video compression

 H.264 Baseline Profile
 Video Image sensor 2.0MP HD CMOS Sensor
 Chipset Hi3518E
 Resolution 1080P ( 1920X1080),  2.0 Megapixel
 Frame rate 1-30FPS
 Min. illumination Color: 1.5Lux,  Black&White:  0LUX (IR LED on)
 Infrared 1PCS Powerful IR LED Illuminators  IR range ≥5M
 IR Distance Dual IR-CUT optical filters, day/night auto switch
 S/N ratio ≥38dB
 Performance AWB,  AGC,  BLC
 Lens/Viewing angle 3.6mm@F1.4/56°
 System Security Account, password authority management
 DDNS With free dynamic domain name (DDNS)
 Remote Access Support IOS & Android APP,  Web Browsers
 Local storage Support external 128GB Micro SD card,24 hours recording
 PNP Support P2P remote viewing by Smart Phone or IE browser
 Server Worldwide distributed P2P Servers
 Audio Coding G.711A
 Input Built-in Microphone (38dB)
 Output Built-in Speaker (4Ω 1W)
 Rotation Pan/Tilt Pan rotation 350°,  Tilt Flip 80°,4X zoom
 Recording Modes Manual ,Timer, Alarm
 Storage by Built-in Micro SD Card,  PC hard disk
 Network Wired LAN 1x 10/100Mbps adaptive RJ45 port
 Protocol TCP/IP,HTTP,TCP,UDP,SMTP,DHCP,DNS,DDNS,NTP,UPnP,P2P
 Wireless Wi-Fi  802.11b/g/n
 Alarm Defense setting Support One-Click ARM/DISARM all defense settings
 Alarm sensor input Support up to 64 wireless alarm sensors
 Motion detect Support
 Alarm action 1 Sound Alert
 Alarm action 2 Push to 5 Mobile Phones via APP
 Alarm action 3 snapshot and email
 General Material Superior ABS (engineering plastic)
 Application Indoor
 Power supply DC5V , 2A
 Working Temperature -10~50 °C
 Working Humility < 95% RH
 Size 110 x 102 x 115mm
 Weight  0.5kg
 Accessories Power adapter, CD user manual, operation instruction
 Optional accessories Wireless Door Contact, Remote control
 Installation Desktop or Ceiling mount

* Packing Size:  17.5*10*9CM,  Weight: 0.3KG.


Package Contents:

  • Standard Exporting Packing Box
