Passive HD Video Balun with Combined Randomly Structure

MODELZDVB-HD1011

Effective transfer HD signal and Analog signal
Combined type, multi-group splicing,
Quick installation, improve engineering efficiency.
Surge protection, anti-interference, filter noise reduction.
Interference device, Surge protect UTP video balun

GET A FREE QUOTE

Overview Features Specifications Other Information

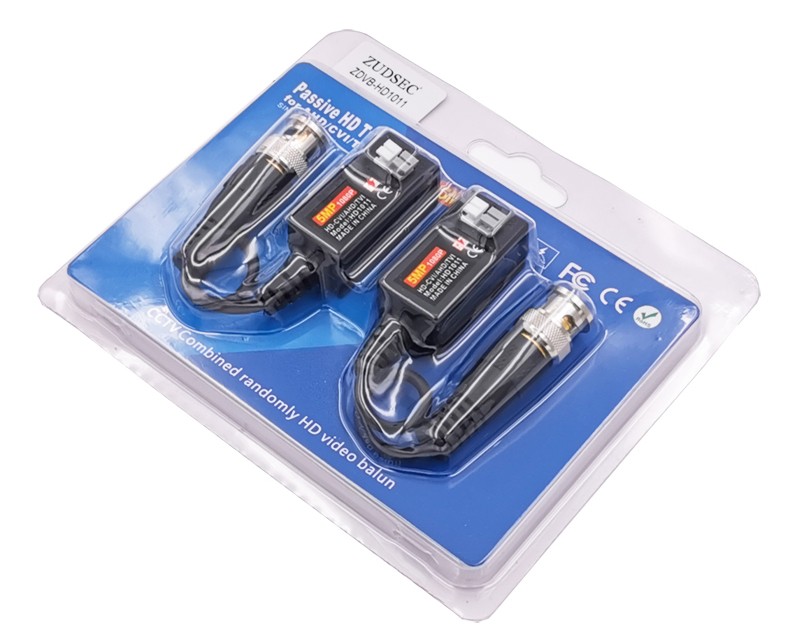

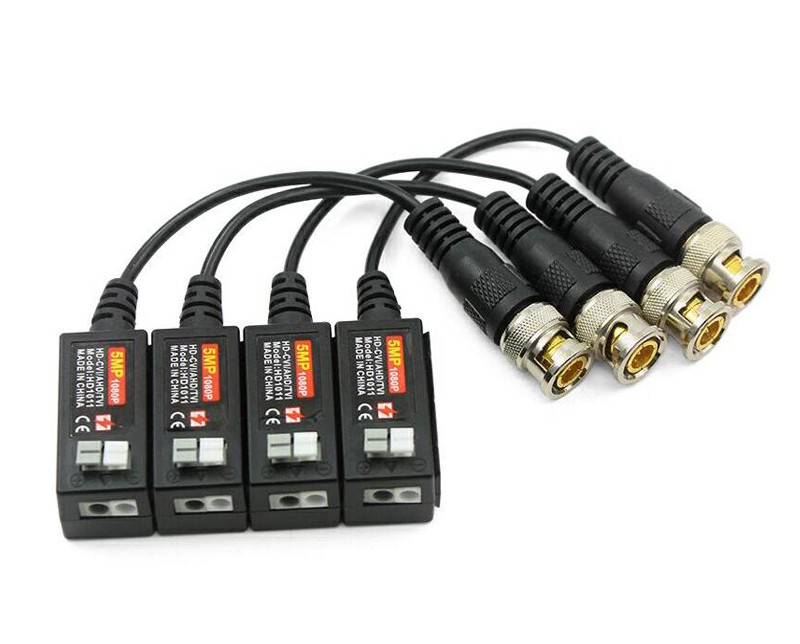

1CH Passive Interlocking HD Passive Video Balun: The combined HD video balun, can be combined randomly, 4CH, 8CH , 16CH,32CH,48CH, even more choosing what you like. HD Coaxial twisted pair transmitter new solution, push pin interface, easy and convenient installation and improve engineering efficiency, more convenient for construction workers to operate, reduces the cost of human and material. With anti-surge protection, anti-jamming, noise filtering function is your best choice for the ideal product.

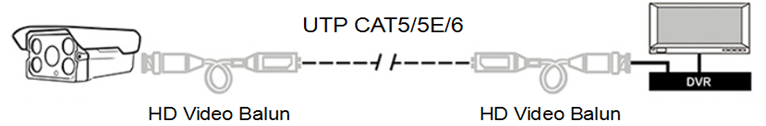

- Full motion CCTV video at long distance(Max .300ft/600M)

- SUPPORT: HD-TVI-CVI-AHD-CVBS

- For HD-AHD: 720P/600M, 1080P/450M, 3MP/ 5MP/8MP: 300M

- For HD-CVI: 720P/550M, 1080P/400M, 3MP/ 4MP/5MP: 300M

- For HD-TVI: 720P/550M, 1080P/400M, 3MP/ 4MP/5MP: 300M

- For CVBS：600M

Model	ZDVB-HD1011
Compatble With	All Baseband Signals, including PAL, NTSC, SECAM
CMRR (Common Mode Rejection Ratio):	60dB
Storage temperature:	＞20℃-70℃
MTBF	＞50,000h
Humidity(non-condensing)	0～95%
Storage temperature:	-40℃-150℃
Video Connector	BNC-M; Impedance 75 ohms
UTP Cable Connector	Screwless Terminal block: Impedance 50 ohms
Material	ABS Engineering Plastic
NCT Wight:	23g
External dimension:	46mm16mm21mm (Without Cable and BNC)
Wire Type:
Unshielded Cat-5 or above twisted pair wire (Please use standard Cat-5 or above twisted pair wire. The wire quality will directly affect the transmitted image effect and transmission distance.)
Characteristic impedance:	100Ω±20Ω
DC loop resistance:	18Ω/100m
Differential capacitance:	62pf/m (Maximum)
Recommend standard CAT-5/6 or above unshielded twisted pair wire. The Wire quality Will affect the transmission distance and video quality
