Wired Magnetic Door Sensor: ZDD-413MB
Multi-Angle View
Multi-Angle View
Multi-Angle View

Wired Magnetic Door Sensor -Surface Mount

MODELZDD-413MB

Facebook Twitter InLink instagram Youtube Skype
  • Detecting door gap by opening

  • Operating distance(Gap): 20~30mm

  • Connecting mode: NO&NC/Screw

  • Material: ABS

  • Color: White/Brown

  • Installation: install outwardly

Wired Magnetic Door Sensor -Surface Mount: Detecting door gap by opening, Be used to detect door, window, or drawer if it is opened or moved. It is widely used for monitoring and security system, with high reliability, small size, easy installation and operation and strong flexibility.


*  NC type : Magnet nearly, Switch ON ( Current flow )

*  NO type : Magnet nearly, Switch OFF (No current flow)


- Detecting door gap by opening
- Connecting mode: N.C. /N.O./COM
- Installation: install outwardly

  • Operating distance(Gap): 20~30mm

  • Housing:  ABS ,white

  • Connecting mode: NO&NC/Screw

  • Installation: install outwardly

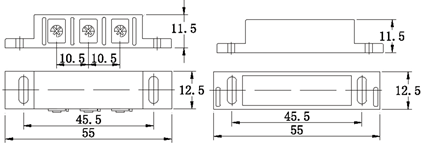

  • Package: Product Size:       55*12.5*11.5mm
                   Inner packing:     10sets / PE
                   Outer packing:     800 sets / carton
                   Gross Weight:     21.0Kgs/ctn
                   Remarks:             4 screws including


Wired Magnetic Door Sensor -Surface Mount(图1)

Package Contents:

  • Standard Exporting Packing Box
