Wired Door Sensor: ZDD-416MS

Wired Door Sensor -Recessed Mount

MODELZDD-416MS

Facebook Twitter InLink instagram Youtube Skype
  • Detecting door gap by opening

  • Operating distance(Gap): 20~30mm

  • Connecting mode: N.C. /Screw

  • Color: White/Brown

  • Housing Material:  ABS

  • Installation: embedment installing

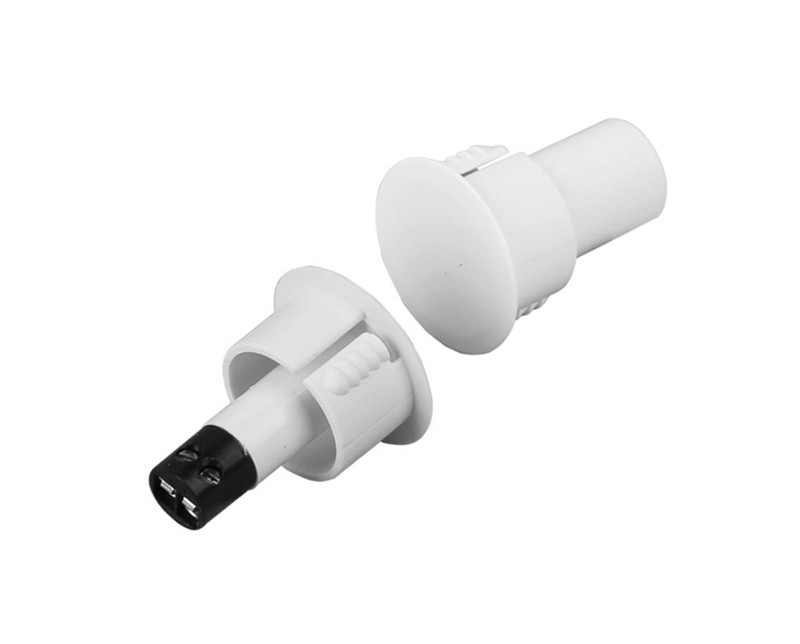

Wired Magnetic Door Sensor -Recessed Mount: Detecting door gap by opening, Be used to detect door, window, or drawer if it is opened or moved. It is widely used for monitoring and security system, with high reliability, small size, easy installation and operation and strong flexibility.

- Press fit mini contact
- Color : white, brown
- Connecting mode: N.C. /Screw

- Installation: embedment installing, suitablel for wooden dor

  • Operating distance(Gap):  20~30mm

  • Housing Material:  ABS

  • Color: white

  • Connecting mode: N.C. /Screw

  • Installation: embedment installing

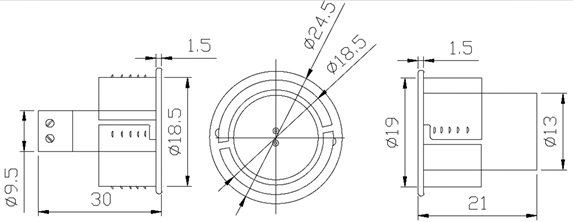

  • Product Size:        Φ18.5*30mm
         Packing:          10sets / PE(Inner); 600sets / carton( Outer)
         Gross Weight: 11.0Kgs/ctn


Wired Door Sensor -Recessed Mount(图1)

Package Contents:

  • Standard Exporting Packing Box
