Magnetic Contacct: ZDD-419M
Multi-Angle View
Multi-Angle View

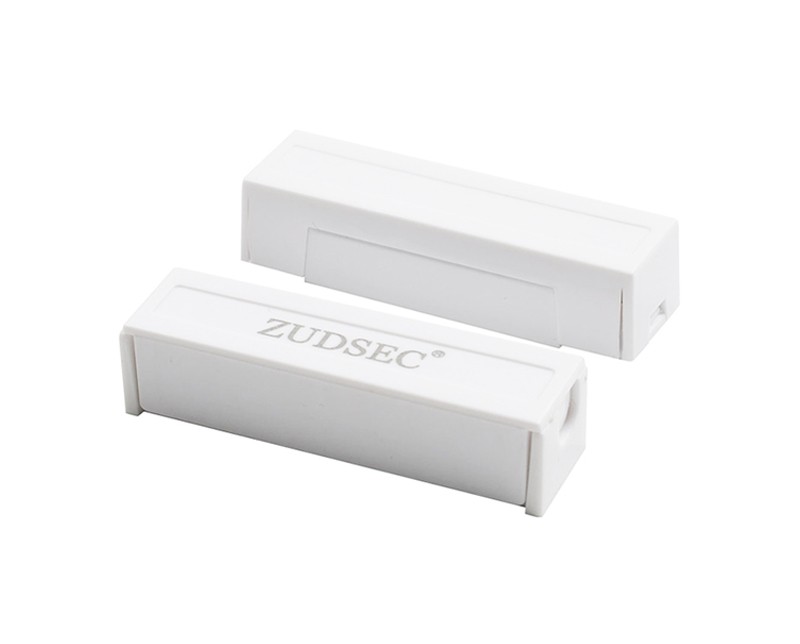

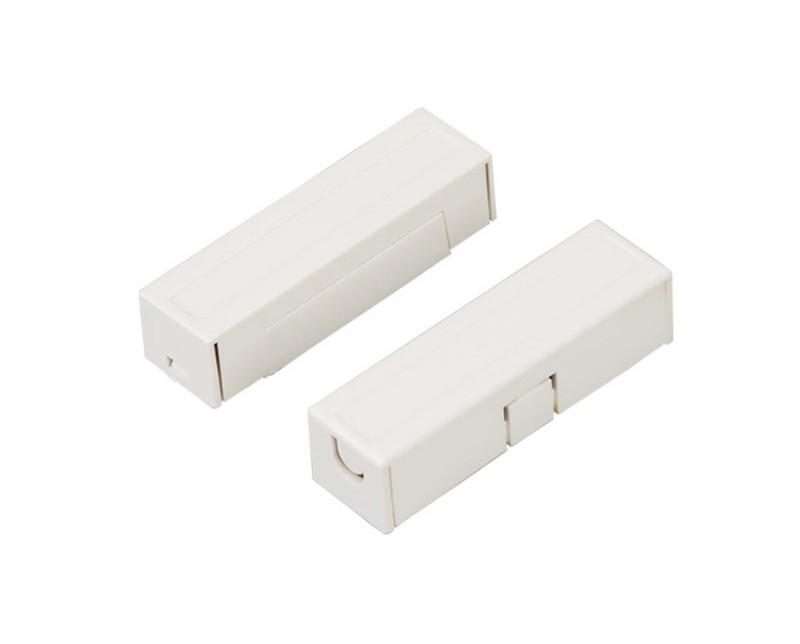

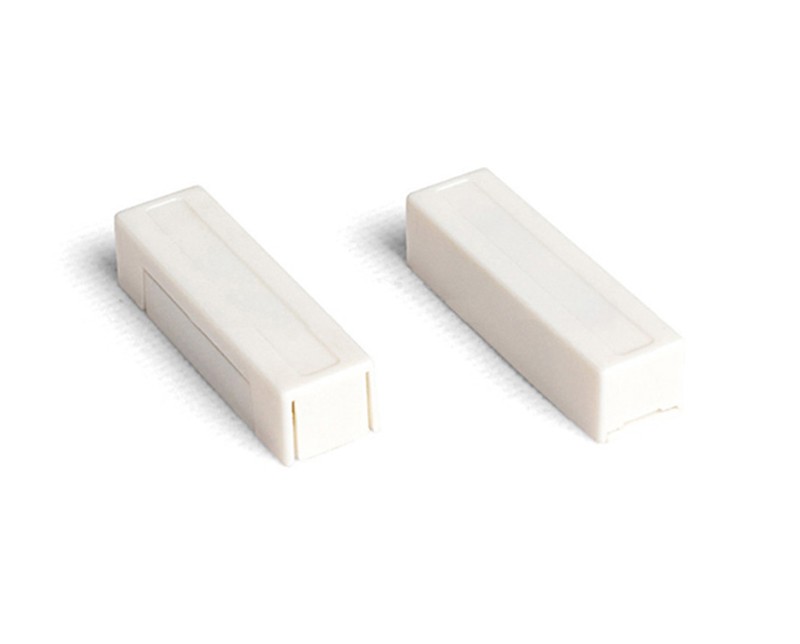

Wired Magnetic Door Sensor -Surface Mount

MODELZDD-419M

Facebook Twitter InLink instagram Youtube Skype
  • Detecting door gap by opening

  • Operating distance(Gap): 20~30mm

  • Connecting mode: NC/Screw

  • Material: ABS

  • Color: White/Brown

  • Installation: install outwardly

Wired Magnetic Door Sensor-Surface Mount:  Consealed screw mount with attractive cover, Surface or concealed wiring. Detecting door gap by opening, Be used to detect door, window, or drawer if it is opened or moved. It is widely used for monitoring and security system, with high reliability, small size, easy installation and operation and strong flexibility.


- Consealed screw mount with attractive cover, Surface or concealed wiring
- Detecting door gap, window by opening
- Connecting mode: N.C. (N.O.& changeover  available)
- Installation: install outwardly

  • Operating distance(Gap): 20~30mm

  • Connecting mode: NC/Screw

  • Housing:  ABS

  • Color: white /brown

  • Installation: install outwardly

  • Package:

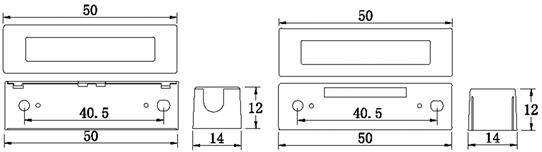

    Product Size: 50*14*12mm

    Inner packing: 10sets / PE
    Outer packing: 800 sets/ctn

    Gross Weight:  17.0Kgs/ctn


     Wired Magnetic Door Sensor -Surface Mount(图1)


Package Contents:

  • Standard Exporting Packing Box
