Wired Magnetic Door Sensor: ZDD-415M

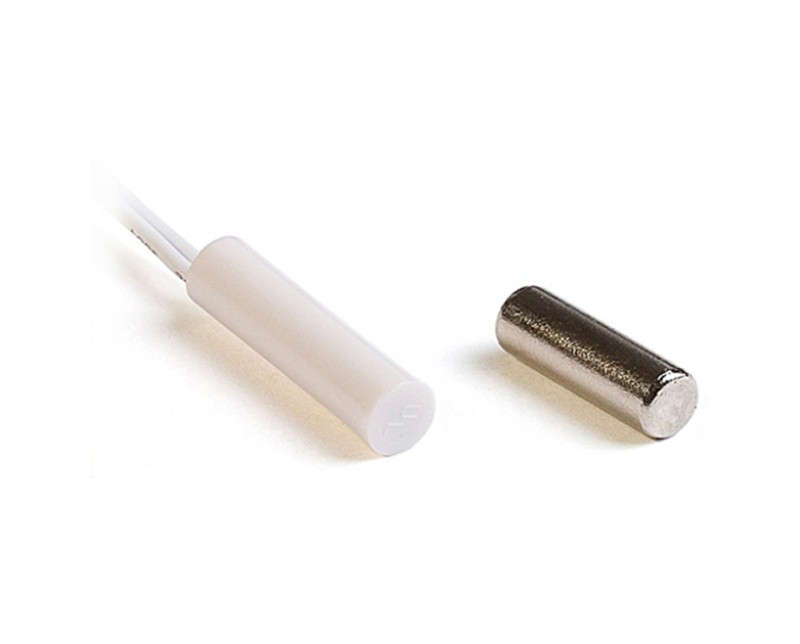

Wired Magnetic Contact -Recessed Mount

MODELZDD-415M

Facebook Twitter InLink instagram Youtube Skype
  • Detecting door gap by opening

  • Operating distance(Gap): 20~25mm

  • Connecting mode: N.C / Wire (N.O.& changeover  available)

  • Color: White/Brown

  • Cable length: 350mm

  • Installation: embedment installing

Wired Magnetic Contact -Recessed Mount: Detecting door gap by opening, Be used to detect door, window, or drawer if it is opened or moved. It is widely used for monitoring and security system, with high reliability, small size, easy installation and operation and strong flexibility

- Detecting door gap by opening
- Connecting mode: N.C. (N.O.& changeover  available)
- Installation: embedment installing

  • Operating distance(Gap): 20~ 25mm

  • Housing:  ABS ,white /brown

  • Installation: embedment installing

  • Package:

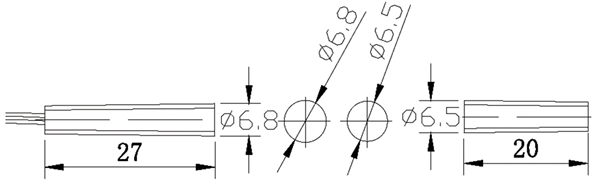

          Product Size:             Φ6.8*27mm
          Inner packing            20sets / PE
          Outer packing           2000 sets / carton
          Gross Weight            14.1Kgs


Wired Magnetic Door Sensor -Recessed Mount(图1)

Package Contents:

  • Standard Exporting Packing Box
