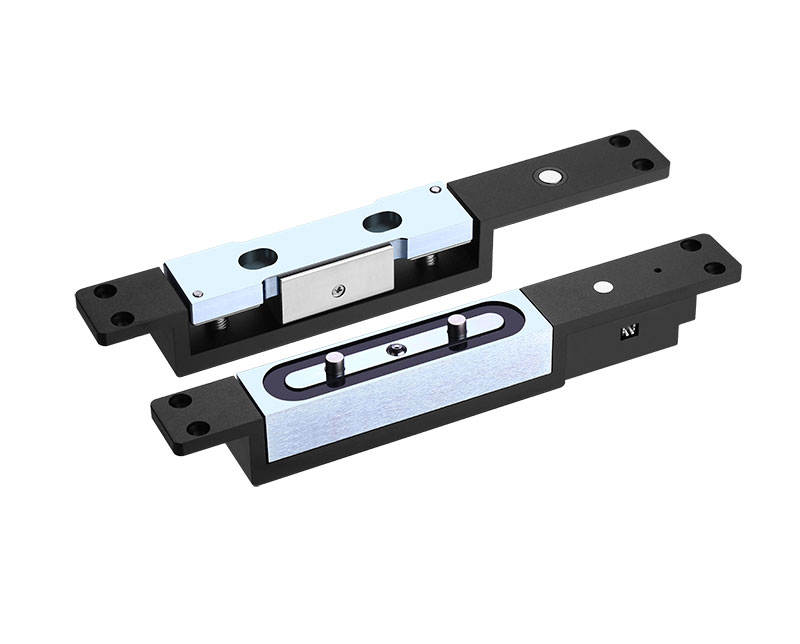

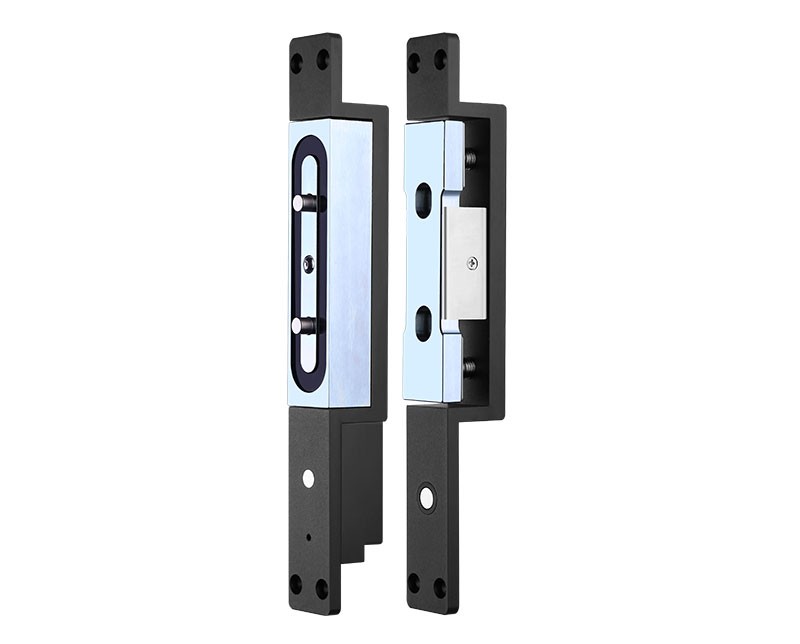

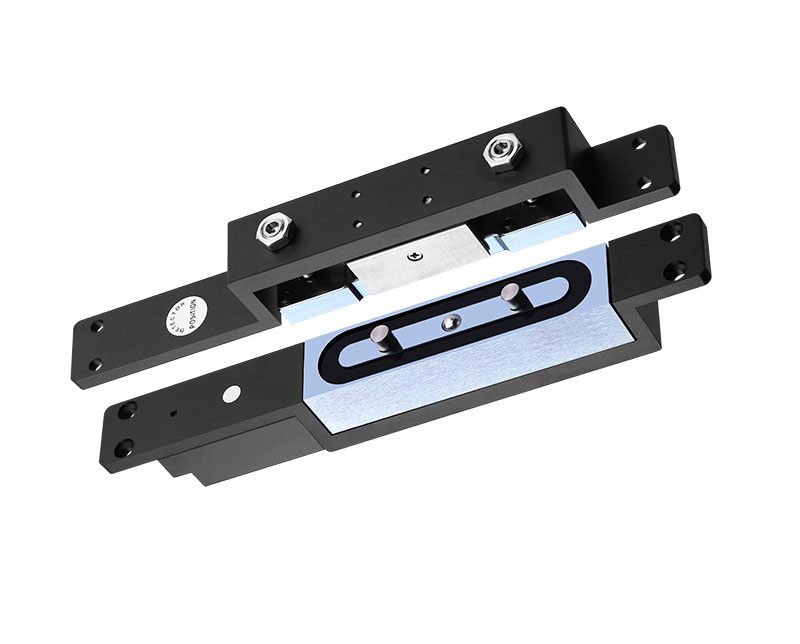

Electromagnetic/Shear lock -Concealed Mount:  ShearHolding force1200Kgs(2600Lbs), Door status output, Auto sensing12/24VDC input, Compact Mini design, Easy to install, Conceal mounted; Superior security and apperance, Suitable for: Hollow metal, Wooden, Glass, Aluminum and UPVC Door.

- High shear holding force up to 1200Kgs(2600Lbs), Maximum magnetic distance up to 5mm(@24V)
- Auto adjustable power supply 12V/24V, don't need manual operation.
- Microprocessor controlled, equipped with door opening delay and door sensor output functions
- Relock facility actuated by sensor up to 60 retries.
- Heavy duty electroless nickle plated magnet and armature.
- Compact, Strong and easy to install
- Suitable for single acting or swing through doors, especially the windy exterior door.
- Concealed Mount

• Working Voltage: 12/24VDC

• Shear Holding force: 1200Kgs(2600Lbs)

• Operation current: 12V/900mA(min); Holding current: 24V/220mA

• Lock Monitoring Output:  N.O. & N.C.

• Delay Time 0.5s-25s

• Max.Shear Holding force 1200kg(2600lbs)

• Magnetic Distance(Max.)  3.0mm & 12V /5.0mm & 24V

• Suitable for  Aluminum or wooden doors

• Installation: Concealed Mount;

• Operating Temp: 10~+55°C(14-131F)

• Suitable Humidity:  0~90%

• Dimension  Lock body: 257L*30W*33.5H(mm) ; Armature: 257L*30W*33.5H(mm)

Package Contents:

• Standard Exporting Packing Box
