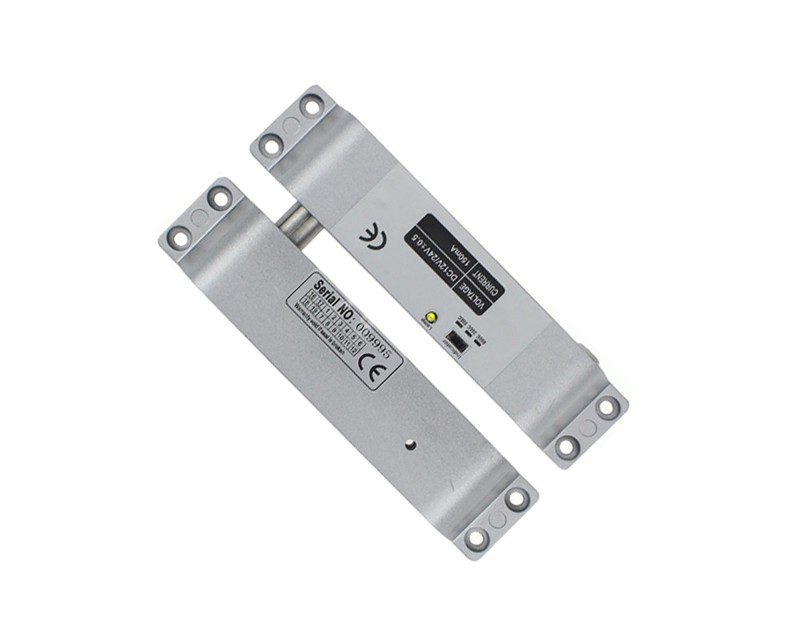

Multi-Angle View
Electric Bolt Lock: ZDL-230A

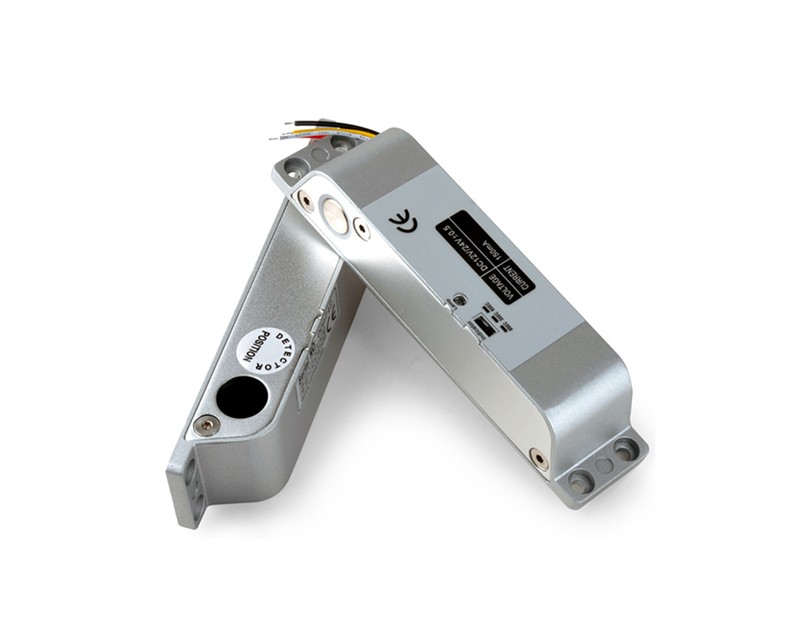

Multi-Angle View

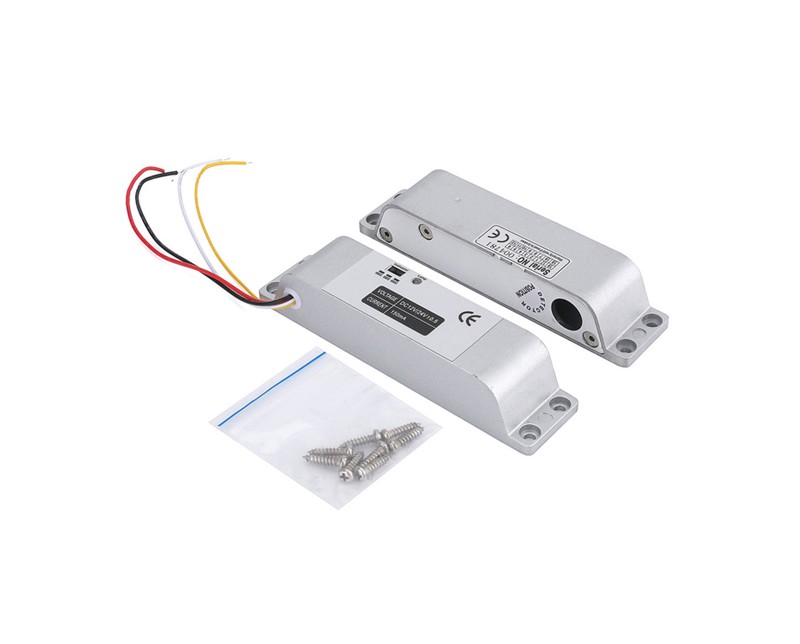

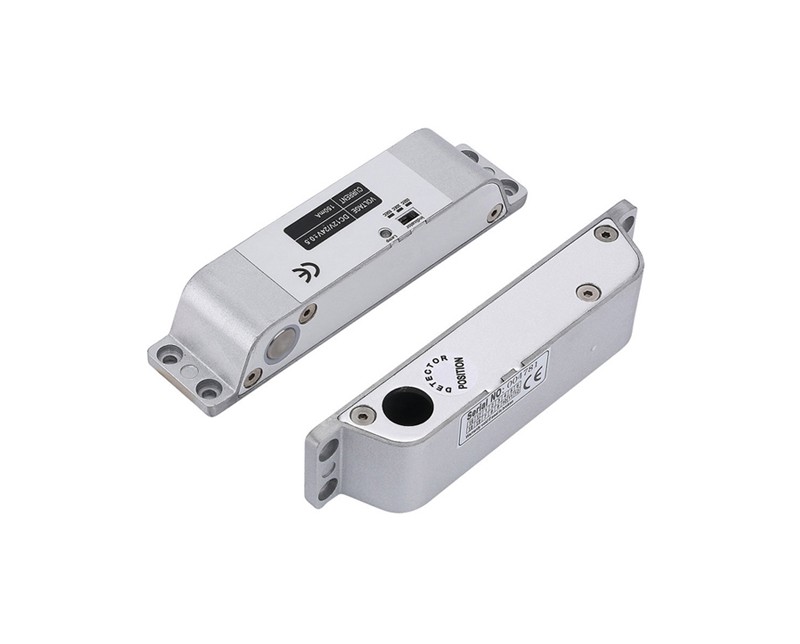

Multi-Angle View

Electric Bolt Lock -5 Wire

MODELZDL-230A

Facebook Twitter InLink instagram Youtube Skype
  • Surface mounted, no need to dig a hole on frame, Safe & Durable.

  • Lower power consumption, Enviromental protection

  • Auto-relock if no Action within 5 secs

  • Door status signal output contact (NO/COM)

  • Working Measure: power-on to lock.

  • Suitable for: Wooden Door,Glass Door,Metal Door,Fire Proof Door

Electric Bolt Lock: Zinc Alloy, Surface mounted, no need to dig a hole on frame. it's an all-metal construction electric bolt. The Fail Safe is locked when energized. Adopt high quality parts; Door status signal output contact (NC/NC/COM), Time delay setting; Lower power consumption, Safe & durable, Suitable for Wooden Door,Glass Door,Metal Door,Fire Proof Door.

- Surface mounted, no need to dig a hole on frame, Safe & Durable.
- Lower power consumption, Enviromental protection
- Auto-relock if no Action within 5 secs
- Door status signal output contact (NO/COM)
- Working Measure: power-on to lock.
- Suitable for: Wooden Door,Glass Door,Metal Door,Fire Proof Door

  • Input Voltage: DC12V

  • Working Current: 900mA; Static Current: 100mA.

  • Working Measure: Fail secure, unlock when energized.

  • Fail-safe type: Power to lock

  • Dimension: L150xW34xH28(mm)

  • Operating temp: -10~+25℃(14-131F)

  • Operating Humidity: 0~90%

  • Special Designed: Tested to 500000 cycles

  • Face place material:Zinc Alloy, Carrulous Line Finished

  • Packing Dimension: 24×9×4.5Cm, Weight: 0.6Kg


Package Contents:

  • Standard Exporting Packing Box
