Electromagnetic lock -Single Door: ZDL-350
Multi-Angle View

350KG Electromagnetic lock -Single Door

MODELZDL-350/350S/350T/350ST/350W

Facebook Twitter InLink instagram Youtube Skype
  • Input voltage:DC12V, or DC24(can be customized)

  • Holding Force: 350Kg(800Lbs)

  • Instant release, no hysteresis

  • No residual magnetism Designed

  • High Strength Material, Anodized Aluminum Housing.

  • Design without Mechanical Failure.

  • Suitable For Wooden Door,Glass Door,Metal Door,Fireproof Door.


Electromagnetic lock -Single Door:   350kg(800Lbs), DC12V, or DC24, Suitable for: Wooden Door, glass door, wooden door, fireproof door, sliding door and metal door.


- Optional Lock Model No.:

* "S" series Lock Model: 5 wires With door state detection signal(NO/NC/COM) output function
- ZDL-350S: 350kgs(800Lbs)

"T" Series Lock Model: 4 wires with delay setting(0-20 seconds adjustable)
- ZDL-350T: 350kgs(800Lbs)

* "ST" Series Lock Model: 5 wires with Signal output(NO/NC/COM) + Time Delay(0-20 seconds adjustable)
- ZDL-350ST: 350kgs(800Lbs)


* "W" Series Lock Model: with waterproof
- ZDL-350W: 350kgs(600Lbs)



- Input voltage:DC12V, or DC24 (can be customized)

- Holding Force: 350kg(800Lbs)
- With door state detection signal output function, for applications that require real-time monitoring of entrance door switch state occasions;  NO /NC /COM, NO output when locking and unlocking the NC output
- With adjustable delay locked 0-20 seconds
- Bi-color LED to achieve opening and closing status display
- Fail-safe type (Power to lock): Power-on to lock, Power-off to open).
- Suitable for: Wooden door , Glass door ,Metal door , Fireproof door
- Finishes for Shell: Anodized aluninum
- Finishes for Magnetic: Zinc
- Finishes for Armature: Zinc

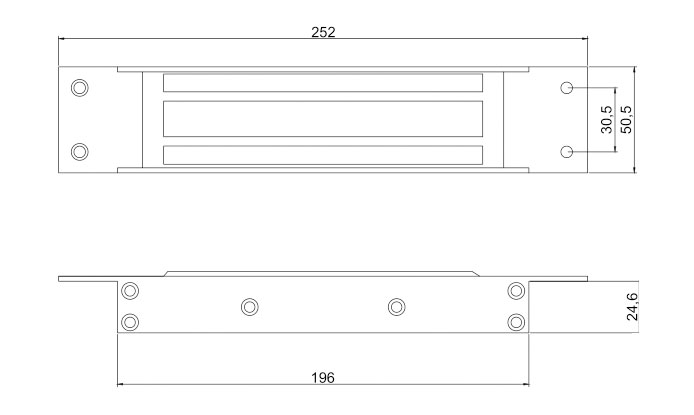

Electromagnetic lock -Single Door(图2)


  • Voltage: 12/24VDC+10%

  • Power consumption: 12V/320mA; 24V/250mA(customizable)

  • Signal output:NO /NC /COM, NO output when locking and unlocking the NC output

  • Red indicates the door is unlock,Green indicates the door is lock

  • Delay time: 0~9 seconds

  • Surface Temp: ≤+20°C

  • Operating Temp: 10~+55°C(14-131F)

  • Suitable Humidity:  0~90%

  • Dimension:240×56×29mm(Body); 160×44×11mm(Magnet)

  • Packing size: 26.5*6.5*6cm, Weight: 2.1Kgs

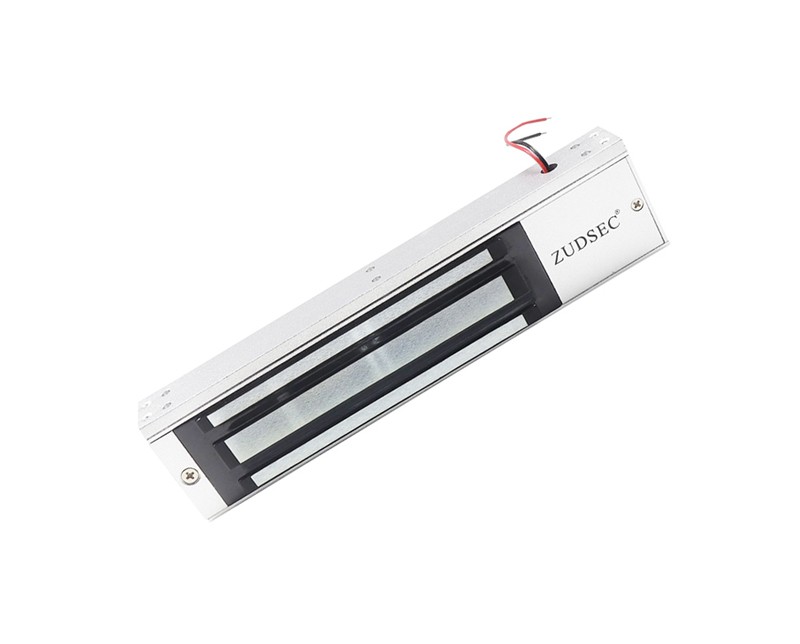

350KG Electromagnetic lock -Single Door(图1)

Package Contents:

  • Standard Exporting Packing Box
