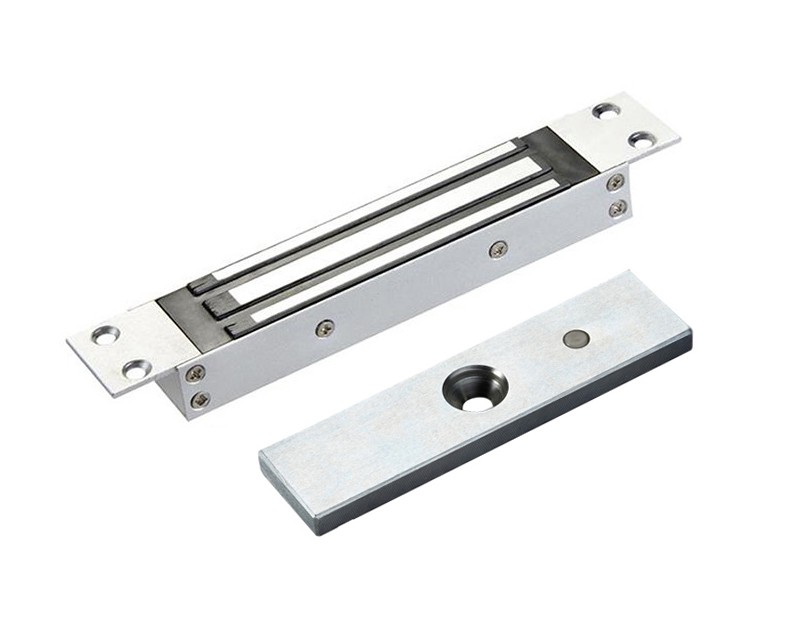

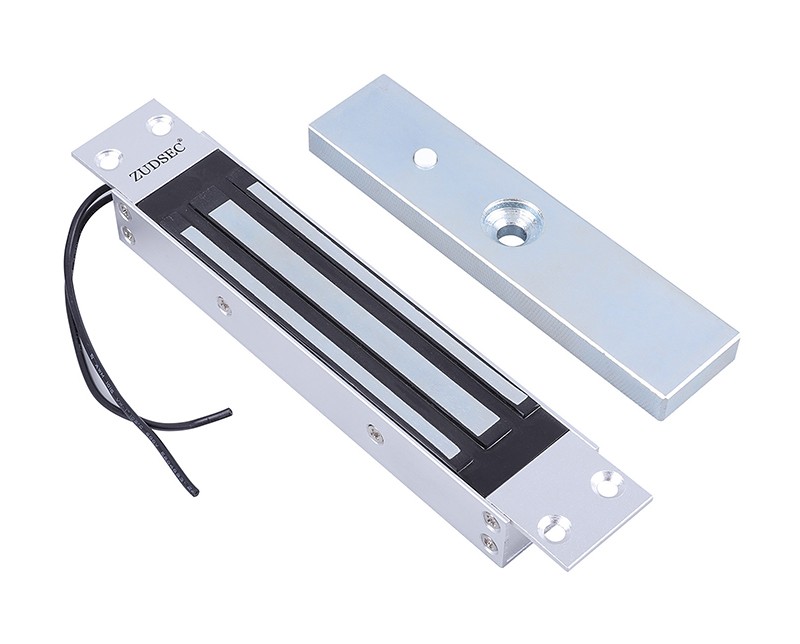

Electromagnetic lock -Concealed Mount:  Concealed mount with Frame, IP68 Waterproof design,180Kgs(300Lbs) / 280kgs(600Lbs) / 350Kgs(800Lbs), DC12V, or DC24, Lock with frame, Suitable for: Wooden Door,Glass Door,Metal Door,Fire Proof Door, small size door, It is equipped with easy installation and mortise mount design.

- Optional Electromagnetic Lock Model No.:

* Normal type Lock Model:

ZDL-180CF: 180Kgs(300Lbs)

ZDL-280CF: 280kgs(600Lbs)

ZDL-350CF: 350kgs(800Lbs)

* "S" series Lock Model: 4 wires With door state detection signal output function.

- ZDL-180CFS: 180Kgs(300Lbs)

- ZDL-280CFS: 280kgs(600Lbs)

- ZDL-350CFS: 350kgs(800Lbs)

- Input voltage：DC12V、or DC24 (can be customized)

- IP68 Waterproof design

- Concealed mount with frame

- Fail-safe type (Power to lock): Power-on to lock, Power-off to open).
- Suitable for: Wooden door , Glass door ,Metal door , Fireproof door
- Finishes for Shell: Anodized aluninum
- Finishes for Magnetic: Zinc
- Finishes for Armature: Zinc
- Concealed Mount

• Installation: Concealed Mount;

• Voltage: 12/24VDC+10%

• Power consumption: 12V/320mA; 24V/250mA(customizable)


• Detect signal of door state: The limit of reed switch and dry contact is 0.5A/30VDC, don't overload(NO/COM)


• Surface Temp: ≤+20°C

• Operating Temp: 10~+55°C(14-131F)

• Suitable Humidity:  0~90%

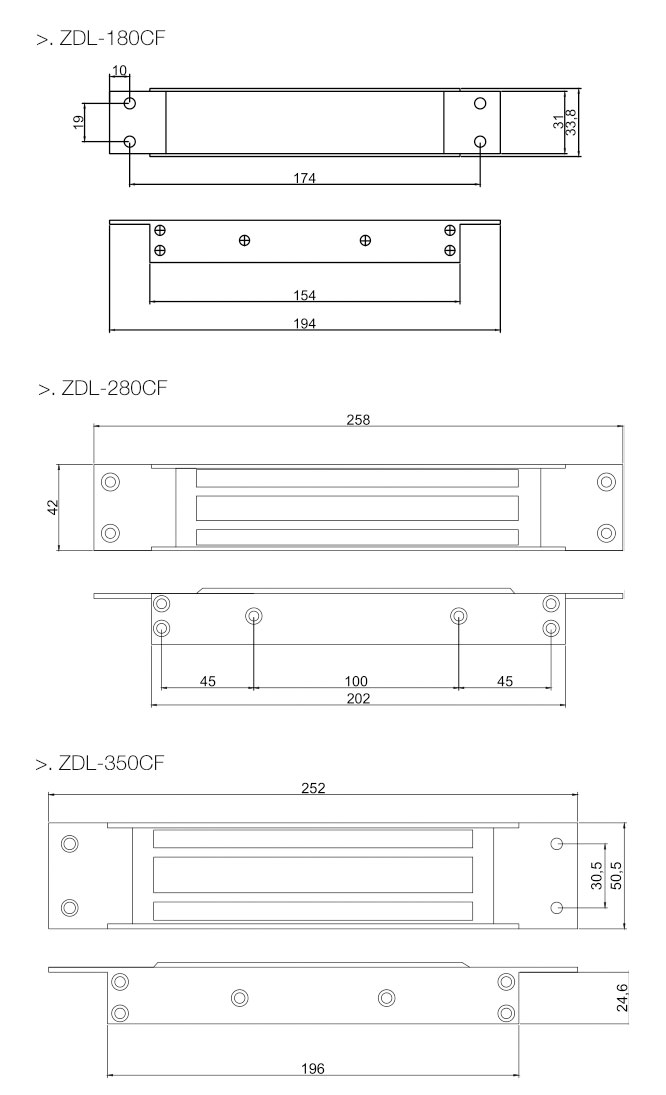

• ZDL-180C:
  Dimension：193×33×23mm(Body); 140×33×11mm(Magnet)
  Packing: 22.3*8*3cm, Weight: 0.95Kgs
  ZDL-280C:
  Dimension：258×42×27mm(Body); 183×38×12mm(Magnet)
  Packing size: 27*6.5*6.5cm, Weight: 1.7Kgs
  ZDL-350C:
  Dimension：252×50.5×29mm(Body); 160×44×11mm(Magnet);

       Packing size: 26.5*6.5*6cm, Weight: 2.1Kgs

Package Contents:

• Standard Exporting Packing Box
