Outdoor Flash Siren: ZDSH-109

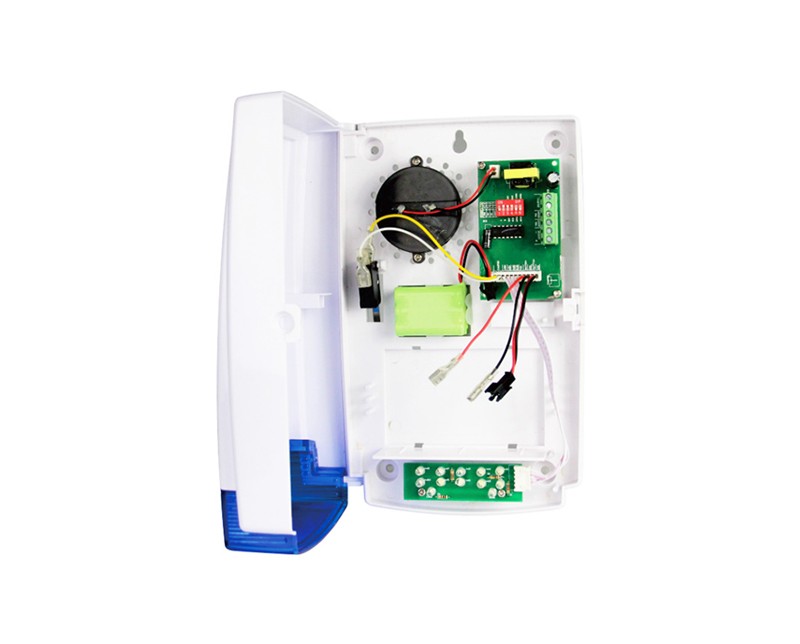

Inner Structure

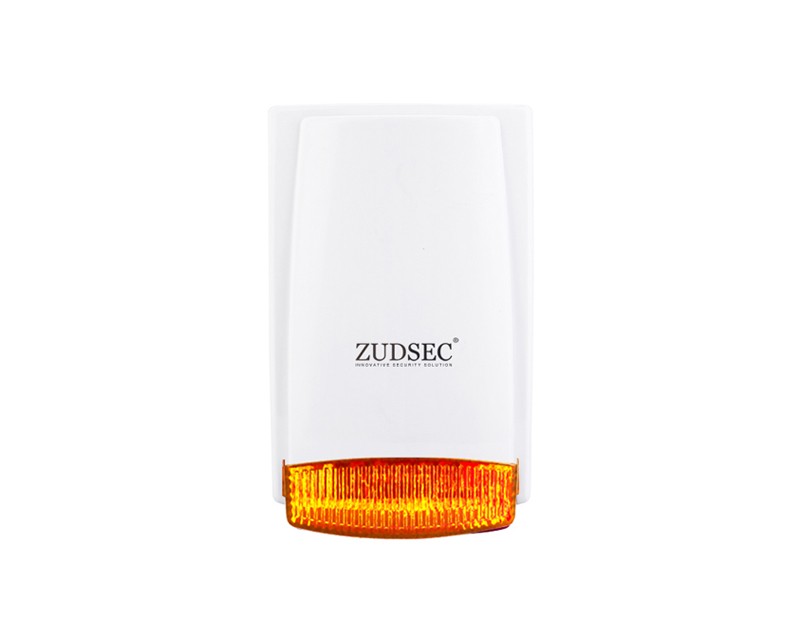

Lens Color: Orange

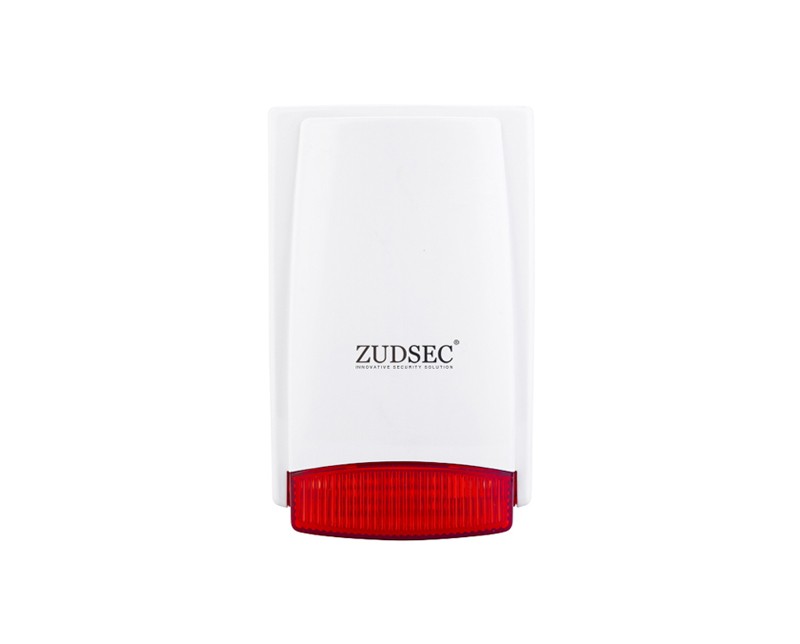

Lens Color: Red

Battery Backup Outdoor Flash Siren

MODELZDSH-109

Facebook Twitter InLink instagram Youtube Skype
  • Waterproof design, High resistant PC housing, UV prevention

  • DB Value: 115DB±3dB at 1M

  • Single Piezo sounders

  • 2 way tamper switch protection

  • Battery backup

  • Piercing siren sound with high-visibility xenon strobe flashes.

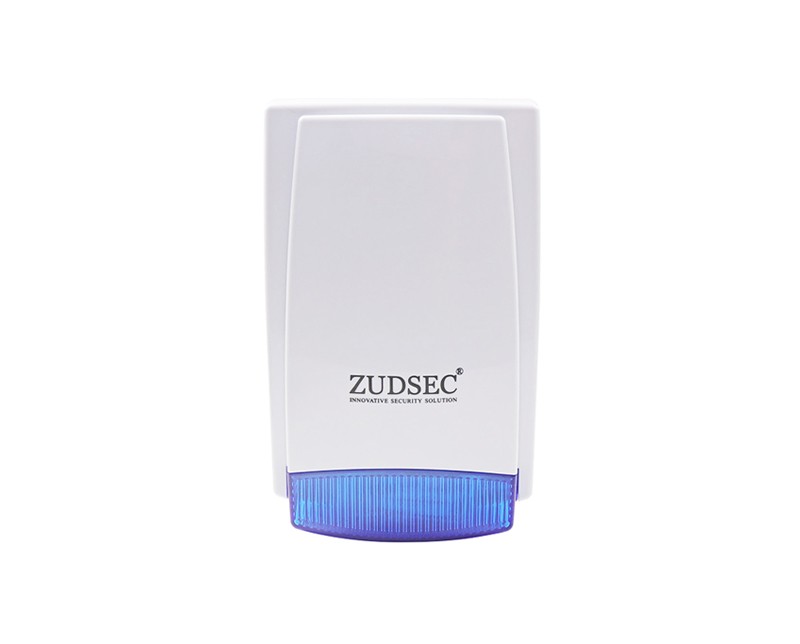

  • Lens: blue, red colors selectable

Battery Backup Outdoor Flash Siren:  115dB with 2 way built-in tamper switch, metal inner box protection and Anti-cutting line function; It connects with control panel and gives off strong strobe light with high siren volume to scare away the intruders once the detector is triggered.

- With waterproof design, High resistant PC housing, UV prevention
- Twin Piezo sounders with 115DB at 1M
- Twin or single sounders selectable.
- SAB/SCB function available
- 2 way tamper switch protection
- Positive/negative siren trigger
- Positive/negative flash trigger
- Battery backup
- Piercing siren sound with high-visibility xenon strobe flashes.
- Lens: blue, red and orange colors selectable


  • Siren Volume: 115dB±3dB

  • Alarm Timer: 1M, 3M, 15M, Continous

  • Mateerial: PC Housing with UV resistance

  • IP Rating: IP65

  • Working voltage: DC-12~15V;  Related Current: 380mA@DC13.5V

  • Backup Battery: 7.2V, 500mA Ni-MH rechargeable battery

  • Operating Temperature Range: -10℃ to +50℃

  • Dimensions: 250X155X65mm ; Packing: 310*220*75mm, Weight: 1kg


Package Contents:

  • Standard Exporting Packing Box
