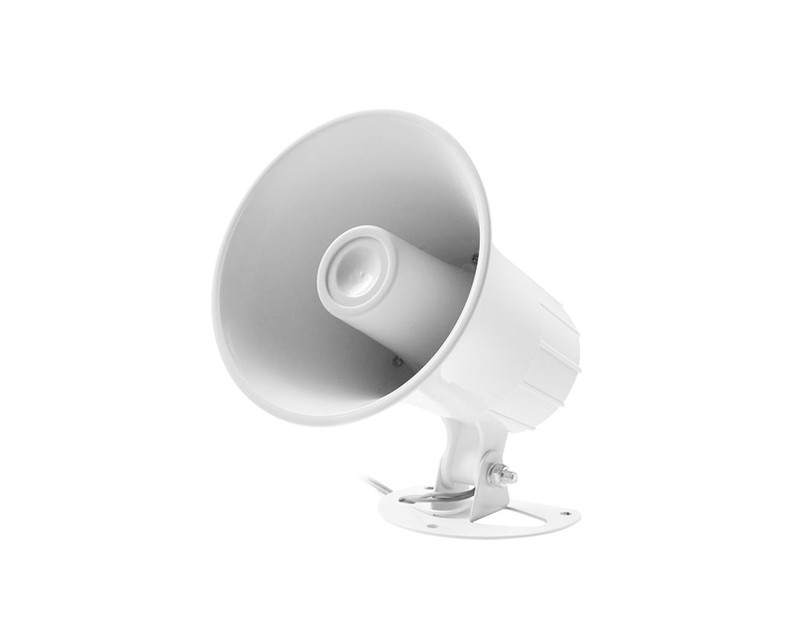

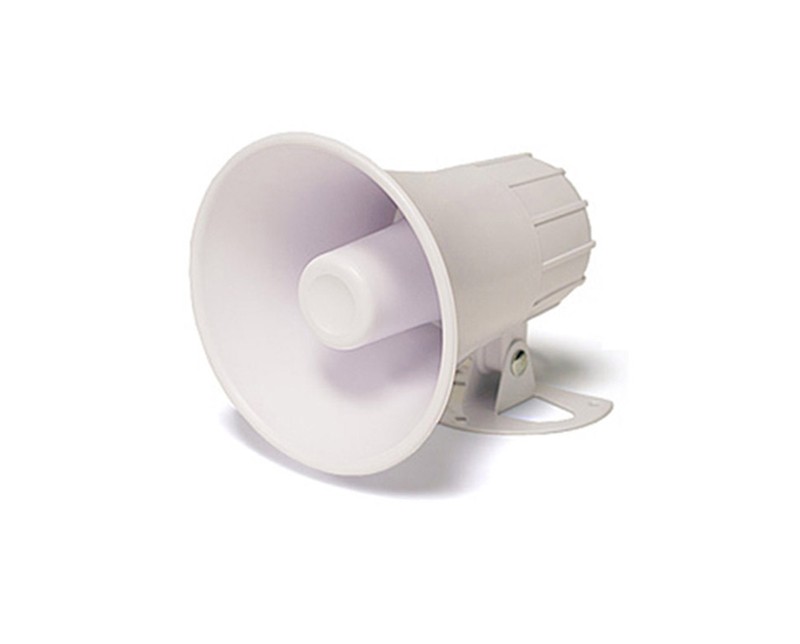

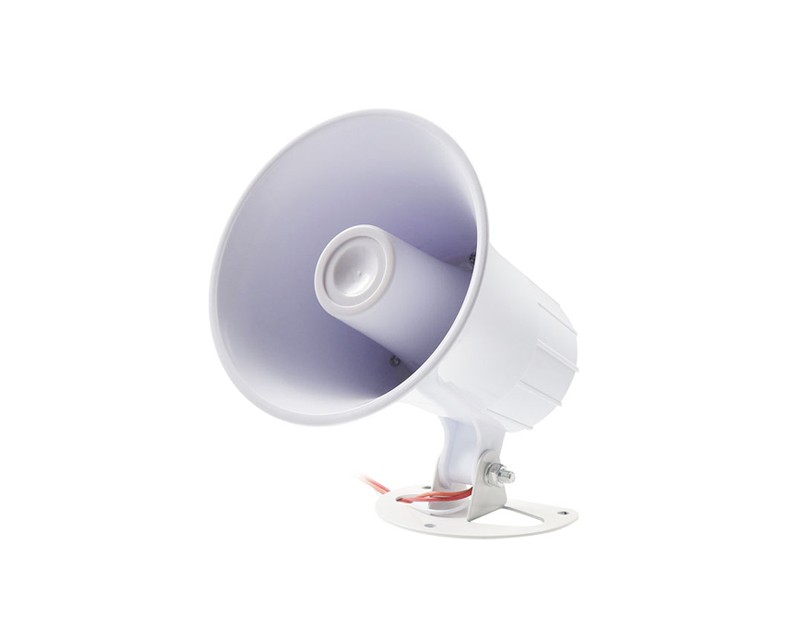

Electronic siren: ZDSH-106
Multi-Angle View

Electronic siren

MODELZDSH-106

Facebook Twitter InLink instagram Youtube Skype
  • Rated Power: 15W; Impedance: 8 OHMS

  • SPL DB/1M: 115±3

  • Tone: 1 Tone/Dual Tone

  • Rated voltage: 12VDC

  • Color: White


Electronic siren:  with 115dB speaker, 12VDC, It can scare away of the theft. it is used for enlarging the volume of the alarm main device

- Wired horn siren with 115dB speaker, 12VDC, Connect with the alarm control panel.

  • Rated voltage: 12VDC, Rated current: 600mA

  • Rated Power: 15W; Impedance: 8 OHMS

  • SPL DB/1M: 115±3dB

  • Tone: 1 Tone/Dual Tone

  • Wiring:  Yellow wire(+): Steady;   White wire(-): Common;  Red wire (+): Yelp

  • Color: White

  • Product Size: 150L X 132W X 132Hmm;  Packing size: 155 X 140 X145mm
    Gross Weight: 0.7kg


Package Contents:

  • Standard Exporting Packing Box
