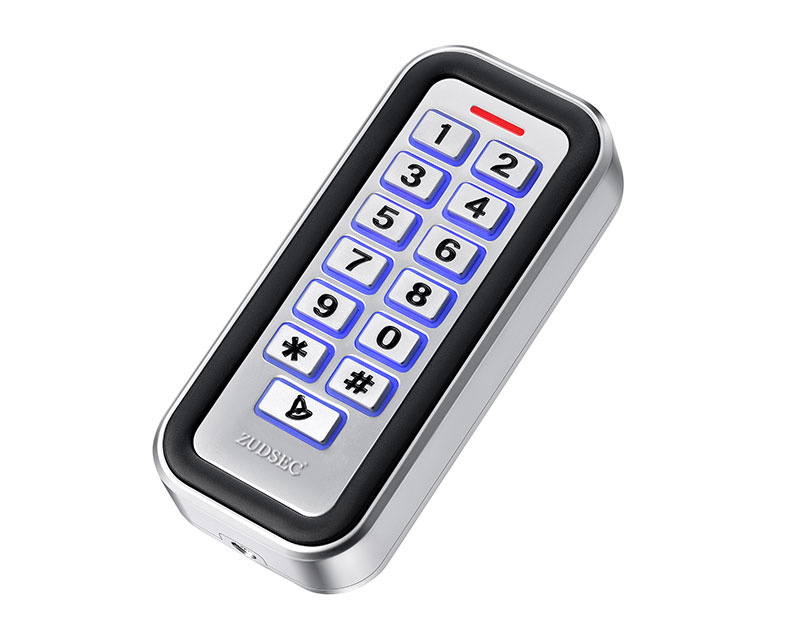

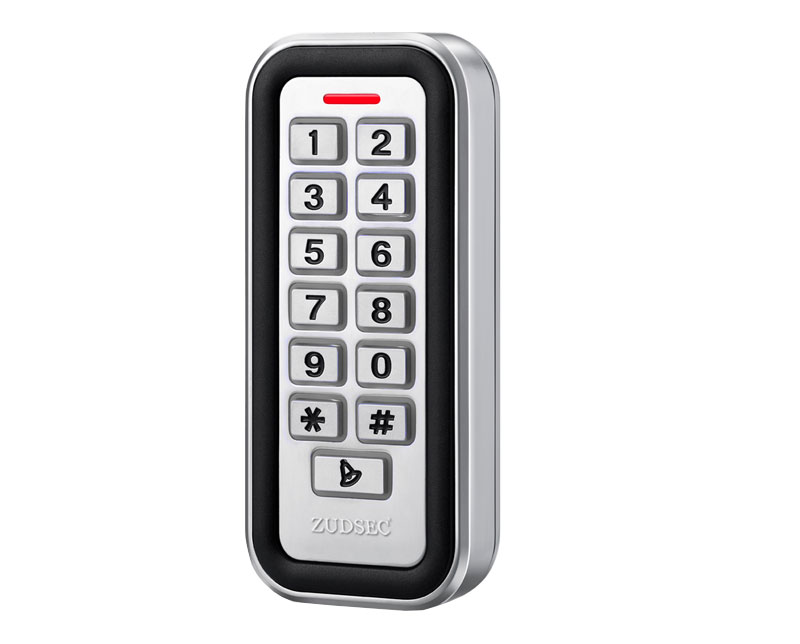

Waterproof Metal Keypad Access Control: The ZDAC-2800W uses the latest microprocessor technology to operate door strikes and security systems that require a momentary (timed) or latching dry contact closure. All programming is done through the keypad. Codes and operating parameters are stored within the microprocessor and can not be lost due to power failure.

The ZDAC-2800W can store 2000 prox cards and user 4~6 digit password codes; Three access way: Card, Pin, Card+Pin, Backligh keypad, WG26 input & output, with doorbell button to connect with wired doorbell The unit has one relay output with 3 Amp changeover contact.

- Exquisite designs with non-masking Metal shell: Metal case, anti-vandal
- IP68 Waterproof design, Keystroke backlight

- 2000 users, supports 3 accesses: pin,card,pin+card

- Card appliance: 125kHz EM ID cards
- Reading range: up to 5 cm
- Master cards are available

- Door relay mode, Door relay time 00-99 seconds
- Wiring Connections: Electric Lock, External Bell,  External Push Switch, Magnetic Contacts

- 3 working modes: Standalone access control mode,Reader mode.

- WG26 Output/Input

- Application: luxurious office building, bank, Prisons

Package Contents:

• Standard Exporting Packing Box
