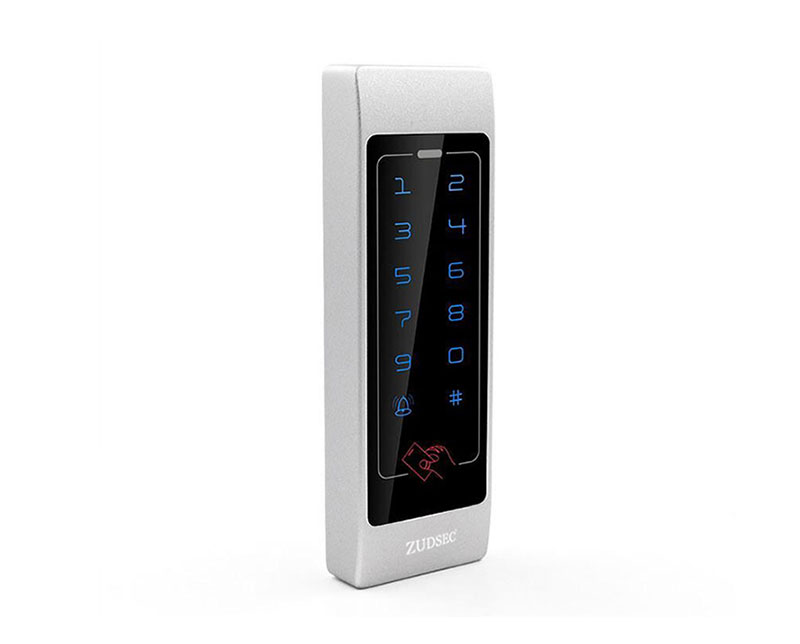

Standalone Access Controller -Metal Shell: The ZDAC-2400W uses the latest microprocessor technology to operate door strikes and security systems that require a momentary (timed) or latching dry contact closure. All programming is done through the keypad. Codes and operating parameters are stored within the microprocessor and can not be lost due to power failure.

The ZDAC-2400W can store 2000 prox cards and user 4~6 digit password codes; Three access way: Card, Pin, Card+Pin, Backligh keypad, WG26 input & output, with doorbell button to connect with wired doorbell The unit has one relay output with 3 Amp changeover contact.

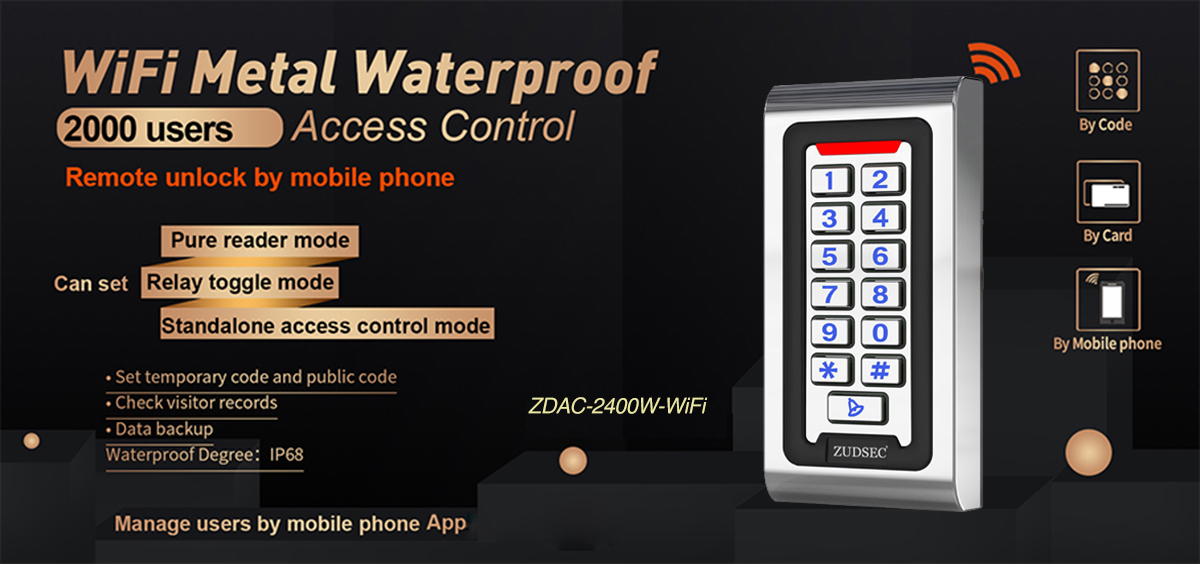

- Optional model: ZDAC-2400W-WiFi (with APP remote control)

- Exquisite designs with non-masking Metal shell: Metal shell + Silica gel button(Metal button optional)
- Keystroke backlight
- Card appliance: 125kHz EM ID cards
- Reading range: up to 5 cm
- Change Codes 1 master,2000 users & prox cards
- Door open detection
- Door relay time 00-99 seconds; Alarm time 00-99 minutes
- Wiring Connections: Electric Lock, External Bell,  External Push Switch, Magnetic Contacts
- Alarm function
- Non volatile Eeprom memory
- Application: luxurious office building, bank, Prisons

Package Contents:

• Standard Exporting Packing Box
