Standalone Access Control: ZDAC-236C
Multi-Angle ViewAccess Controller
SMulti-Angle View
Multi-Angle View

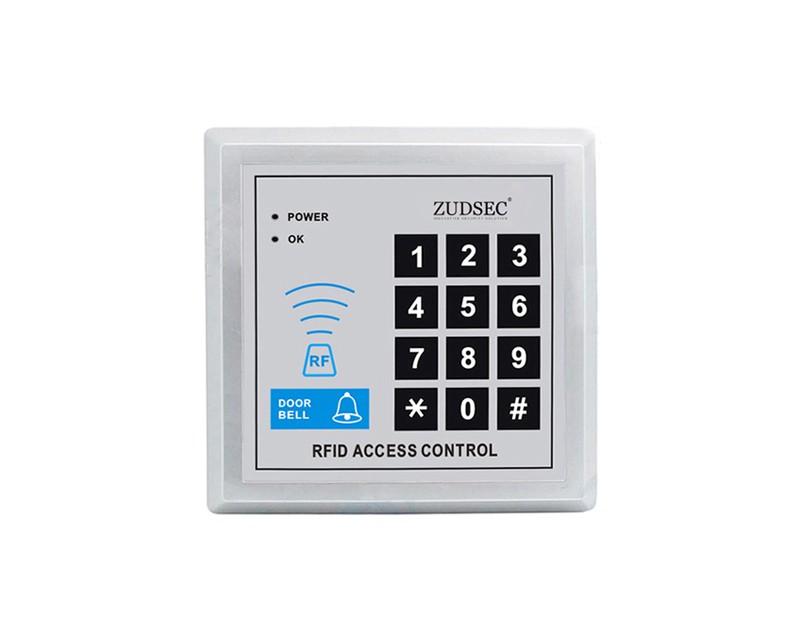

Standalone Access Controller

MODELZDAC-236C

Facebook Twitter InLink instagram Youtube Skype
  • Availability capability of card: 500 users
  • Open modes:Card,Card+ PIN, PIN
  • Card Type: EM ID
  • With Doorbell Key
  • Application: Office building,Community, Apartment,Government,Bank,etc


Standalone Access Controller: This Radio Frequency Identification (RFID) access controller is the 3rd generation controller. With newly added functions it is one of the most advanced standalone access controller. The controller is built on powerful modern Central Processing Unit. It manages up to 500 card holders, and access mode can be set to Authorized Card Only, Authorized Card or Public PIN and Authorized Card + Personal PIN.


Additional functions includes: door sensor input, alarm relay output, safe mode and anti-break. Door bell, exit button and electric locks can be connected to the controller. When users forget the programming password, they can restore the factory default password without erasing the card holders' information. It is ideal for different occasions such as business apartment, governmental, factory buildings and so on.


- Support EM-ID/Mifare or Password Mode
Build-in access control card reader and kepad Manage
- Operating Mode: Proximity Card or Password or Card + Password.

Model

ZDAC-236C

 Capacity 500 cards, each with a Personal PIN. one Public PIN
 Reading Distance 10~20CM
 Compatible Cards EM ID Card or EM compatible cards
 Relay output Alarm: 100mA     Lock: 5A
 Voltage 12VDC+10%; Current 0.1A
 Temperature -20℃~60℃
 Humidity 20%~90%
 Dimension 116mm x 116mm x 20mm
 Weight 180g


Packing size: 14*14*3CM, Gross weight: 0.2Kg/Pc


Package Contents:

  • Standard Exporting Packing Box
