Wired Magnetic Door Sensor -Surface Mount: ABS (Plastic Design), Ideal for metal door/ window, for commercial applications and where a wide gap is needed.

- Optional model:  ZDD-423MM (ZINC-Alloy material)

-

- Detecting door gap by opening
- Connecting mode: N.C. (N.O.& changeover  available)
- Installation: install outwardly

• Operating distance(Gap): 40~50mm

• Housing:  ABS fireproof Casing Material (ZINC-Alloy material is optional

• Color: grey

• Installation: install outwardly

• Max CUr./Vol./Power/Init.Ress(A/VDC/W/mΩ): 0.5A/100V/10W/200mΩ

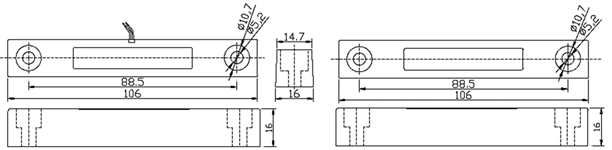

• Product Size: L106*W16*H16mm, Weight: 0.18kg/pc(Plastic)

• Package:
  Inner packing:  5set/bag,
  Outer packing:  50sets/carton
  Gross Weight:  12Kgs/ctn

Package Contents:

• Standard Exporting Packing Box
