Electric Hook Bolt Lock for Sliding Door: ZDL-240KM

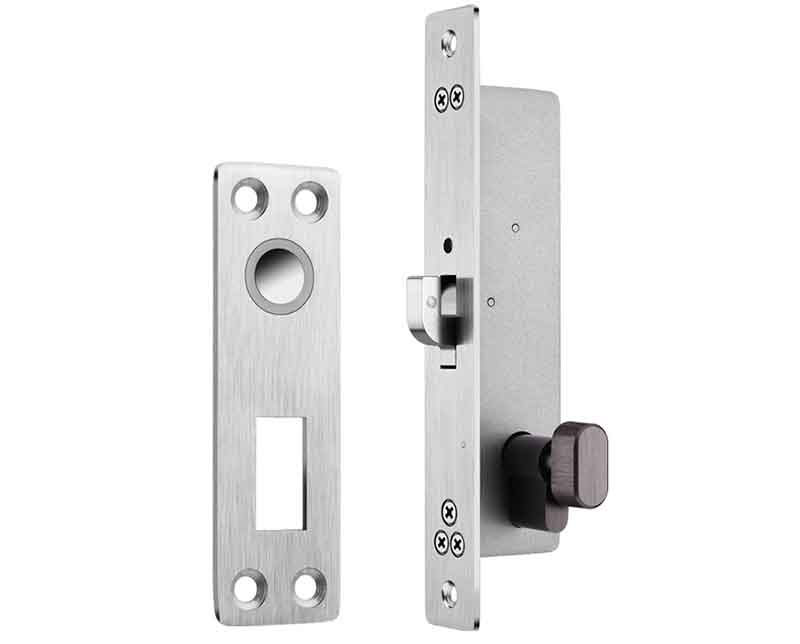

Multi-Angle View

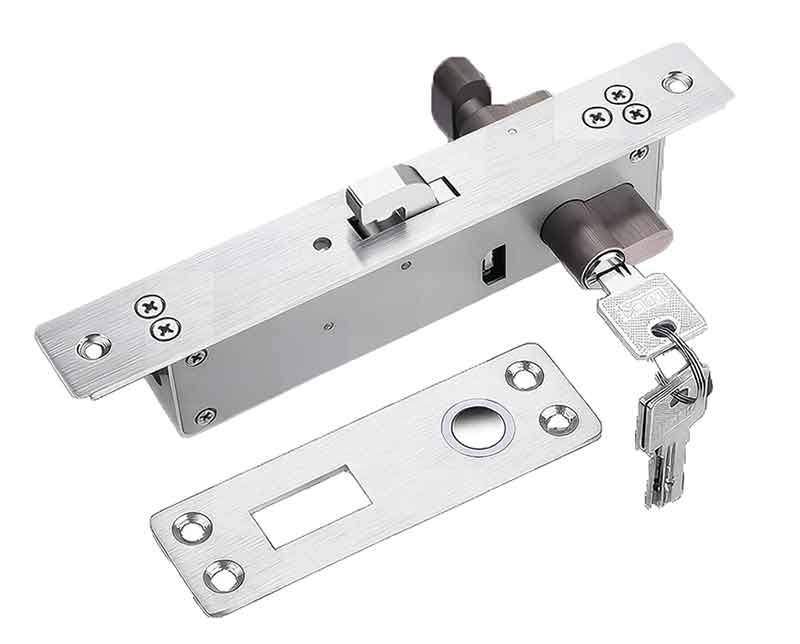

Electric Hook Bolt Lock for Sliding Door

MODELZDL-240KM

Facebook Twitter InLink instagram Youtube Skype
  • Low Temperature, Safe & Durable.

  • Driven by a motor for silent locking and unlocking

  • With a mechanical key for emergency unlocking

  • With anti-prying function

  • Long Life  with 500000 Operations.

  • Specifically designed for Sliding Door

Electric Hook Bolt Lock for Sliding Door:: ZudSec ZDL-240KM is a specifically designed for sliding door, the unlocking and locking are driven by a motor, achieving a quiet effect. In case of emergency after power failure, it can be unlocked with a mechanical key. The bolt is made of solid steel, special high security design of anti-prying function after locking, and all the linkage parts are made of metal structure. Professional durable solenoid valve, excellent performance, safe and durable.


- Embedded swing arm (hook) motor lock, Low Temperature, safe & durable.

- Full solid stainless steel lock and lock body,durable;

- Both electric control & manual control, with a mechanical key for emergency unlocking

- 500,000 times successful test

- Unlocking signal (shorting the negative pole for unlocking or short the positive pole for unlocking)

- Lock core with anti prying function design

- Feedback signal for door magnetic and lock cylinder detection

- Equipped with LED work indicator light (red light for locking, green light for unlocking)

- Designed specifically for sliding door, this motorized electric lock features a silent motor to ensure smooth and quiet locking/unlocking.


ModelZDL-240KM
Feature

Driven by a motor for silent locking and unlocking

Materialstainless steel
Lock cylinder size

Arm diameter 12, Extension length 16mm (hook lock core 24L*9W*8H)

VoltageDC12V+10%
Start Current0.3A
Suitable ForPerfect for sliding door
Signal OutputDoor Status Signal output: NO/COM
Surface TempLow Temperature
Mechanical LifeTested to 500000 cycles
Size

Lock body size: 215L*30W*39H;   Embedded size: 164L*26W*36.5H

Weight1.0kg


Package Contents:

  • Standard Exporting Packing Box
