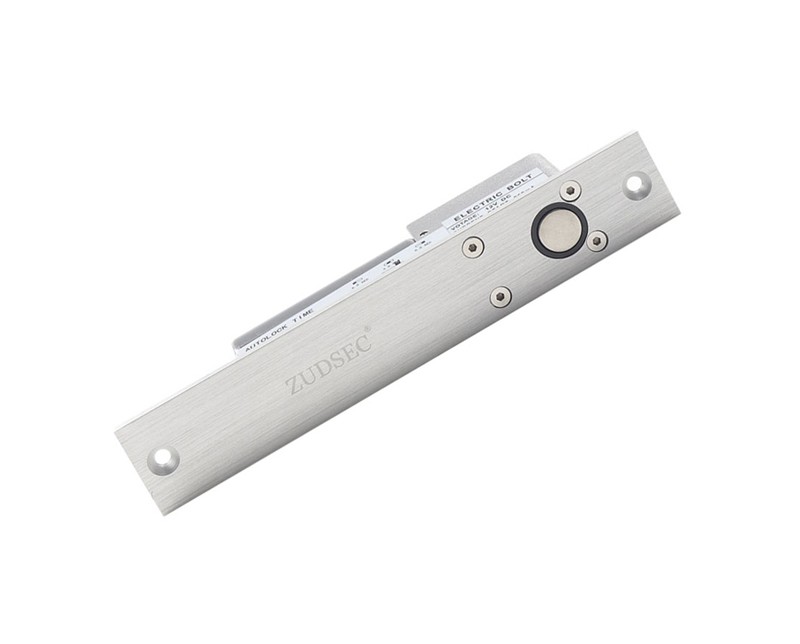

Electric Bolt Lock -5 Wire: Adopt high quality parts, Superier low temperature design; Door status signal output contact (NC/NC/COM), Time delay setting; Lower power consumption, Safe & durable, Suitable for Wooden Door,Glass Door,Metal Door,Fire Proof Door

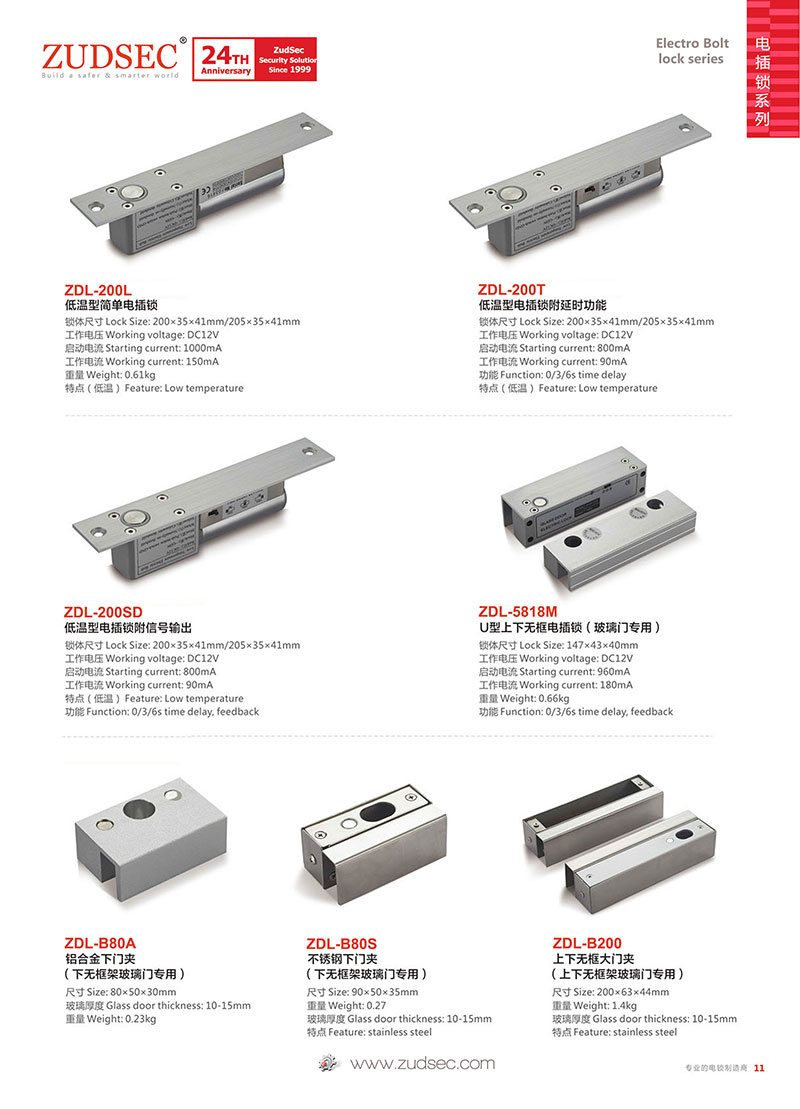

Optional model:
ZDL-200:       2 Wire with  Normal Temperature
ZDL-200L:     2 Wire with  Low Temperature
ZDL-200T:     2 Wire with Low Temperature & Time Delay

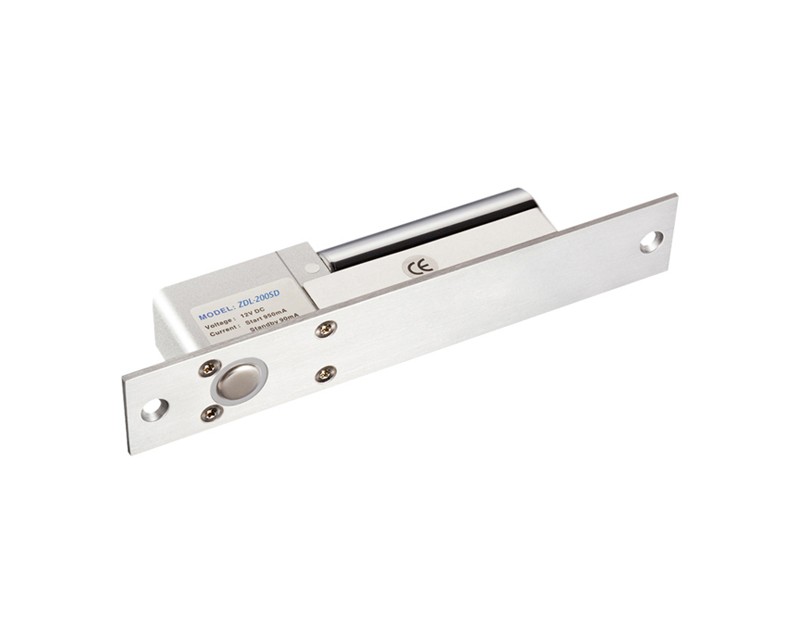

ZDL-200SD:  5 Wire with Low Temperature, Signal & Time

- Superier low temperature, Time delay design
- Lower power consumption, Enviromental protection
- Auto-relock if no Action within 5 secs
- Door status signal output contact (NC/NC/COM)
- Safe & durable.
- Working Measure: power-on to lock.
- Suitable for: Wooden Door,Glass Door,Metal Door,Fire Proof Door

• Input Voltage: DC12V

• Working Current: 900mA; Static Current: 100mA.

• Working Measure: Fail safe, Locked when energized.

• Fail-safe type:: Power to lock

• Coil type: Continuous working

• Solid Bolt: polishing housing, 800Kg Holding Force

• Surface Temp: Low Temperature

• Induction Distance:8mm

• Dimension: Face Plate: 205Lx35WX40H(mm)

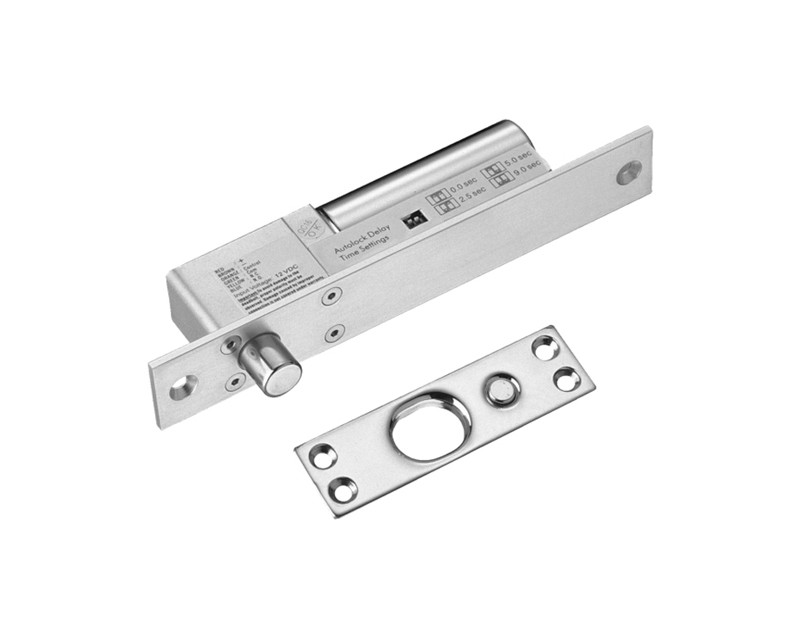

                     Strike: 90Lx25Wx2H(mm)
                     Bolt diameter: 16mm;  Bolt length: 16mm

• Operating temp:  -10~+55°C(14-131F)

• Operating Humidity: 0~90%

• Special Designed: Tested to 500000 cycles

• Face place material：High Aluminum, Carrulous Line Finished

• Packing Dimension：
  Lock: ZDL-200: 24×9×4.5Cm, Weight: 0.6Kg
           ZDL-200SD: 26.5*6.5*5.8cm, Weight 0.8kg
  Bracket : ZDL-B80A: 80*50*30mm; 0.16kg/pc
                 ZDL-B80S: 80×50×30mm
                 ZDL-B200: UP- 200x55x47(cm); Down-205x55x47(cm)

Package Contents:

• Standard Exporting Packing Box
