Multi-Angle View
Wall Mount Door Holder: ZDDH-009

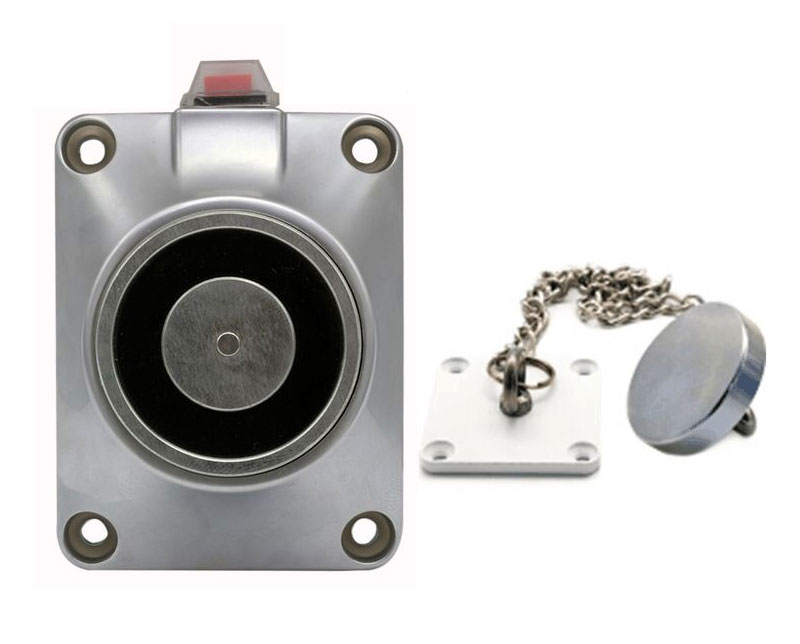

With Extended Chain
Multi-Angle View
Multi-Angle View

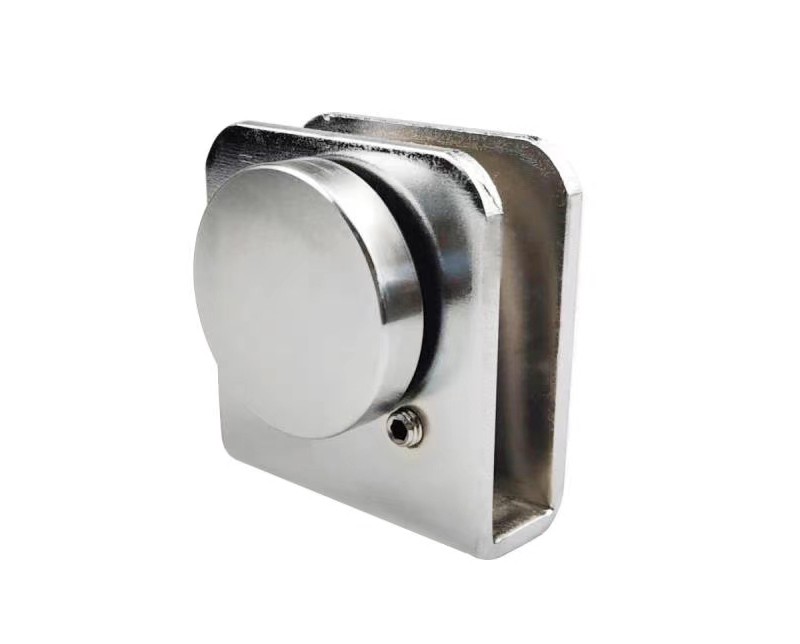

For Glass Door

Wall Mount Door Holder

MODELZDDH-009

Facebook Twitter InLink instagram Youtube Skype
  • Dual Voltage 12/24VDC(Adjustable)

  • Fail Safe Security settings

  • Holding Force: 60kg(120Lbs)

  • Emergency release button or Testing button.

  • MOV provides Reverse current protection

  • Anti-Residual Magnetism Design

  • Suitable for: All Kind of the Single & Double Smokeproof Door

Basic Wall Mount Door Holder: Adopts low power consumption, that makes it more environment friendly and more durable. The Holding Force(Collinear Load) is 60kg(120Lbs)Professional anti-residual magnetism design ensures highest security. Automatically close the smoke proof door when fire happens. It also contains build-out release button for testing and build-in MOV which reverse current protection.



            Wall Mount Door Holder(图1)

- Dual Voltage 12/24VDC(Adjustable)
- MOV provides Reverse current protection.
- Emergency release button or Testing button.
- Anti-Residual Magnetism Design

- Wall Mounted
- Low-Power design
- Fail Safe Security settings
- Durable operation


  • Holding Force: 60kg(120Lbs)

  • Input Vatage: 12/24VDC

  • Current Draw:  DC12V/170mA or DC24V/85mA

  • Suitable for:   All Kind of the Single & Double Smokeproof Door

  • Finishes for Shell High temperature paint and Environmental protection zinc

  • Finishes for Armature Zinc

  • Environment humidity: ≤ 95% RH (no congelation);

  • Operating temp. :-10 to +50°

  • Dimensions: 80Lx70Wx43Hmm; Gross Weight: 1kg

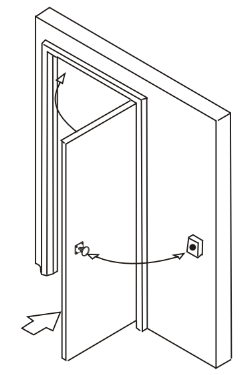

Installation:


Basic Wall Mount Door Holder(图1)


Package Contents:

  • Standard Exporting Packing Box
