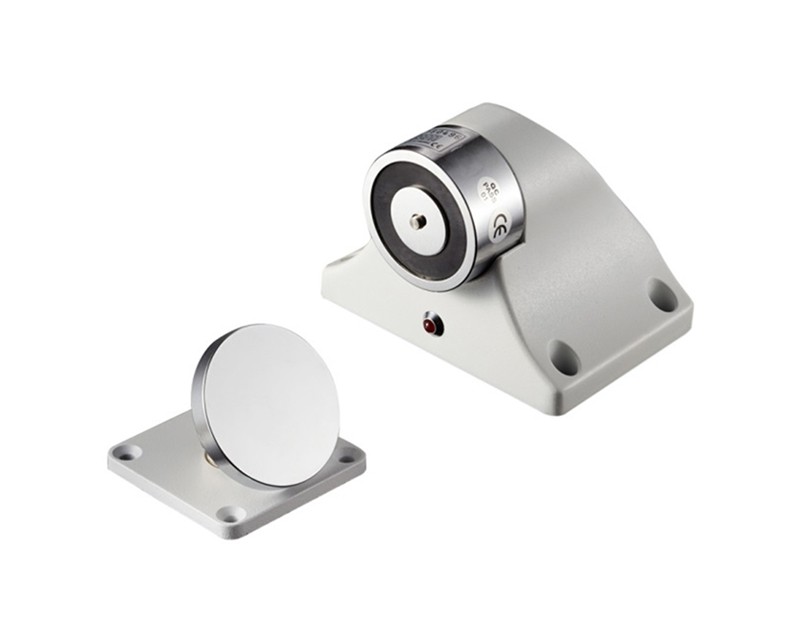

Floor Mount Door Holder: ZDDH-008A

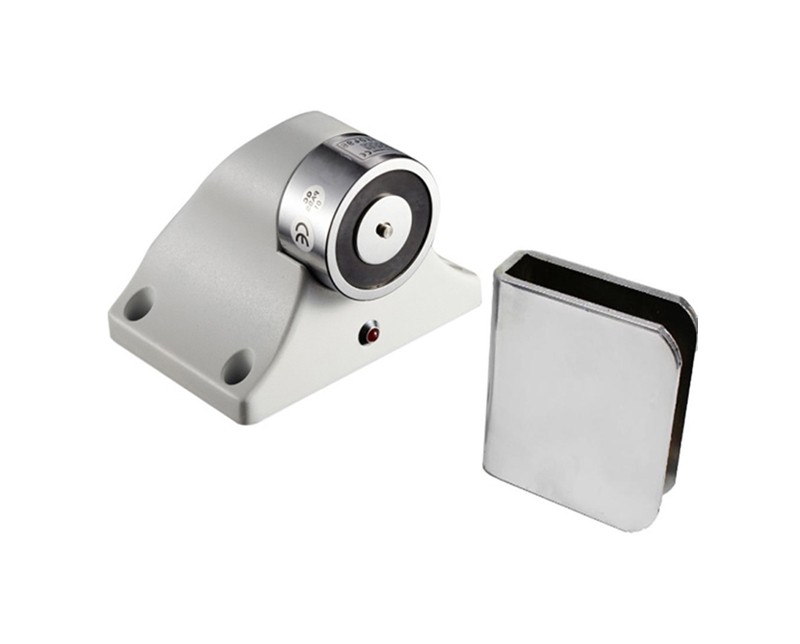

Floor Mount Glass Fire Door Holder: ZDDH-008C

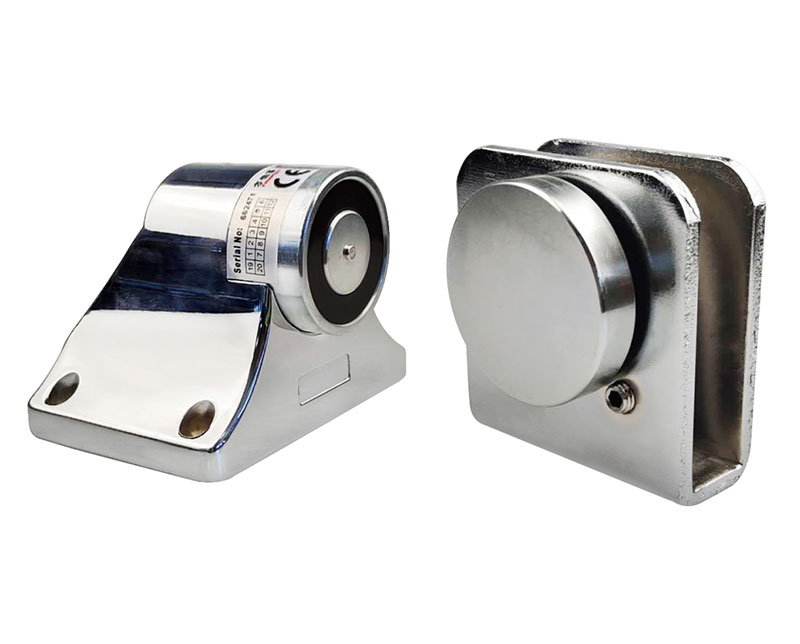

Silver color

Floor Mount Door Holder

MODELZDDH-008A/B/C/D

Facebook Twitter InLink instagram Youtube Skype
  • Dual Voltage 12/24VDC(Adjustable)

  • Fail Safe Security settings

  • Holding Force: 60kg(120Lbs)

  • MOV provides Reverse current protection

  • Emergency release button or Testing button.

  • Floor Mount Mounted, with NO/NC Signal(Optional)

  • Suitable for: All Kind of the Single & Double Smokeproof Door

Floor Mount Door Holder: Adopts low power consumption, that makes it more environment friendly and more durable. The Holding Force(Collinear Load) is 60kg(120Lbs)Professional anti-residual magnetism design ensures highest security. It will release automatically the fire door when fire alarms. It also contains build-out release button for testing and build-in MOV which reverse current protection.


- Optional Lock Model No.:

  * ZDDH-008B: Floor Mount Door Holder With Signal

  * ZDDH-008C: Floor Mount Glass Fire Door Holder

  * ZDDH-008D: Floor Mount Glass Fire Door Holder With Signal


         Floor Mount Door Holder(图1)

- Dual Voltage 12/24VDC(Adjustable)
- MOV provides Reverse current protection.
- Emergency release button or Testing button.
- Floor and wall Mounted
- Build-out release button
- Low-Power design
- Fail Safe Security settings
- Durable operation

  • Holding Force: 60kg(120Lbs)

  • Input Vatage: 12/24VDC

  • Current Draw:  DC12V/170mA or DC24V/85mA

  • Suitable for:   All Kind of the Single & Double Smokeproof Door

  • Finishes for Shell High temperature paint and Environmental protection zinc

  • Finishes for Armature Zinc

  • Environment humidity: ≤ 95% RH (no congelation);

  • Operating temp. :-10 to +50°

  • Dimensions: 110Lx80Wx93Hmm; Gorss Weight:1kg



Installation:


Basic Wall Mount Door Holder(图1)


Package Contents:

  • Standard Exporting Packing Box
