Extended Wall Mount Door Holder: ZDDH-002

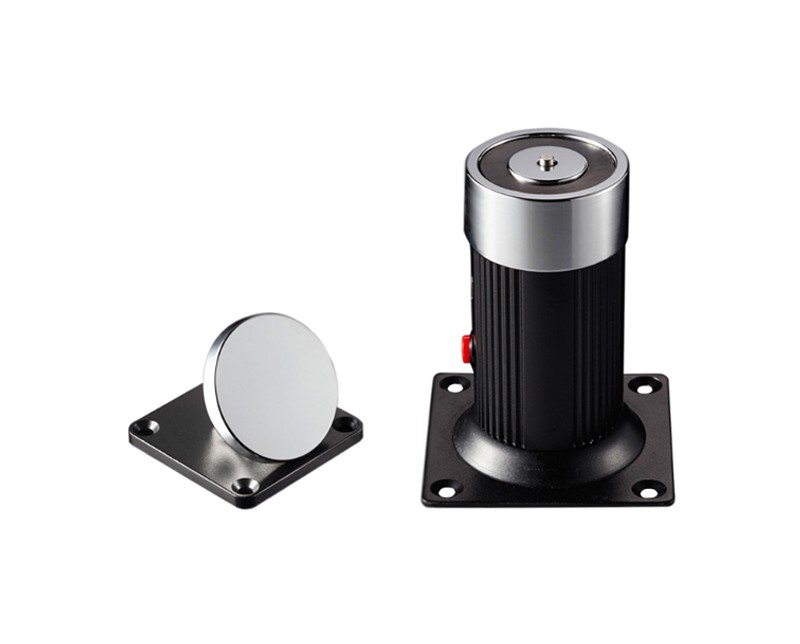

Extended Wall Mount Door Holder

MODELZDDH-002

Facebook Twitter InLink instagram Youtube Skype
  • Dual Voltage 12/24VDC(Adjustable)

  • Fail Safe Security settings

  • Emergency release button or Testing button

  • Holding Force: 60kg(120Lbs)

  • MOV provides Reverse current protection

  • Wall Mounted

  • Suitable for: All Kind of the Single & Double Smokeproof Door

Extended Wall Mount Door Holder: Extended type wall mount door holder, which adopts low power consumption, that makes it more environment friendly and more durable. The Holding Force(Collinear Load) is 60kg(120Lbs)Professional anti-residual magnetism design ensures highest security. It will release automatically the fire door when fire alarms. It also contains build-out release button for testing and build-in MOV which reverse current protection.

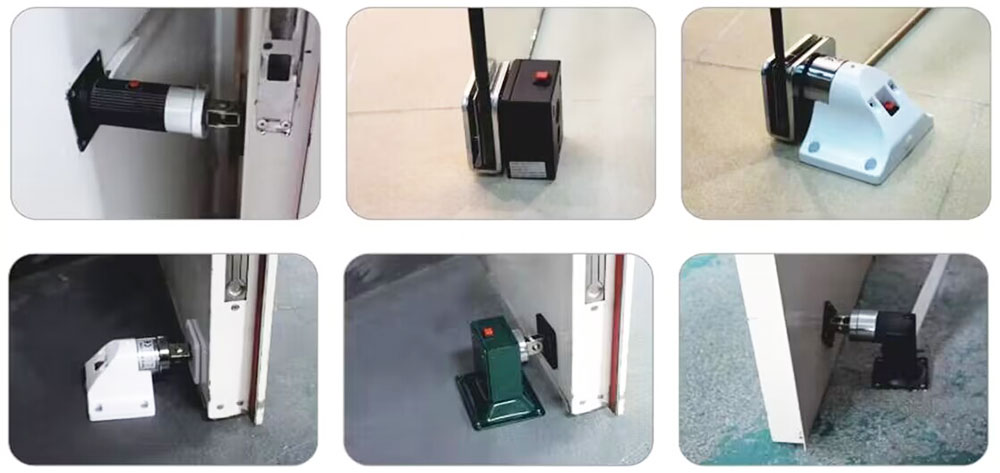

                                         Extended Wall Mount Door Holder(图1)

- MOV provides Reverse current protection.
- Emergency release button or Testing button.
- Wall Mounted
- Low-Power design
- Fail Safe Security settings
- Durable operation



  • Holding Force: 60kg(120Lbs)

  • Emergency release button or Testing button.

  • Input Vatage: 12/24VDC

  • Current Draw:  DC12V/170mA or DC24V/85mA

  • Suitable for:   All Kind of the Single & Double Smokeproof Door

  • Finishes for Shell High temperature paint and Environmental protection zinc

  • Finishes for Armature Zinc

  • Environment humidity: ≤ 95% RH (no congelation);

  • Operating temp. :-10 to +50°

  • Dimensions: 80Lmmx80Wmmx110Hmm; Gross Weight: 1kg

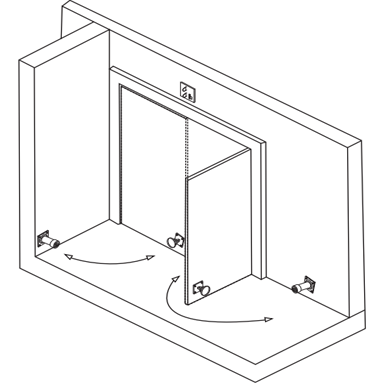

Installation:


Basic Wall Mount Door Holder(图1)


Package Contents:

  • Standard Exporting Packing Box
