4-inch HD LCD IPS touch screen
Zigbee smart switch with 3 gang relays
Multi-functional scene panel
Intelligent scene lingkage
Device connection control
Smart life App remote control
Easy installation

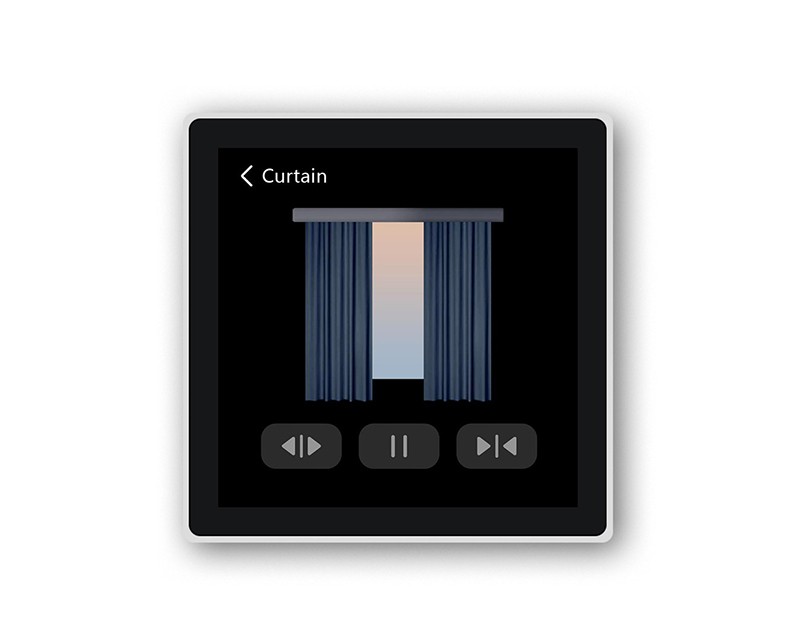

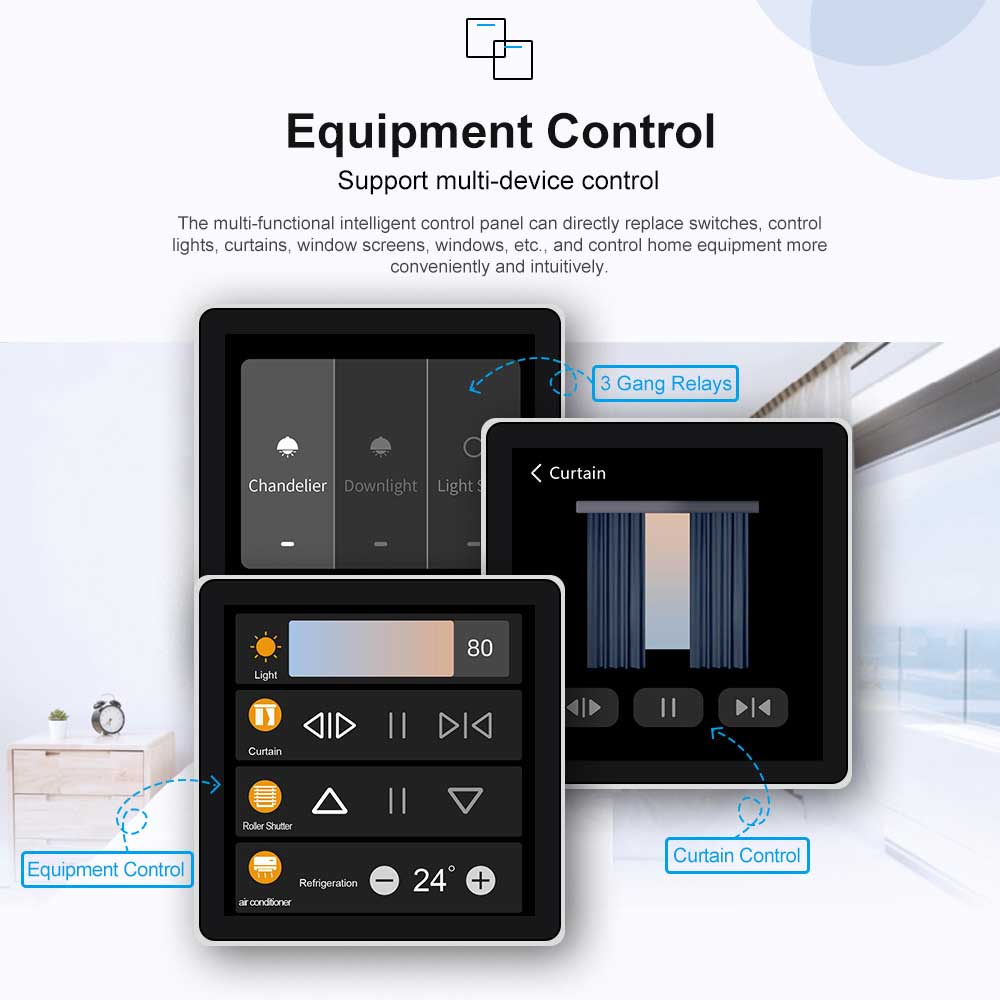

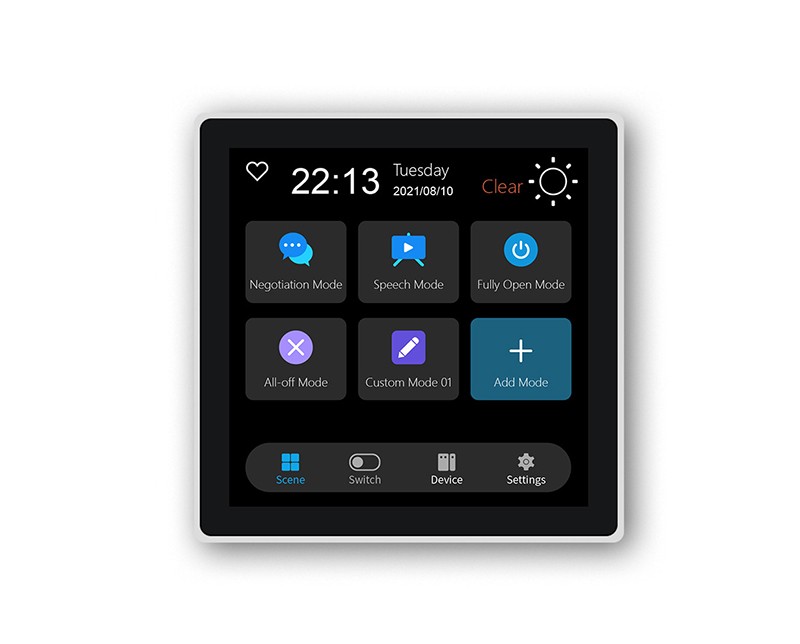

Zigbee Smart Wall Switch & Scene Panel: 2 in 1- 3-Gang (EU-Type), Touch HD Screen, Rmote APP Control, Smart scene linkage for smart control. ZDSW-T3E is a Zigbee smart switch with 3 gang relays, and also is a multi-functional scene panel when connected with smart ZigBee gateway. Compatible with European standard wall boxes, simple in-wall installation. Intelligent devices control, such as lights, curtains, air conditioners, and other smart home devices through panel. Smart scene linkage, customize application scenarios and bind smart devices according to your needs. Only one touch to quickly start the smart devices with preset scenarios, such as one-click to start the air conditioner, open the curtains and turn off the lights (home mode).

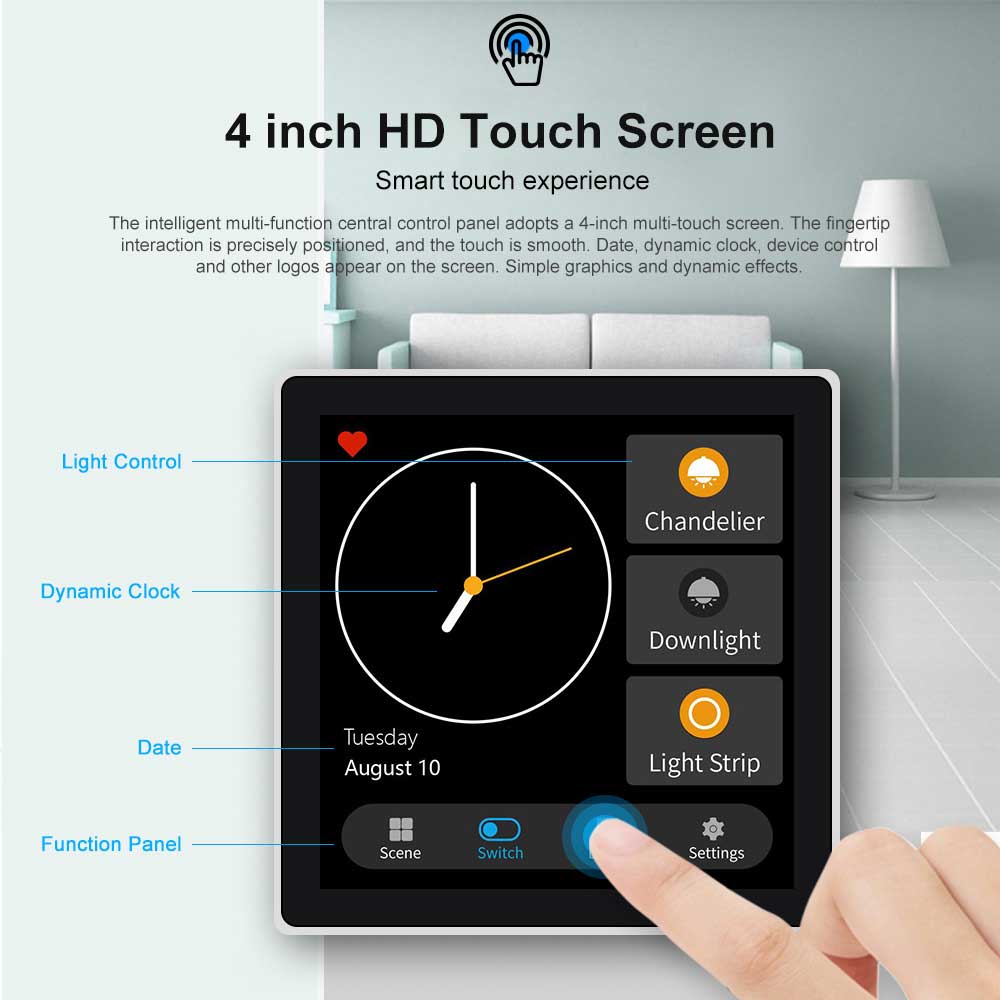

- 4-inch HD LCD, IPS, multi touch screen

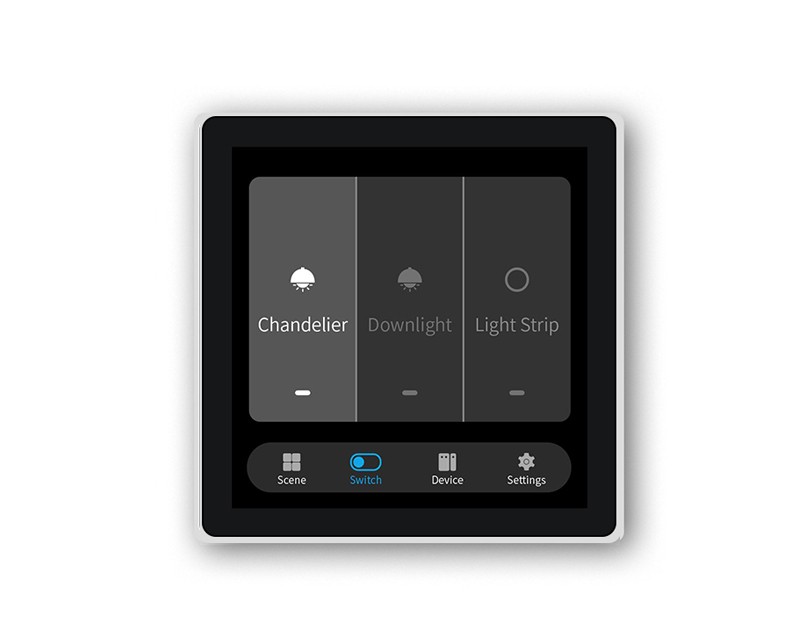

- Zigbee smart switch with 3 gang relays
- Multi-functional scene panel
- Intelligent scene lingkage

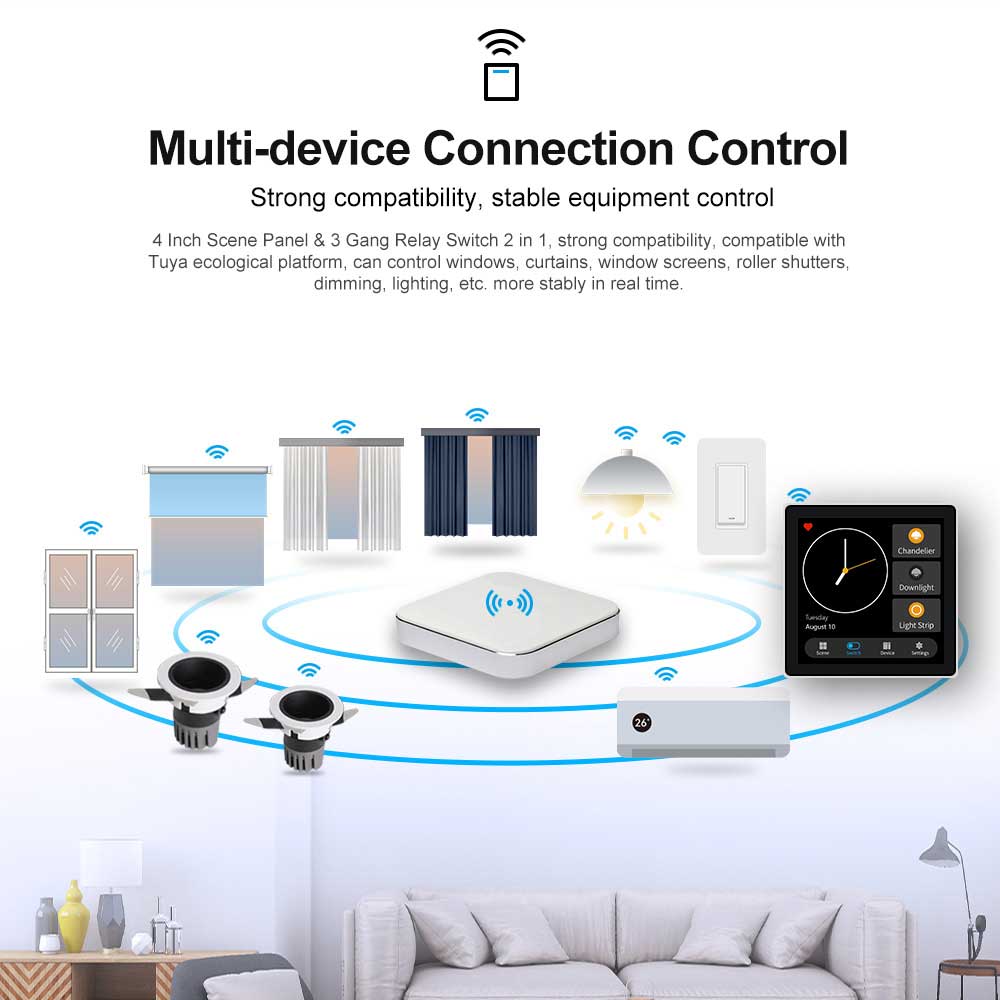

- Device connection control

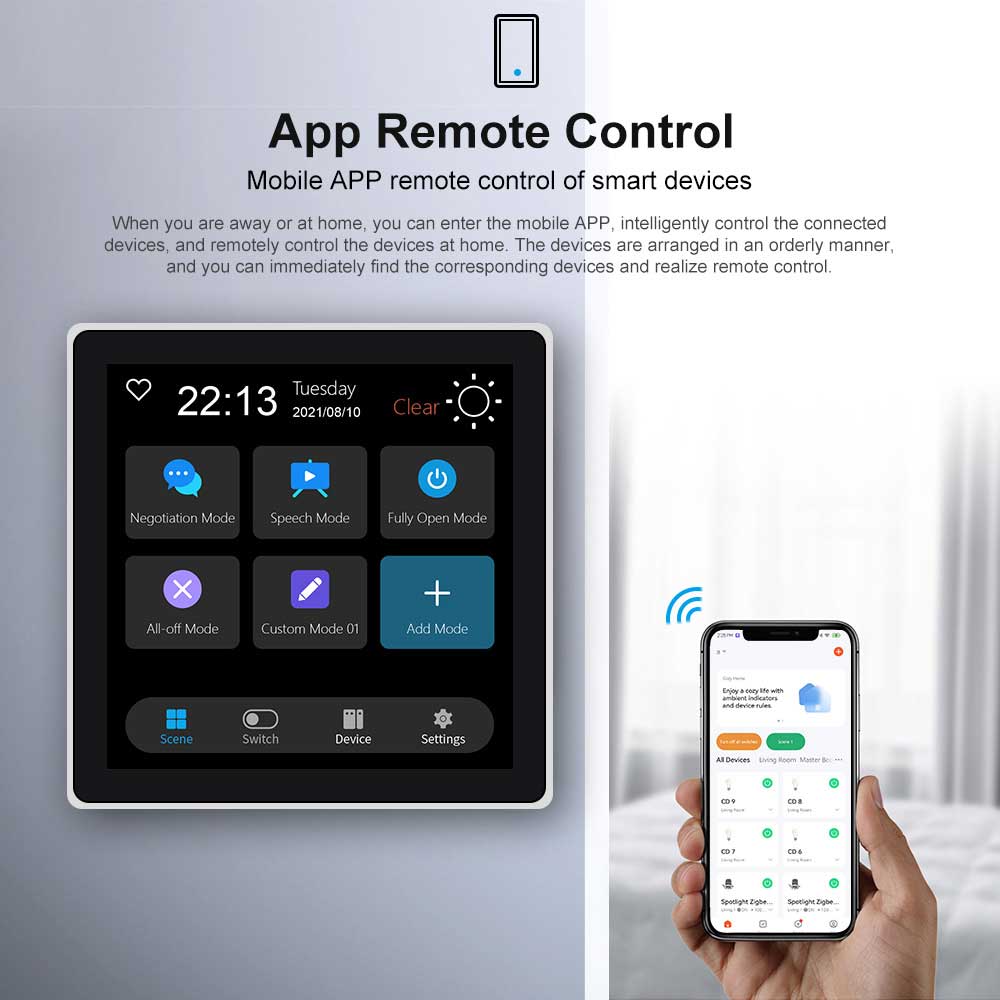

- Smart life App remote control
- Easy installation
Model | ZDSW-T3E |
Product Color | White |
Recommended reason | Touch screen wall switch with 1-4 gang relays, 1-2 ways light dimming; Scene panel |
Relays | 3 gang switch(EU-Type) |
Network | ZigBee |
Operation System | RTOS |
App | Have to connecct to ZigBee Hub/Gateway |
Wireless network | ZigBee |
Screen | 4 inch 480*480 |
CPU | Xtensa-LX7 dual-core main frequency 240Mhz |
RAM | 8MB |
ROM | 16MB |
Relays | 3 gang switch(EU-Type) |
Touch | G+F single touch, Industrial grade capacitive screen |
Supports ZigBee Sub Devices | It is a Sub-device itself and needs to work with the gateway connection. |
In-wall type | EU and CN Standard |
Product dimension (mm) | 86x86x11.1mm (without the base); 86x86x36mm (with the base) |
Product weight (g) | 153g |
Package Contents:
Standard Exporting Packing Box
