Zigbee Door/Window Sensor: ZDD-004M-ZB
Multi-Angle View
Multi-Angle View
Multi-Angle View

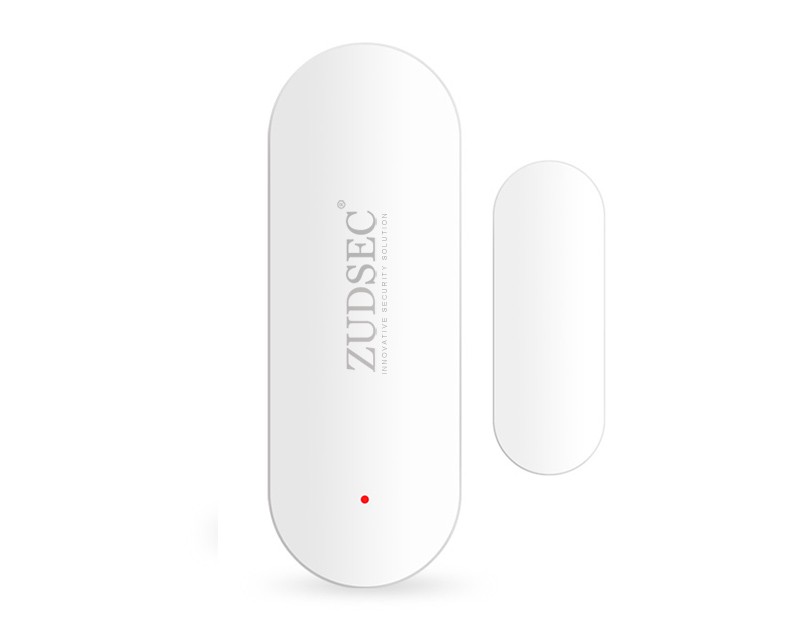

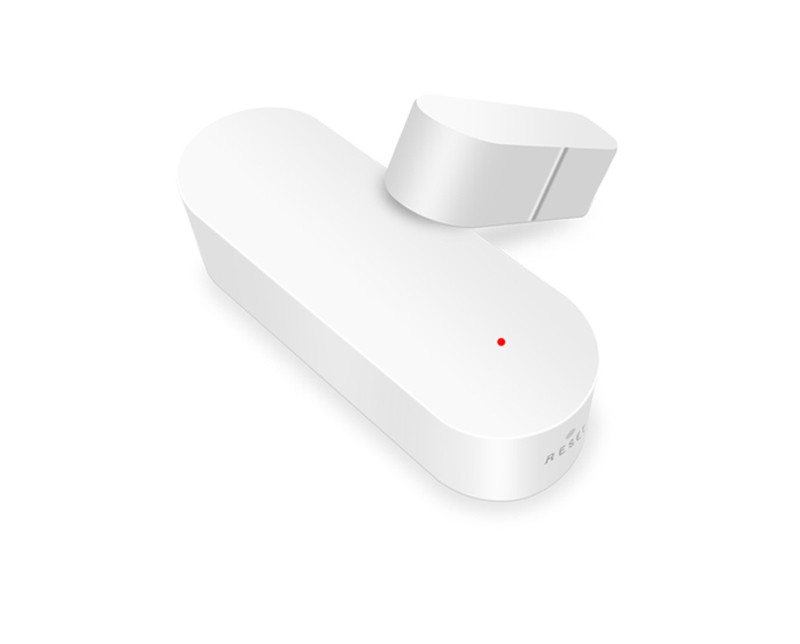

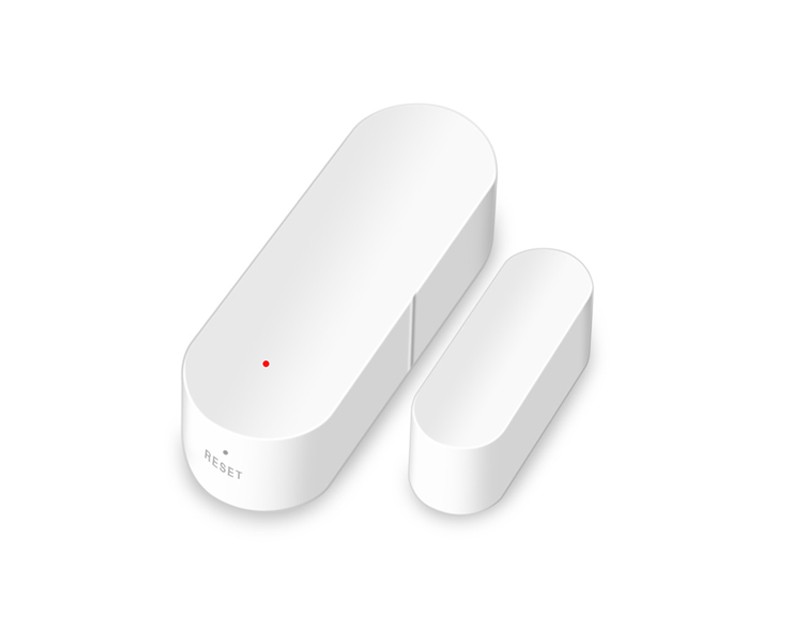

Zigbee Smart Door/Window Sensor

MODELZDD-004M-ZB

Facebook Twitter InLink instagram Youtube Skype
  • Transfer Protocol: Zigbee 3.0

  • Magnetic control distance:≥15MM

  • Battery model: DC3V  LR03

  • Magnet material: N38

  • Installation method: paste and fix

  • Works with ZigBee Gateway hub

Zigbee Smart Door/Window Sensor: Real-time detection of the opening/closing of door and windows, ZDD-004M-ZB works with ZigBee gateway hub which can give alarm through APP push notification once sensor is triggered.


- Note: Zigbee sensor can't work stand alone, this device needs to be used with ZigBee gateway!.



Zigbee Smart Door/Window Sensor(图1)

Zigbee Smart Door/Window Sensor(图2)

Zigbee Smart Door/Window Sensor(图3)

Zigbee Smart Door/Window Sensor(图2)

Zigbee Smart Door/Window Sensor(图5)

Zigbee Smart Door/Window Sensor(图4)

Zigbee Smart Door/Window Sensor(图5)

Zigbee Smart Door/Window Sensor(图3)


- Detect whether the door, window or drawer is illegally open or moved. Once opening or moving detected, the detector will immediately send the Wifi push notification to the mobile by APP control
- Works with ZigBee Smart Gateway hub
- Remote control by phone ,control your alarm anywhere
- Control by Smart life app

- Suppot voice control, works with Amazon Alexa/ Google Home/ IFTTT

- Support all Smart Life product Linkage control for automation.


  • Input voltage:DC3V, LR03AAA(600mA)

  • Standby current:∠10uA

  • Alarm current:≤15mA

  • Low-voltage notification:≤2.2V

  • Zigbee: 3.0

  • Magnetic control distance:≤15mm

  • Working temperature: -10 ~ 55°C ; Working Humidity: Max 95%RH

  • Dimension:69.5*24*18.5mm



Package Contents:

  • Standard Exporting Packing Box
