Video Balun: ZDVB-206HD

Multi-Angle View

Multi-Angle View

Multi-Angle View

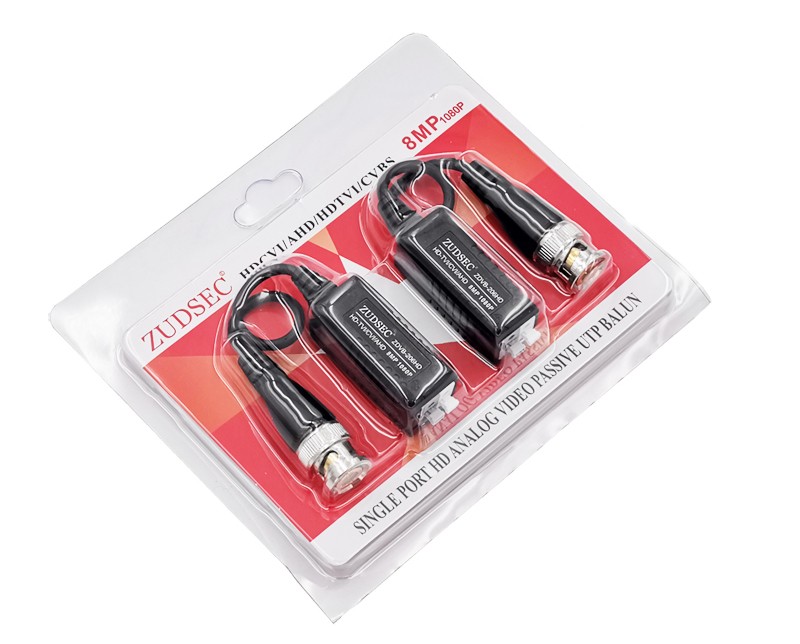

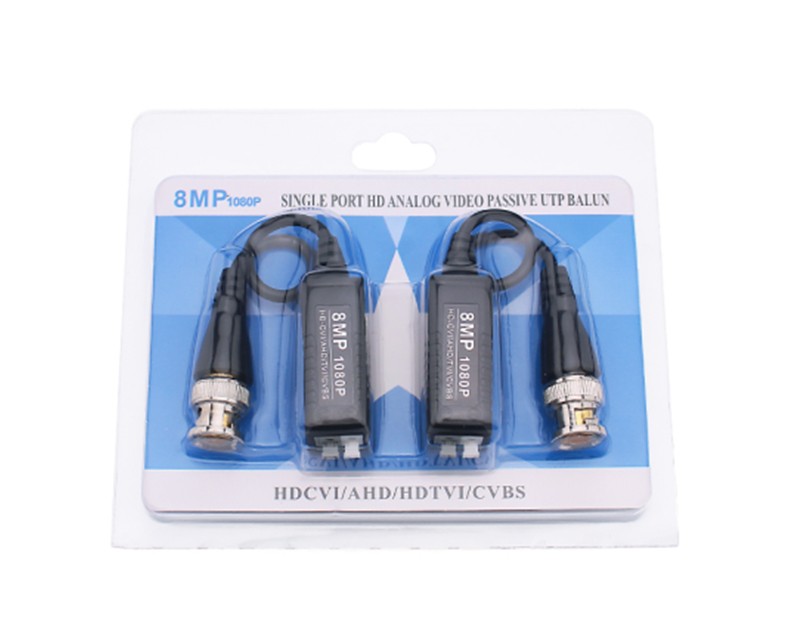

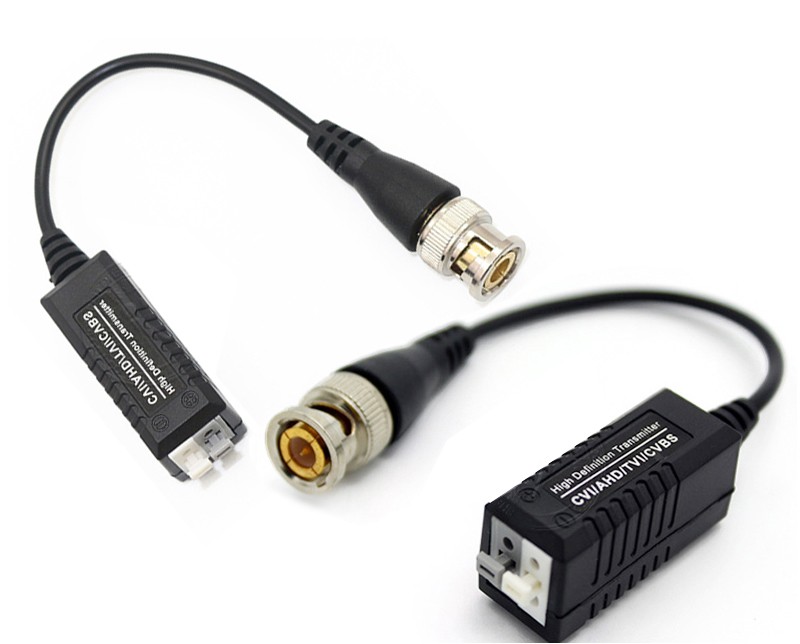

Passive HD Video Balun with Pigtail Cable Connector

MODELZDVB-206HD

Effective transfer HD signal and Analog signal
HD-AHD/TVI/CVI/CVBS
With pigtail cable conector
AHD/HDCVI: 720P/270M, 1080P/120M
HDTVI/C_VBS: 720P/300M, 1080P/200M
Interference device, Surge protect UTP video balun

GET A FREE QUOTE

Overview Features Specifications Other Information

1CH Passive HD Passive Video Balun: Supports AHD/ HDCVI / HDTVI /CVBS video format compatible etc, Resolution support 720P /1080P / 3MP /4MP /5MP/8MP.

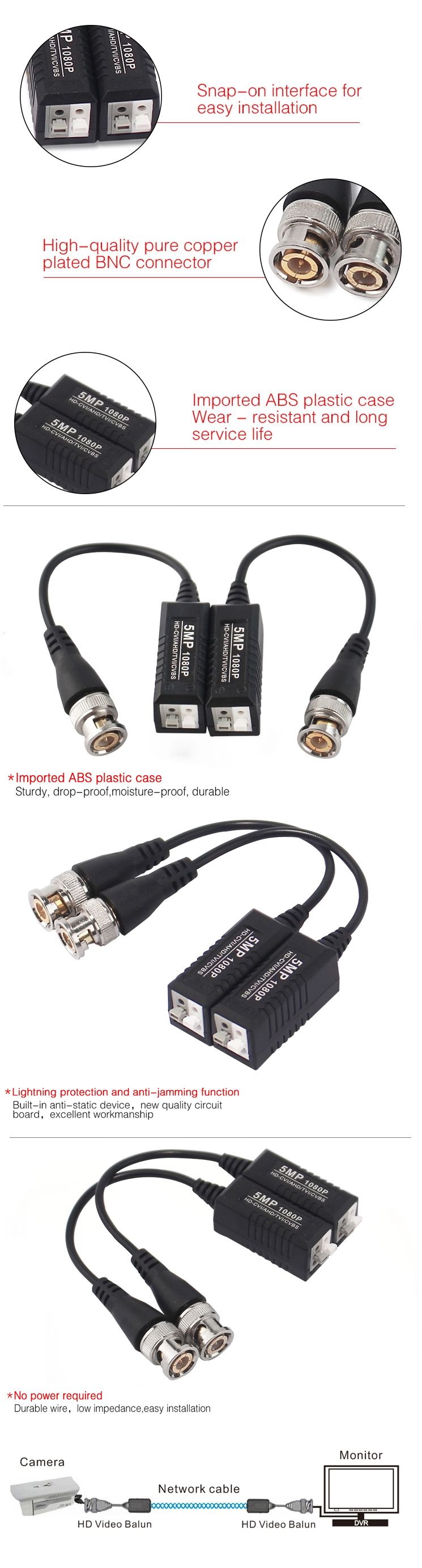

1Ch Passive Video Balun with pigtail cable conector(图1)

- Effective transfer HD signal and Analog signal
- HD-AHD/TVI/CVI/CVBS
- AHD/HDCVI: 720P/270M, 1080P/120M
- HDTVI/CVBS: 720P/300M, 1080P/200M
- interference device, Surge protect UTP video balun

Model	ZDVB-206HD
Transmission distance	HD TVI: 720P:600m,1080P:450m,3MP:350m,4MP/5MP:300m
	HD CVI: 720P:600m,1080P:450m,3MP:300m,4MP/5MP:280m
	HD AHD: 720P:600m,1080P:450m,3MP:350m,4MP/5MP:300m
	CVBS: 600M
Catagory type	UPT CAT5 / 5E / 6
Material	ABS Plastic
Impedance	BNC male: 75, UPT Cable: 100
Formats	AHD/HDTVI/HDCVI/CVBS
Working Valtage	DC12V
Signal Bandwidth	6 MHz
Category Type	5 or better

*Packing size: 55*39*27.5CM; Weight: 12Kg/200pcs

Package Contents:

Standard Exporting Packing Box
