Multi-outputs Box-Type CCTV Power Supply

Multi-outputs Box-Type CCTV Power Supply

MODELZDCP-1210-9

Multi-outputs Box-Type CCTV Power Supply
Input:AC100-240V.
Output: DC12V, 10A,
Channels: 9 channels
Output over-voltage, over-current and short-circuit protection

GET A FREE QUOTE

Overview Features Specifications Other Information

Multi-outputs Box-Type CCTV Power Supply: DC12V, 10A, 9 Channel Central CCTV Security Camera Switching Power Supply Metal Box. The CCTV power supply is primarily designed for PTZ and camera of CCTV system. It's also used for access, building/house control, intrude alarm and other light-current. It is for desktop or wall-mounted installation.

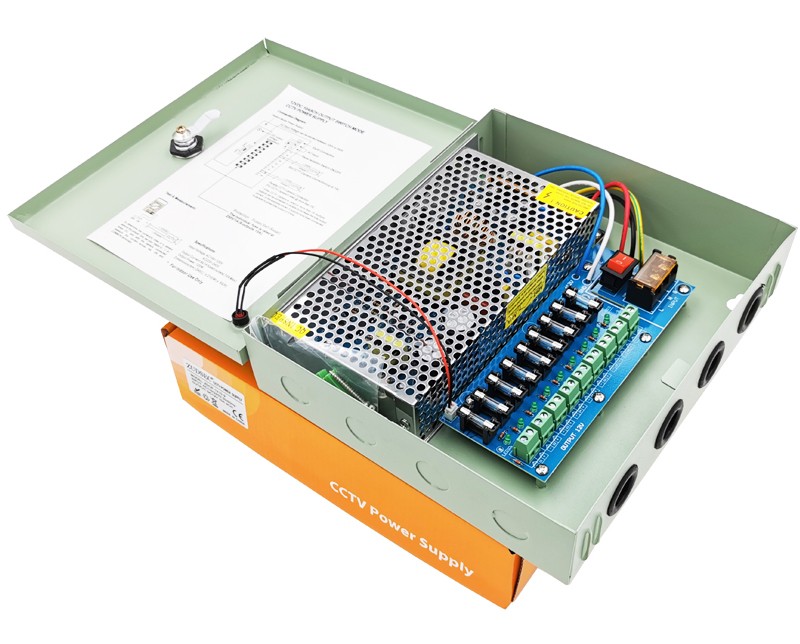

Multi-outputs Box-Type CCTV Power Supply(图1)

- AC input voltage range is switched by switch

- Medium volume, light weight and high efficiency

- Protection Characteristics: Output over-voltage, over-current and short-circuit protection

- With boot-up display (light emitting diode)

- 100% Full Load Burning Machine Test

- Built-in EMI filter

- 100% load test

- Full range of input voltage

- Output voltage accurate and stable

- Output low ripple and noise

Model	ZDCP-1210-9
Input Voltage	AC110-240V
Input Voltage Frequency	60Hz/50Hz
Output	DC 12V, 10A, 9CH (1200W)
Total Output Current	10A ( (500amp/output, 9channels for 9 sets security cameras))
Total Outputs	120W
Fuse Type	Glass (Resetable fuse)
Fuse Rating	1.5Amps /250VAC
Protection
General Protection	each output has individual glass (Resetable) fuse and LED indicator, when problem occurs,only affect the individual output, other outputs still working
Circuit Short Protection	when short condition occurs, individual glass (Resetable) fuse will open the circuit,when condition removed, glass (Resetable) fuse will automatically back to close
High Voltage Protection	when high voltage occurs, the surge protection will be hit through to protect the connected device
high tenperature protection	115 degree
Feature	Power ON/OFF switch
	Unit maintains camera synchronization
	Easy installation saves time and eliminates costly labor
Safety standards	According with GB4943, UL60950-1,EN60950-1 standards.
E M C standards	According with GB9254, EN55022 class A EN61347-2-13:2008 standards
Application
CCTV	Camera, PTZ, IR Illuminators, Video Process Equipment, etc
Access Control	Reader, Lock, Panel, etc.
Size (mm)	240(L)210(M)53(H)mm
Cooling method	Natural cooling air convection
Weight	1.14KG
