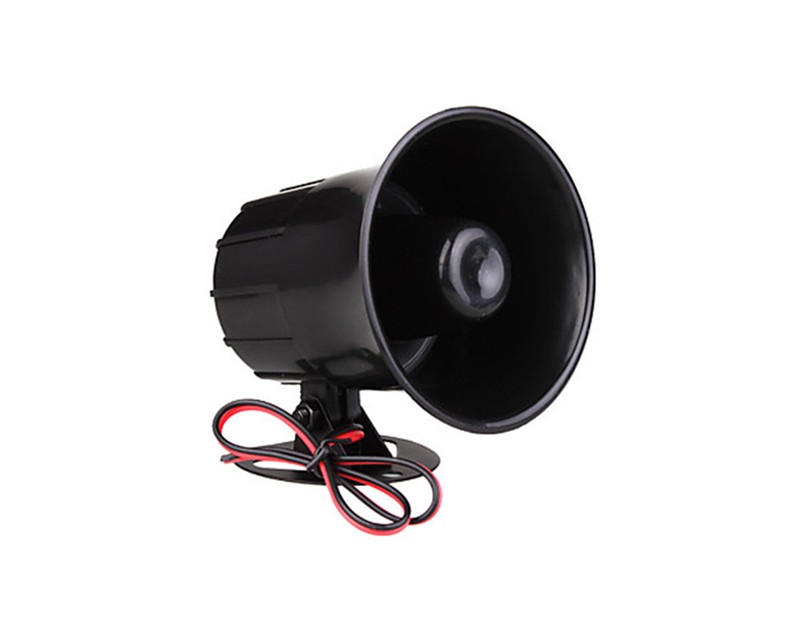

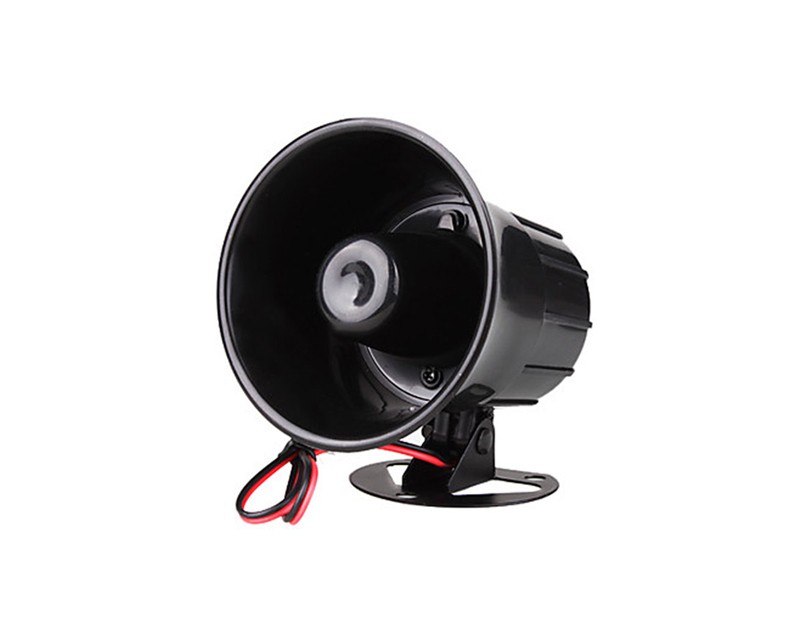

Electronic siren: ZDSH-103
Wired Horn Siren

Electronic siren

MODELZDSH-103

Facebook Twitter InLink instagram Youtube Skype
  • 12VDC, 20W

  • DB Value: 115±3dB at 1M

  • Tones: 1 or 6 Tones

  • Material: ABS Plastic cabine


Electronic siren:  Wired horn siren with 115dB speaker, 12VDC, 20W, It can scare away of the theft. it is used for enlarging the volume of the alarm main device.



- Wired horn siren with 115dB speaker, 12VDC, 20W, Connect with the alarm control panel.

  • Working voltage: 12VDC, Working current: 600-1200mA,

  • Rated Power: 20W (30W can be customized)

  • DB Value: 115±3dB at 1M

  • Sound frequency: 3.8KH2+10%; Resistance:230-280mA

  • Transmit speed: 3H2±10%

  • Material: ABS Plastic cabinet; Iron stand thickness: 1.55 mm ,

  • Color: black color.

  • Size:106LX107.5W*99H mm

  • Packing box: 11*11*11cm; Weight: 0.4kg/pc


Package Contents:

  • Standard Exporting Packing Box
