Thin EM/Mifare Card
Multi-Angle View

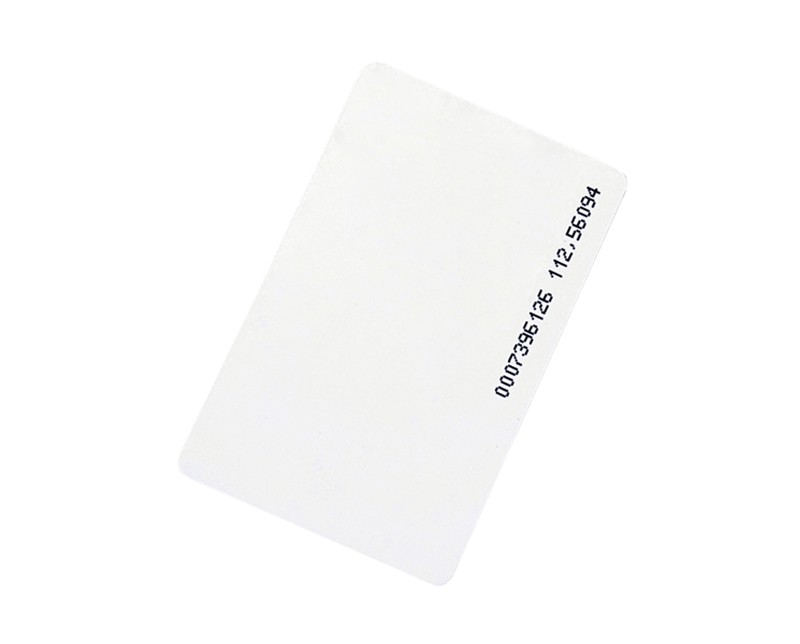

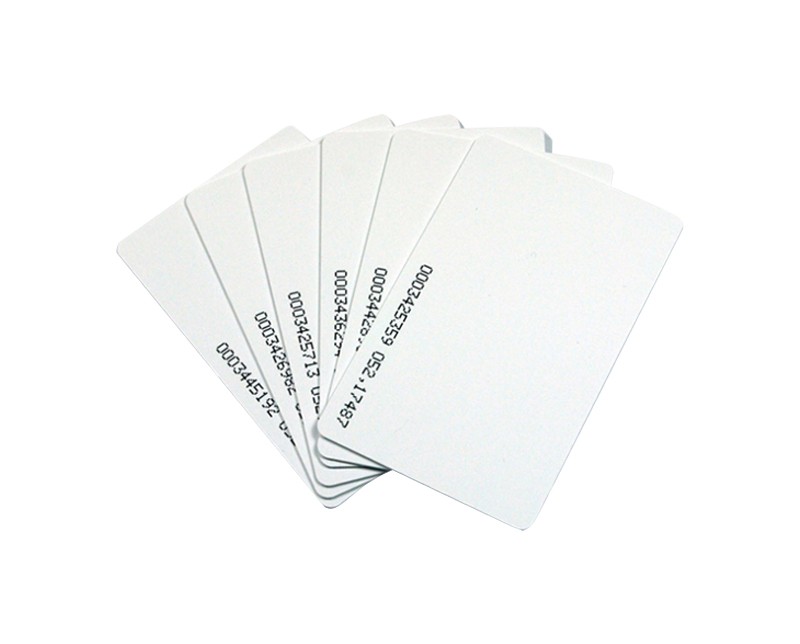

Thin EM /Mifare Card

MODELZDCD-002ID/IC

Facebook Twitter InLink instagram Youtube Skype
  • Thin EM Card, IC type (Mifare card) optinal

  • Frequency: 125khz

  • PVC material

  • With ID Number printing(laser)

  • Color: White, Surface Glossy

  • Dimension: L86×W54×T0.8 (+ 0.04)mm


Thin EM/Mifare Card:  EM chip(125KHz 64bit) or Mifare chip(13.56MHZ) is multi-purpose non-standard card, made of the ABS shell package, non-contact chip and PVC film, format is EM, Frequency of 125KHz, 13.56MHZ is optional.  It's widely used for access control, attendance control, identification, public transportation, multi-purpose-card system.


* Printing cards according to customer's request produce double-side printing.


- Short range thick /Thin card can read range from 8-20cm available.
- Chip: EM or Mifare
- Working frequency: 125KHZ or 13.56MHZ
- Sensitive distance: 8-20cm
- Thickness :1.8mm
- ID number or serial number can be printed on any side

  • Frequency: 125KHZ or 13.56MHZ

  • Material: Hard Shell:ABS, Cover Foil:PVC

  • Temperature:-10℃ and +50℃

  • Color: White

  • Thickness: 0.88mm(t)

  • Product Size: L86×W54×T0.8 (+ 0.04)mm; Packing: 23*9*9.5cm(200pcs/bag); 1.3Kg/200pcs


Package Contents:

  • Standard Exporting Packing Box
