QR Code Card Reader: ZDR-15QR
Multi-Angle View
Multi-Angle View
Multi-Angle View
Multi-Angle View
Multi-Angle View

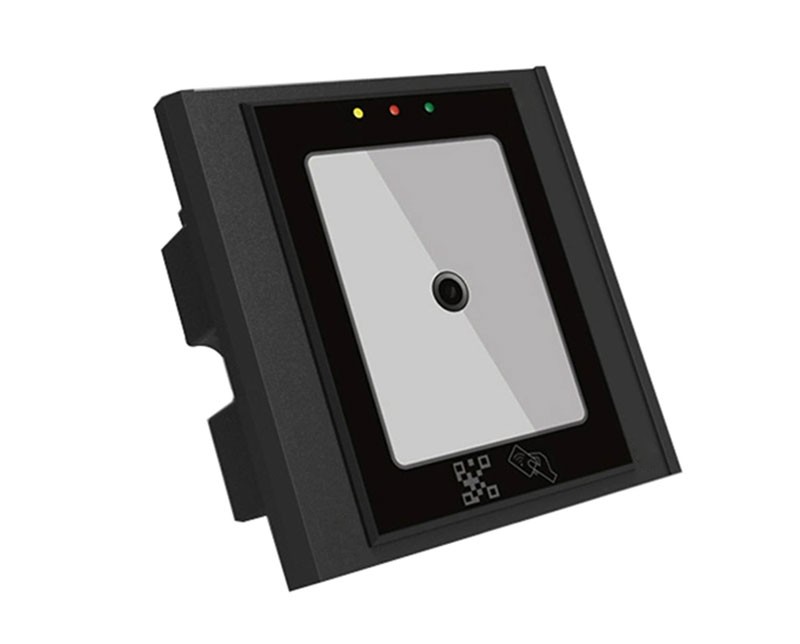

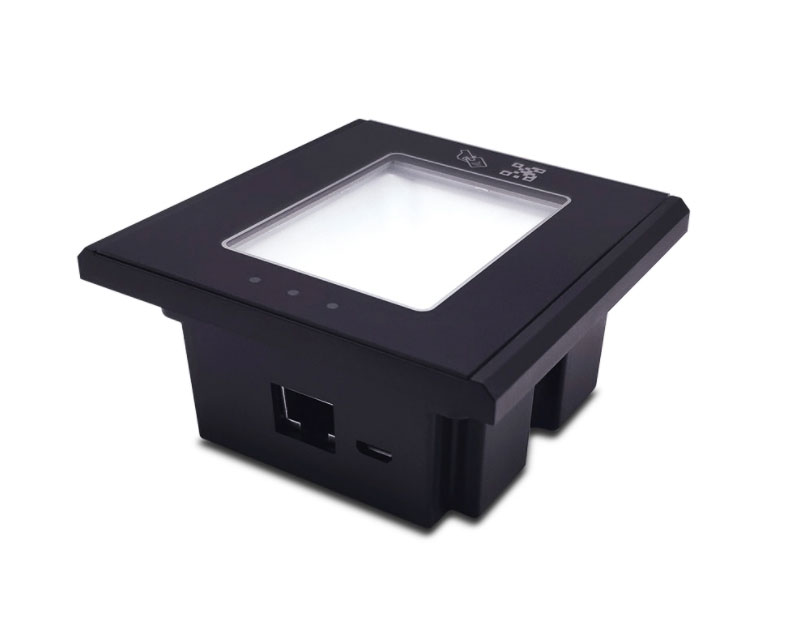

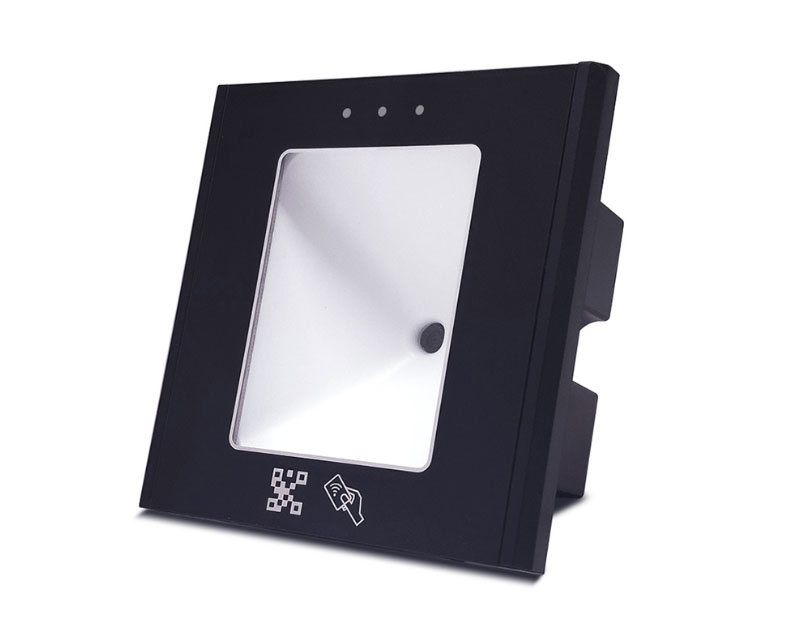

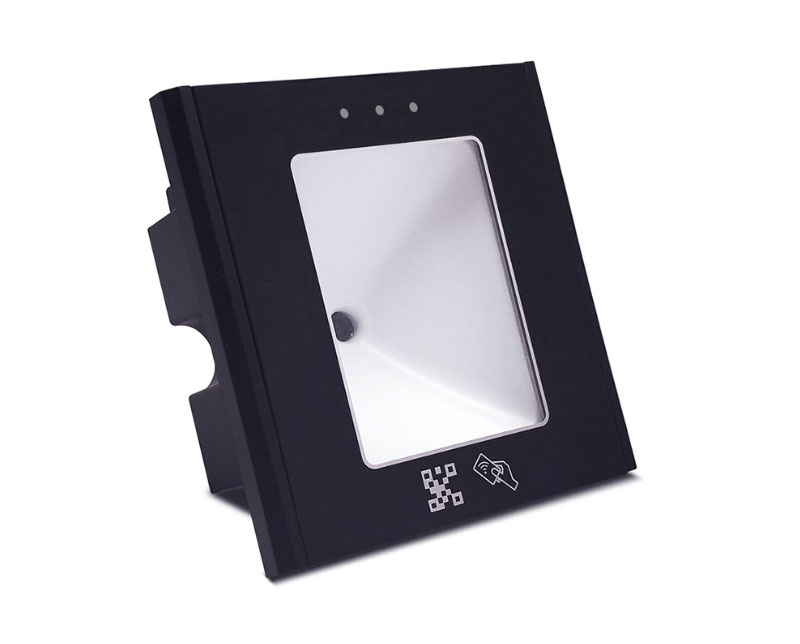

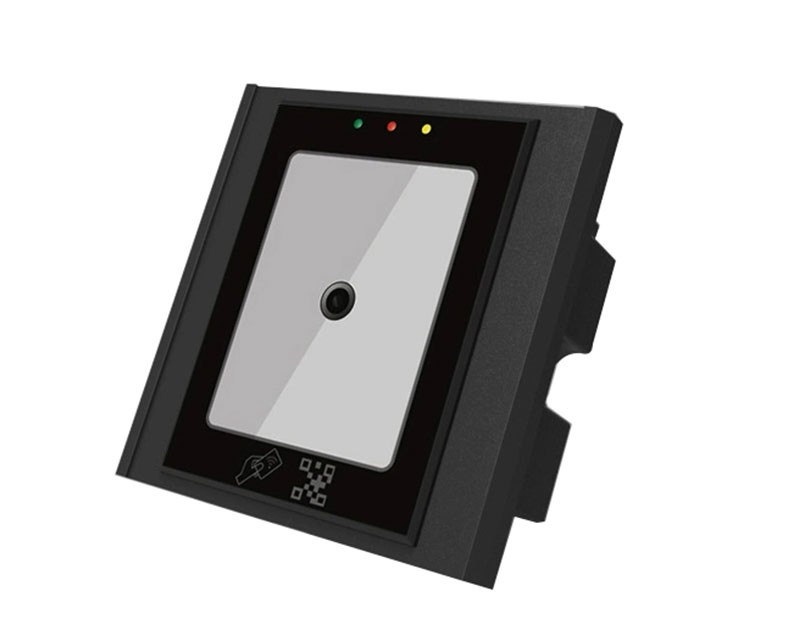

QR Code Card Reader

MODELZDR-15QR

Facebook Twitter InLink instagram Youtube Skype
  • 1D/2D QR Code Reader for Access Control System

  • Interface: Wiegand26/34, RS485, RS232, USB, TCP/IP optional

  • Decoding support: QR and One dimensional code

  • Reading directions: Camera centric slant 45°

  • Reading speed: <200ms; Reading range: 0~20CM

  • Decode mode:  Image decoding;

  • Read Card type: 125KHz EM-ID Card, or Mifare card


QR Code Card Reader: QR Code Access card Reader is ZudSec newest intelligent Access Card Reader, Fast reading speed, High recognition rate, Strong compatibility, can connect to any Wiegand input contronller, widely Community visitor access management, Administration Service Hall management, Gates access control, Visitors intelligent machines, Smart home; Upgrade old access control systems etc.



QR Code Card Reader(图1)


- 1d 2D Qr Code Reader for Access Control System

- Material: PC and Tempered glass

- Interface: Wiegand26/34, RS485, RS232, USB, TCP/IP optional

- Decoding support: QR and One dimensional code

- Reading directions: Camera centric slant 45°

- Reading speed: <200ms; Reading range: 0~20CM

- Decode mode:  Image decoding;

- Read Card type: 125KHz EM-ID Card, or Mifare card

- Voltage support: DC4~15V


ModelZDR-15QR
Card typeEM or Mifare card
Code TypeQR Code, 1D(One dimensional code)
InterfaceWiegand26/34, RS232,RS485,USB, TCP/ IP   optional
Decode modeImage decoding
Reading directionsCamera centric slant 45°
Reading featureAuto-induction & beeper
Voltages4-12V Wide voltage input
Current800mA
Reading range of range3-6CM
Reading speed<200ms
Reading range of QR0-20CM
MaterialcasePC & temperrd glass
Humidity10%~90%
Temperature-20ºC~70ºC
Operate systemWindows(XP,7,8,10), Linux
Indicating status lightRed-work,Green-feedback,Light Green-internet
Size86mm×86mm×42mm
Wight150G
Restore Factory SettingUse sharp objects inserted into RESET hole of   QR code reader backside, release till the QR code reader automatically   restarted.


QR Codel Card Reader(图1)


Package Contents:

  • Standard Exporting Packing Box
