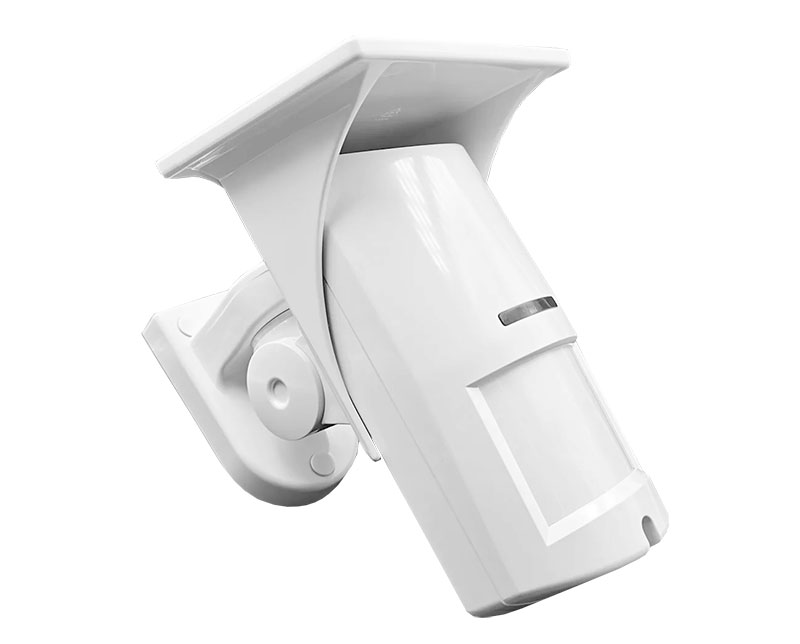

Outdoor Solar  Wireless  Microwave & PIR Motion Detector: ZDD-210PIRWS

Wireless Solar Outdoor Microwave & PIR Motion Detector

MODELZDD-210PIRWS

Facebook Twitter InLink instagram Youtube Skype
  •  PIR + microwave shaking recognition technology

  • Solar power supply

  • Wireless Output

  • Digital automatic pulse adjustable

  • Own self-check function

  • Water-proof class IP65

  • Pet-immunity up to 15kg, reduce false alarm

Solar Outdoor Wireless  Microwave & PIR Motion Detector: ZDD-210PIRWS adopts PIR & MW complex intelligent technoloy with solar energy charging  & RF communication functions, it can avoid outdoor interference from sunshine, UV & RF, head light on car etc and is highly effective for water/dust/insects/ wind proof. It is matched with follow advanced technology: direct calculation an d analysis technology from intelligent hi gh-speed microchip to intrusion infrared signal, double polarity test technology, automatic temperature compensation technology, direct adjustment technology to sensitivity on digital signal, filtering technology from multi-layer infrared channels to mixed light. It's also equited with Pet-immunity technology up to 15Kgs, IP65 Water-proof design.

-Super mini power-consumption solution

-Polysilicon solar charging technology

-High-quality large-capacity lithium battery

-2 grade sensitivities for option

-2 grade pulses for option

-Digital pet immunity up to 15kg

-Bi-directional temperature compensation

-EDS/electric shock proof/mobile interference proof

-Anti white light

-Low voltage alarm

-Fully sealed optical parts

-Multi-direction bracket fit for corner/wall/ceiling mount


ModelZDD-210PIRWS
Power supplySolar   Charging/USB 5V power supply
Built-in   battery4.2V Lithium   Battery Operated
Standby   Current26uA
Alarm   Current18mA
Detecting   rangewide angle   110 degree 12m*12m
Pet Immune15kg
Installation   height1.8~2.4m
Detection   speed0.2-3.5 m/s
Sensitivity4 grade for   option
Alarm time2s
Alarm   interval4 min (USE   mode)
Wireless   distance≥200m (open   space)
Anti white   light>10000   LUX
Fire proofABS plastic
Anti RFI/EMI   interference0.1-1000MHz/30V/m
Operation   environment:-10℃-50℃


Package Contents:

  • Standard Exporting Packing Box
