Perimeter Intrusion Sensor: ZDD-150MB

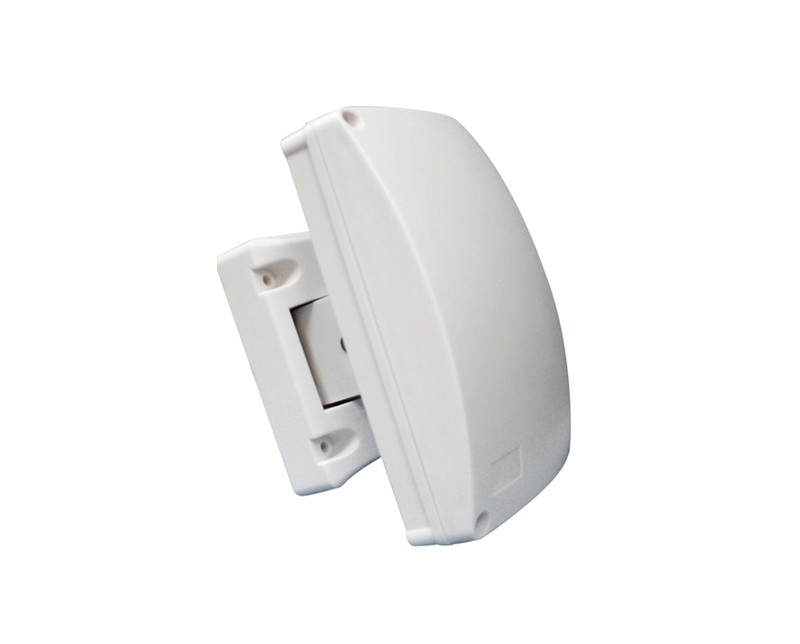

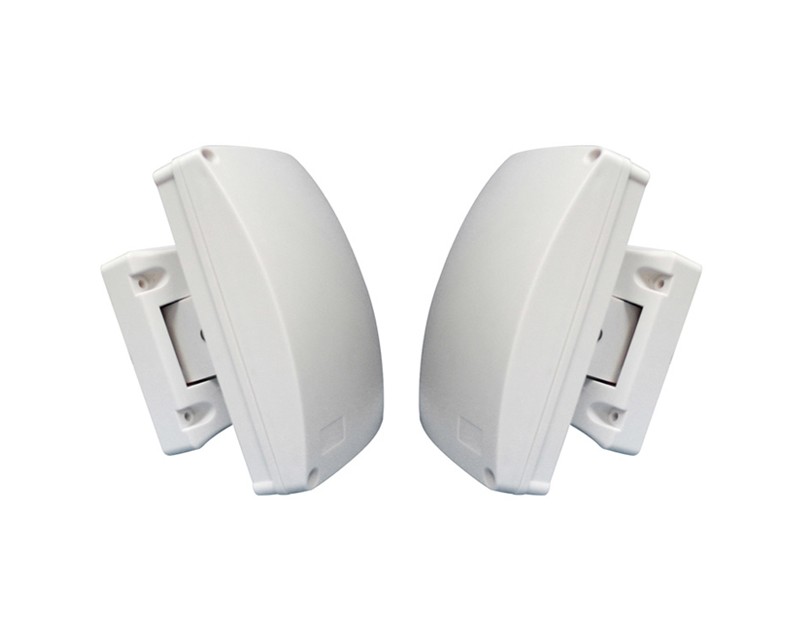

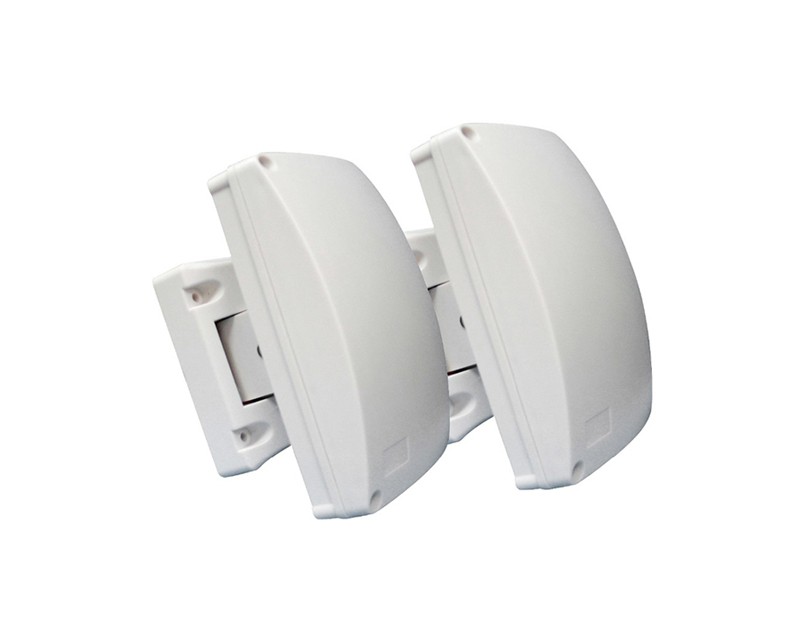

Multi-Angle View
Multi-Angle View

Perimeter Intrusion Detecting Microwave Barrier

MODELZDD-150MB

Facebook Twitter InLink instagram Youtube Skype
  • Detect human intruders walking, running or crawling.

  • Detetion Distance: 150M

  • Quick and easy installation on pole, fence or wall.

  • No maintenance required.

  • High RFI & EMI immunity

  • Multi-level sensitivity adjustment

  • Digital signal analysis, avoid false alarm.

Perimeter Intrusion Detecting Microwave Barrier: Making Alarm under the following status: the intrusion people walking, run or climb with speed between 0.1~10m/s. It provides ideal cost-effective solutions for medium-range applications such as perimeter protection of buildings, fences, warehouses, factories, parking lots, gardens, walls, etc, especially inner balcony to substitute metal structure. It will alarm at once and dial the pre-set alarm numbers when the emitting bundle is shut off by the object.

- Detect human intruders walking, running or crawling.
- Detetion Distance: 150M
- Center Point 1.8m, width 5m, snow 0.5m, grass 0.3m,
- Power input:10.2~30 VDC
- Quick and easy installation on pole, fence or wall.
- No maintenance required.
- High RFI & EMI immunity
- Power failure protection and backup
- Multi-level sensitivity adjustment
- Digital signal analysis, avoid false alarm.
- Making Alarm under the following status: the intrusion people walking, run or climb with speed between 0.1~10m/s.


ModelZDD-150MB
MW  frequency10.525GHz
Detection  distance150m
Central location  width5m
Central location  height2.5m
Grass  width0.3m
Snow  width0.5m
Power  input12~18 VDC
Working  current      Transmitter:25~30mA,12VDC
Receiver:30~35mA,12VDC
Alarm Relay  capacity(N.C.)50mA,20VDC
Alarm  time≤3s
Tamper switch  capacity(N.C.)0.1A,20VDC
Max emitting  power35mW(common);50mW(Max)
Detection  speed0.1~10m/s
Alarm  output≥3s
Temperature-40ºC~+65ºC
HumidityMax 98%
Dimension158×113×46mm
Water-proof  designBuilt-in water-proof equipment, anti-rain/snow  30mm/h

Packing Size: 38.5*16.5*12CM, Gross Weight: 3KG/pair

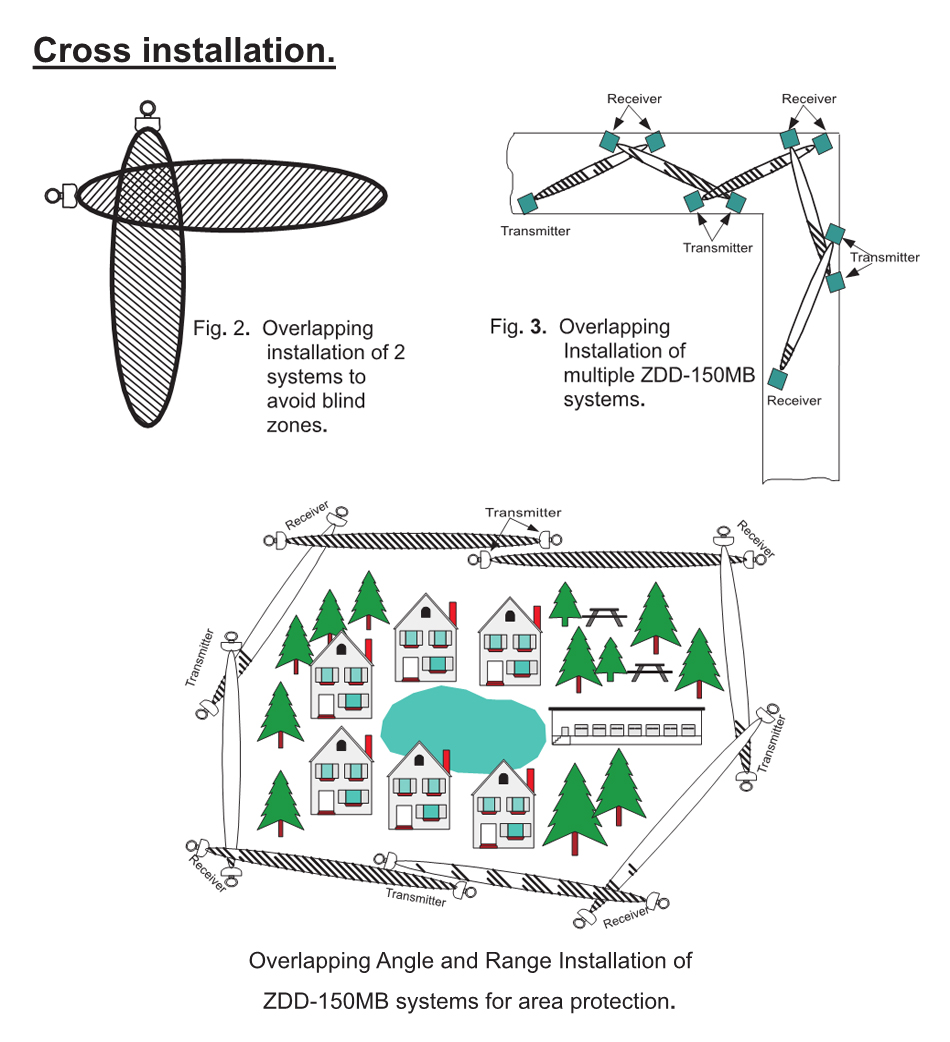

Perimeter Intrusion Detecting Microwave Barrier(图1)

Package Contents:

  • Standard Exporting Packing Box
