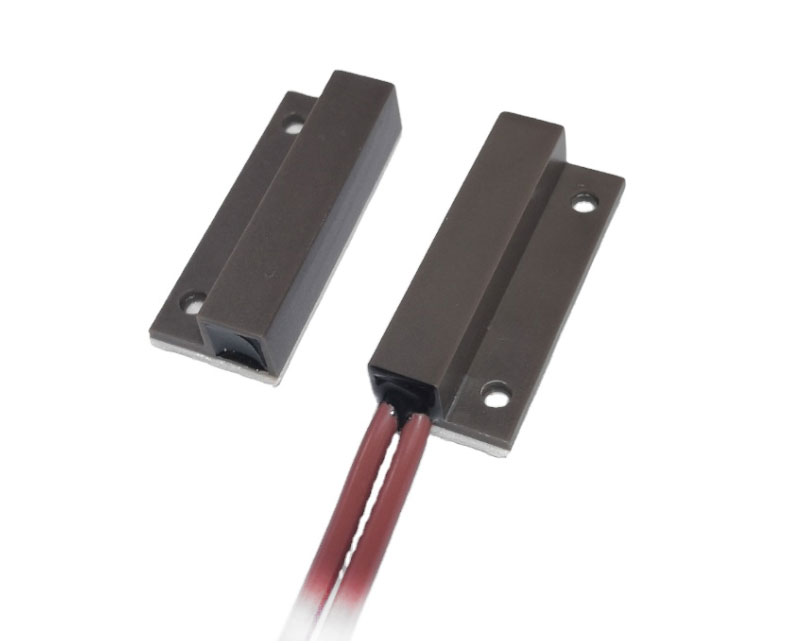

Wired Magnetic Contact - Surface Mount:  AC300V Max. Switching voltage, it's widely used for refrigeration refrigerators and air conditioning equipment to detect door if it is opened. Small size, easy installation and operation, and strong flexibility.

- Mostly used for refrigeration refrigerators and air conditioning equipment  to detecting door gap by opening
- Connecting mode: N.C.

- Max. Switching voltage: AC300V

- Wires: UL1672 Double shielded wire

- Operation ON distance is 20mm Min, OFF distance is 50mm

• Max Contact Rating:  50W (AC); Max. Switching voltage: AC300V

• Max. Carrying Current: AC2.5A;  Max. Switching Current: AC0.5A

• Contact Resistance (Initial): 500mΩ

• Insulation Resistance:  10^8Ω Min.

• Breakdown Voltage:  DC250V Min.

• Electronical life: 10^7 operations Min.

• Shock Resistance: 30G Max

• Operating Temperature -10 ~80 ℃

• Housing:  ABS

• Color: white/brown

• Connecting mode: N.C.


• Suitable: mostly used for refrigeration refrigerators and air conditioning equipment  to detecting door gap by opening

• Package:

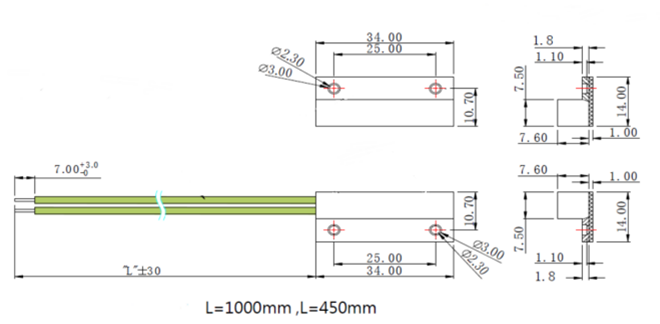

  Product Size: 34*14*7.6mm
  Inner packing:   20sets / PE
  Outer packing:  500 sets / carton
  Gross Weight:    14.5KG

Package Contents:

• Standard Exporting Packing Box
