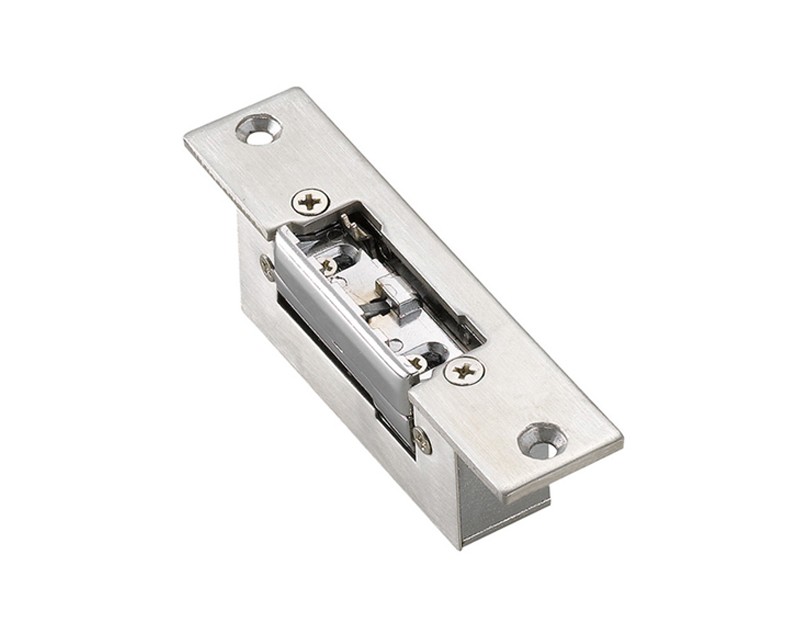

Narrow-type Electric Strike: ZDL-120NC/NO

Narrow-type Electric Strike

MODELZDL-120NC/NO

Facebook Twitter InLink instagram Youtube Skype
  • Holding Stength: 300kg

  • Narrow-type, Grey Color

  • Field selectable fail safe/fail secure

  • Aluminum, Stainless Steel Bolt, Painted Steel

  • Testing to 1000000 cycles

  • High-Temperature Painted, Duable and Beatiful Artical

  • Suitable For: Wooden Door,Metal Door,PVC Door

Narrow-type Electric Strike: Stainless Steel structure,adopt high quality parts, DC12V; Suitable For: Narrow Wooden Door,Narrow Metal Door etc


- Optional Model No.:
* Fail Safe(ZDL-120NC):     Power-off to Open
* Fail Secure(ZDL-120NO): Power-off to Lock


- Holding Stength: 300kg,Grey Color
- Aluminum, Stainless Steel Bolt
Field selectable fail safe/fail secure

- Testing to 1000000 cycles
- High-Temperature Painted,Duable and Beatiful Artical



Standard-type Electric Strike(图1)

  • Face plate Housing: Painted Steel
    Bolt Housing: Stainless steel,Draw the Polishing of silk

  • Voltage: DC12V; Current: 400mA

  • Feature: Fail Secure(ZDL-120NO); Fail Safe(ZDL-120NC)

  • Function: Built-out MOV

  • Holding Stength: 300kg

  • Opening Mode: 90 Degree Swinging Door

  • Suitable For: Narrow Wooden Door,Narrow Metal Door etc

  • Surface Temperature: Within +20℃; Suitable Temperature: -10~+55℃(14-131F)

  • Lock Size: 110Lx25Wx31H(mm); Strike: 45mm

  • Weight: 0.28kg


Package Contents:

  • Standard Exporting Packing Box
