Infrared Sensor Exit Button: ZDBT-802B
RF Touchless exit button with Remote Control

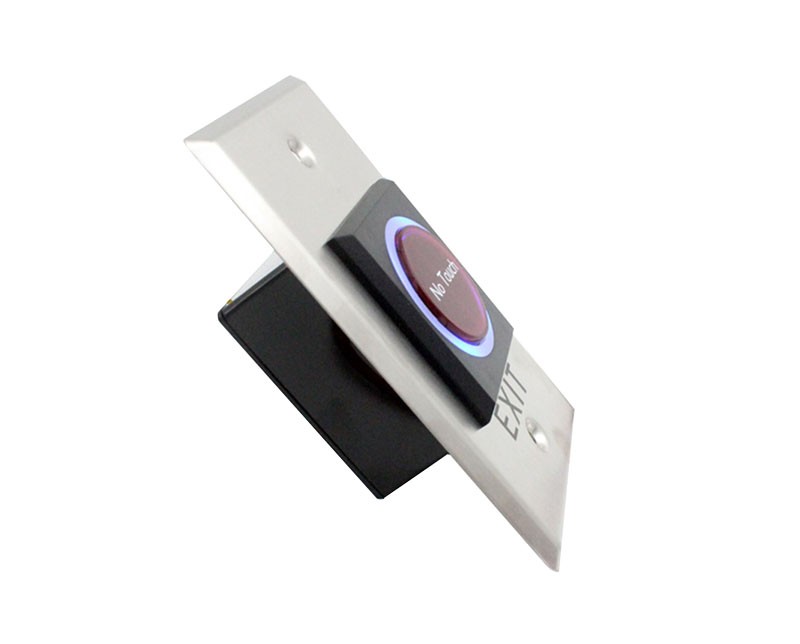

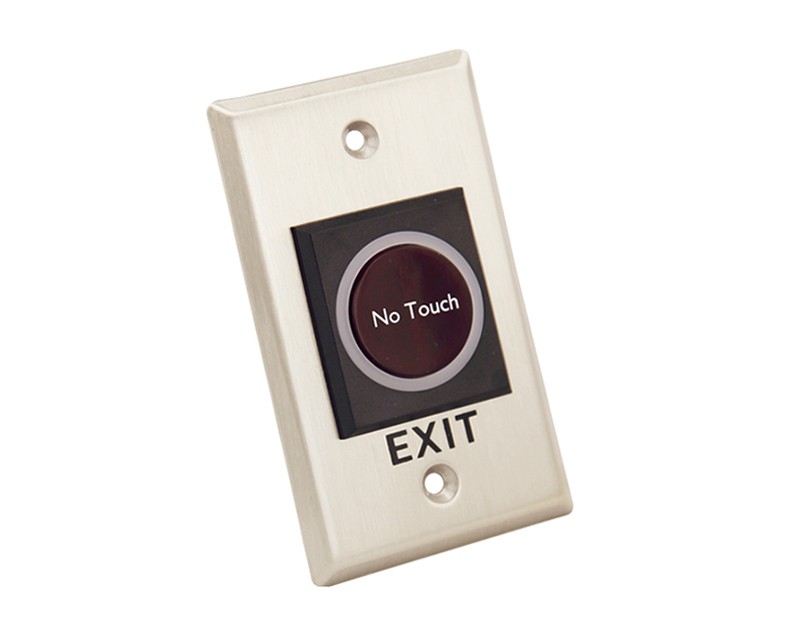

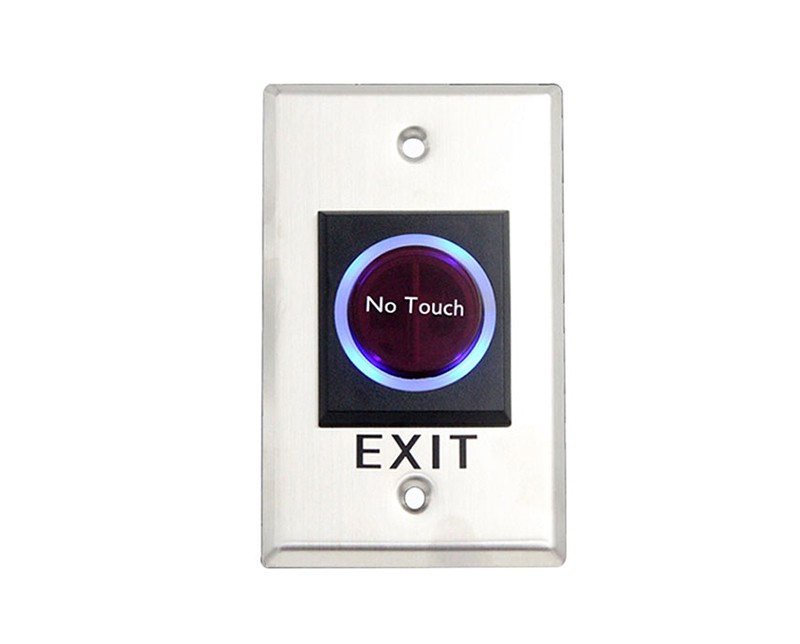

Multi-Angle View
Multi-Angle View
Multi-Angle View

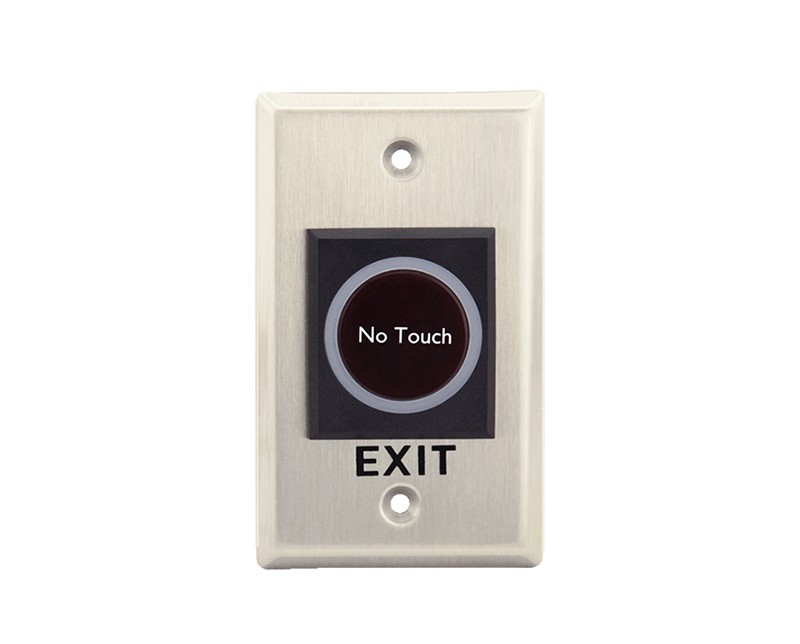

Infrared Sensor Exit Button

MODELZDBT-802B

Facebook Twitter InLink instagram Youtube Skype
  • nsor No Touch Door Release Button

  • Output Contact: NO/NC/COM

  • Blue LED Lighting

  • Input: DC12V

  • Induction distance: 5-15cm.

  • Stainless Steel single gate plate

  • Suitable for all kinds of locks.

Infrared Sensor No Touch Door Release Button: Infrared Sensor, No Touch exit Button, Stainless steel Panel with Elegant Style. Tested to 500000 Cycles. NO\NC\COM output contact, User can choose N.O, N.C, COM terminals to get access to system application accordint to using station, Suitable for all kinds of Locks.The Best Choice for  Access Control.

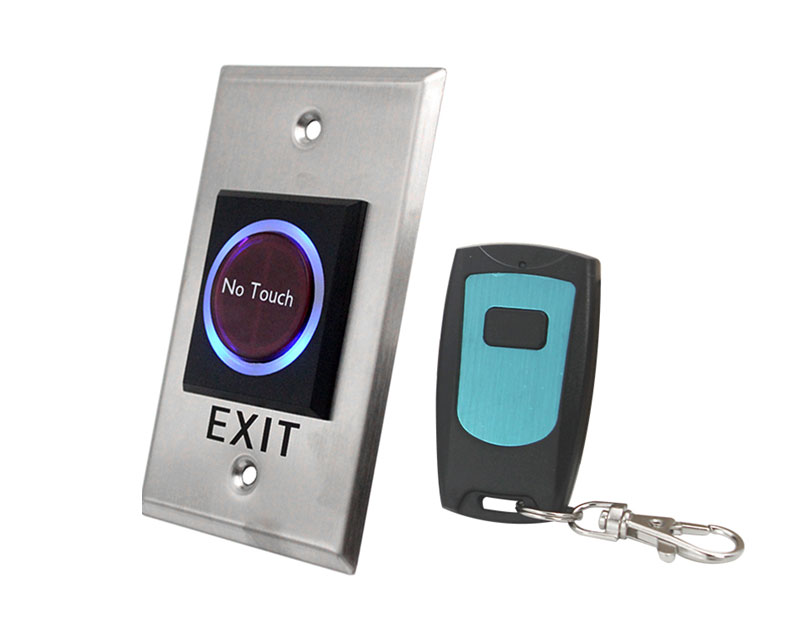

- Optional RF Touchless exit button: ZDBT-802BR (with Remote control)

Infrared Sensor Exit Button(图1)Infrared Se

- Infrared Sensor No touch, Optical / Infrared Technology
- Durable stainless steel plate
- Output Contact: NO/NC/COM
- Mechanical Life: 500000 tested
- Suitable for Gate/Door/Exit/Automation control


Infrared Sensor Exit Button(图1)

  • Input Volt.: DC 12V; Contact Rating: 12-28V,3A

  • Output Contact: NO/NC/COM

  • No touch / Touch free Exit Sensor (Diffused Detection)

  • Material: 304 Stainless steel Plate

  • Detection range: 0.1 ~ 10 cm

  • Operating temp: 10~+55℃(14-131F)

  • Operating Humidity: 0-95% (non- condensing)

  • Led Indicator
    White LED indicator: Power OFF
    Blue LED indicator: Power ON(standby)
    Red LED indicator: Power ON(sensation)

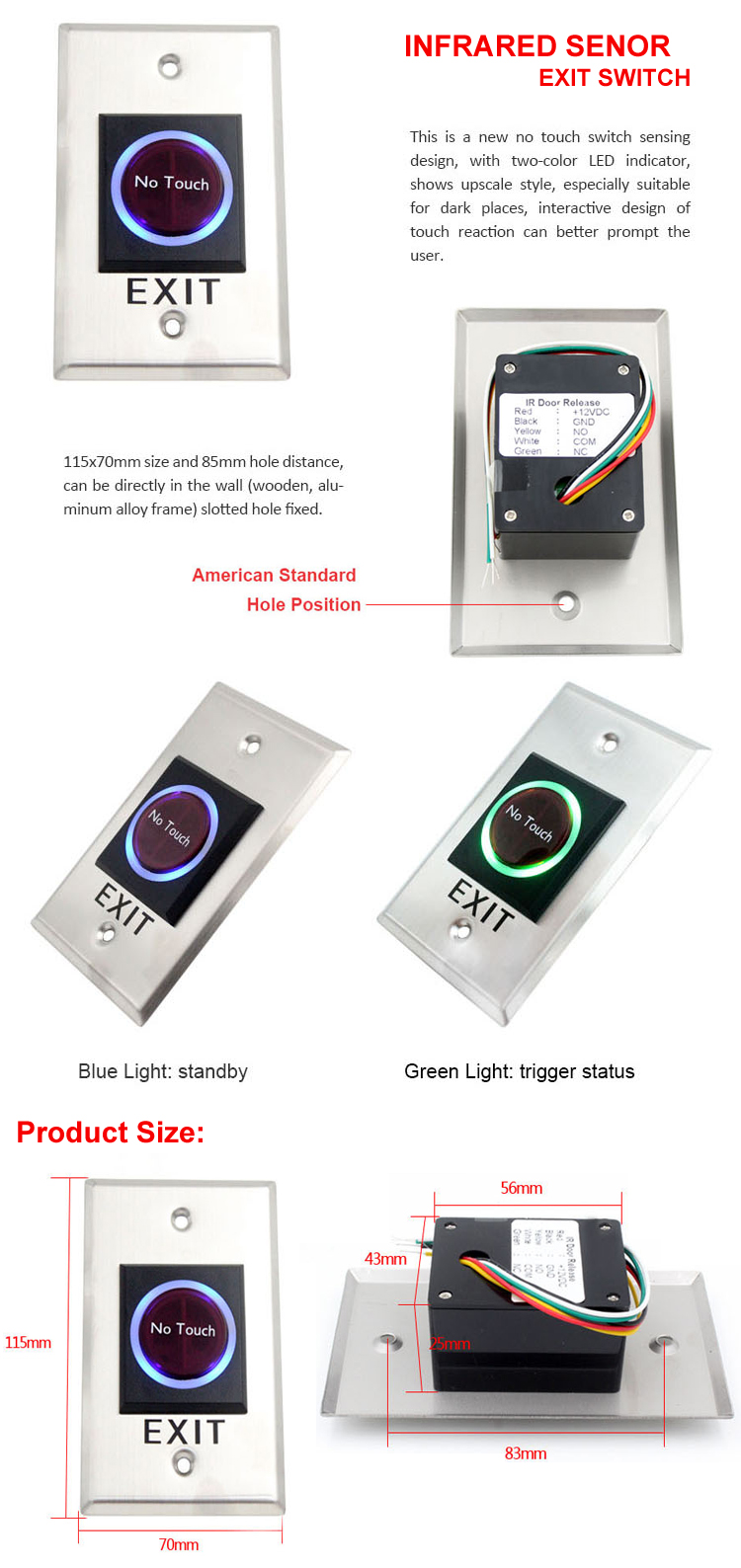

  • Product size: 115Lx70Wx25H(mm), Weight: 0.18g

  • Packing Size:  14.5*9.3*4.8CM,  Weight: 0.1KG.



Package Contents:

  • Standard Exporting Packing Box
