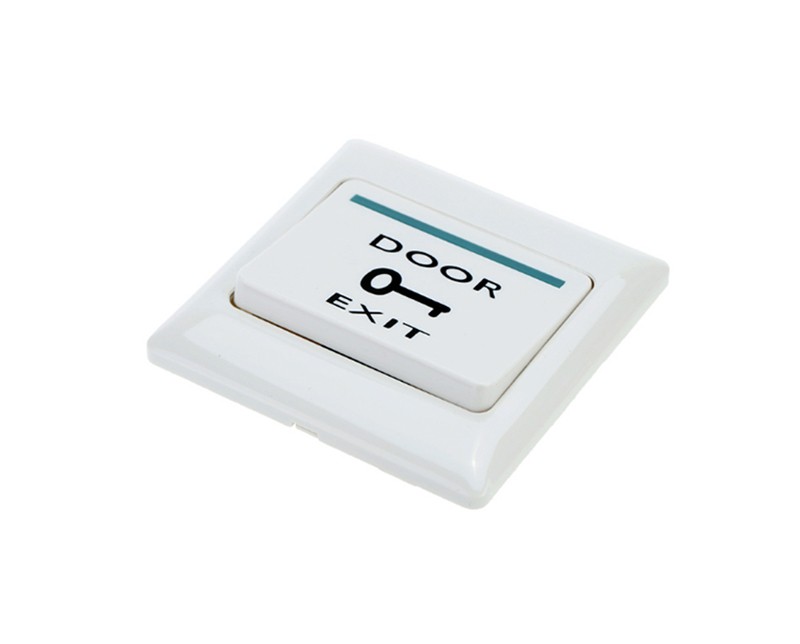

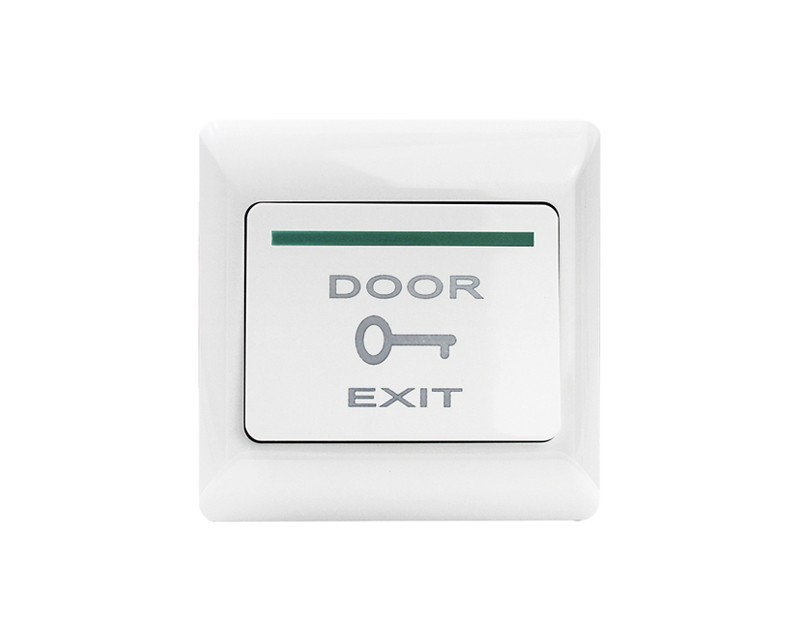

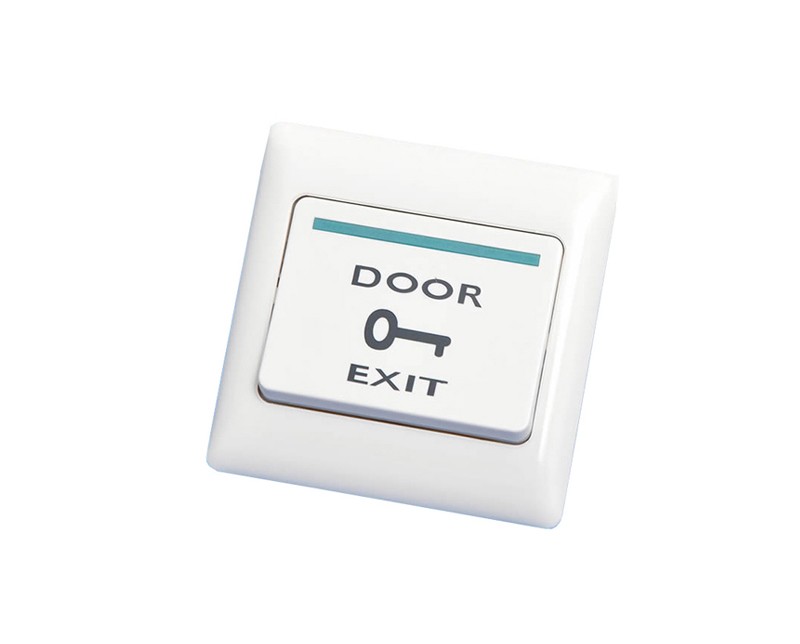

Door Release Button:  NO. output, Recessed Intallation, Auto reset, Fireproof Material, ABS Plastic Housing,Can be used as door release button

- Optinal model: ZDBT-A5S (Surface installation)

- Auto reset, ABS Plastic Housing, 100000 times life
- Fireproof Material  Structure

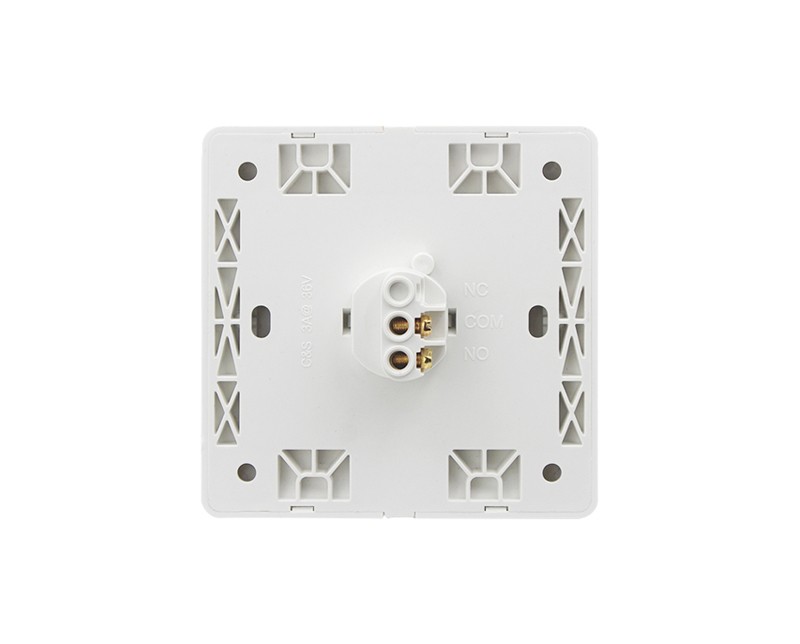

- Output Contact:  NO. (NC.&NO.contact can be customized)
- Can be used as door release button

• On-off mode: automatic reset

• Contact Output: NO. (NC.&NO. contact can be customized)

• Current Rating:  3A 36VDC Max

• Suitable for Door: Concealing Box

• Operating temp: 10～+55℃(14-131F)

• Operating Humidity: 0-95% (non- condensing)

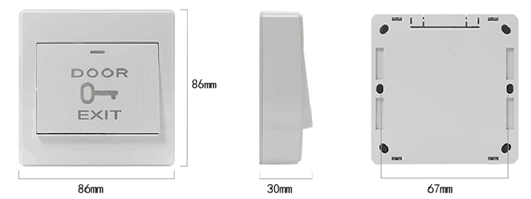

• Dimension：86×86mm; Weight: 0.15kg

• Packing size: 19.5*15*9.5cm,10pcs/CTN; Weight: 0.15kg

Package Contents:

• Standard Exporting Packing Box
