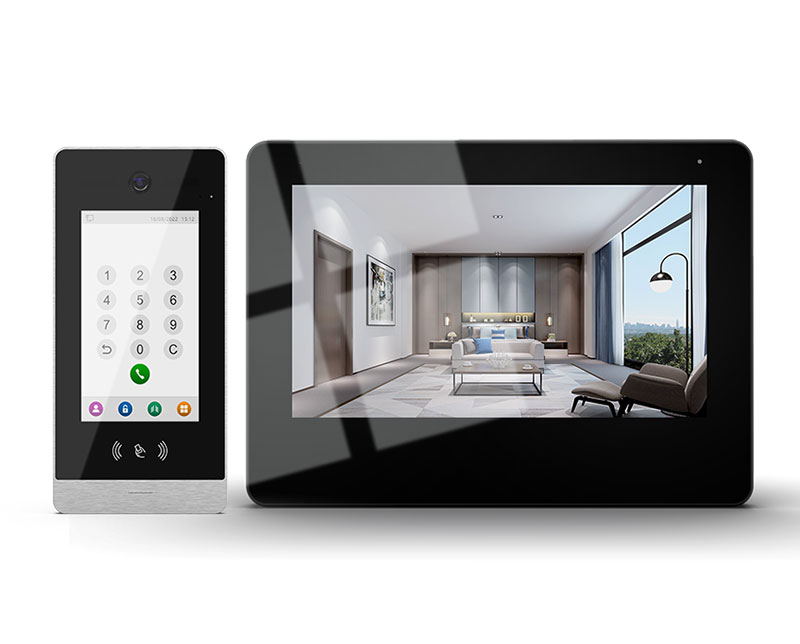

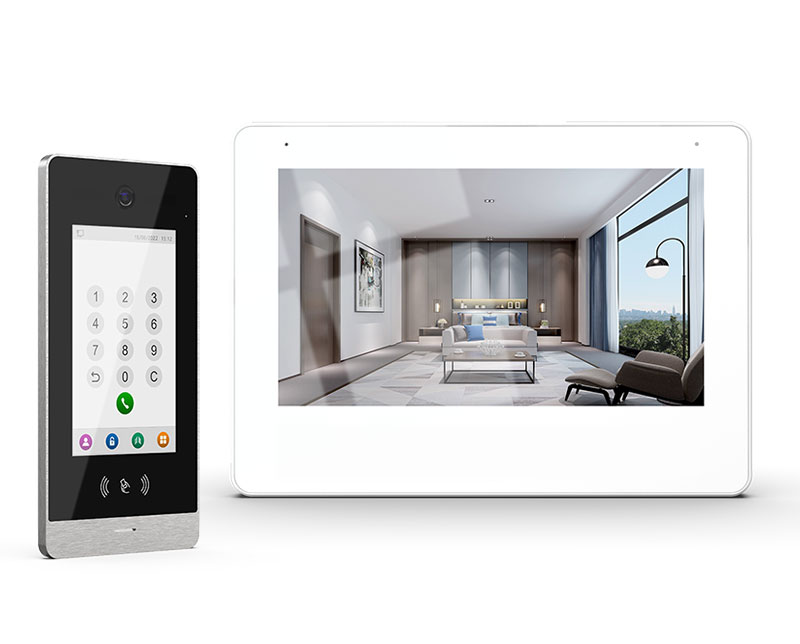

TCP/IP Apartment Intercom System: ZDVP-M07P+ZDVP-OC03

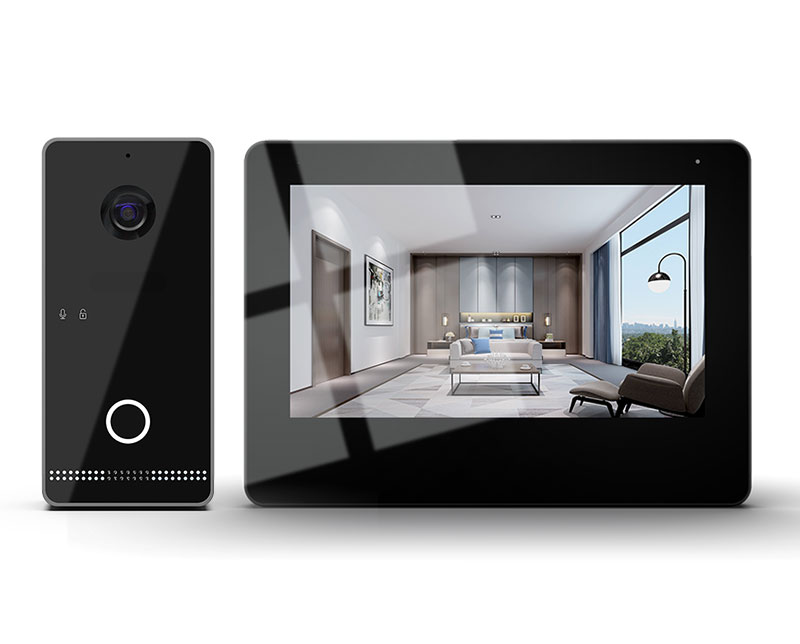

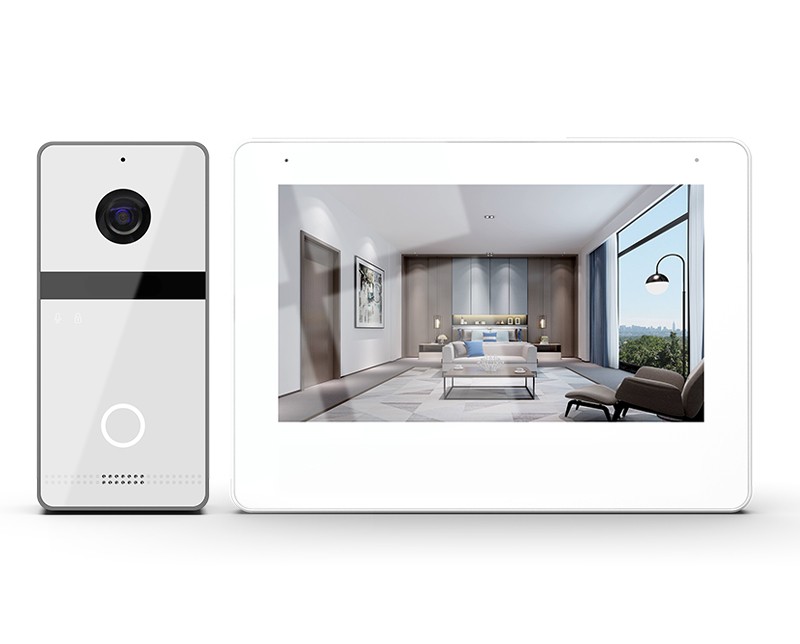

Villa Intercom System: ZDVP-M08NP+ZDVP-OC02

TCP/IP Apartment & Villa Intercom System

MODELZDVP-M08NP

Remote Control to unlock your door from anywhere, anytime.
8" TFT LCD, IPS1280*800 high resolution
2MP HD smart IR camera
POE power supply
Water-proof outdoor station
Smart APP control with easy to operation
Two-way real-time intercom

GET A FREE QUOTE

Overview Features Specifications Other Information

TCP/IP Apartment & Villa Intercom System -POE Solution: 8" TFT Indoor monitor with IPS1280*800 high resolution, 2MP HD smart IR outdoor waterproof camera,POE power supply for Easy installation,Visitor calling, Video intercom, Monitoring, and Electric lock-control function. It can be widely used in apartments, villas, hotels and offices etc.

- Model list:

* ZDVP-M08NP: 8" monitor with built-in wifi module & NVR function.

* ZDVP-M07P: 7" monitor without built-in wifi module & NVR function.

* ZDVP-OC02: IP video intercom panel for Villa Use(1 family)

* ZDVP-OC03: IP video intercom panel for for multi-family (Support max. 9999 family)

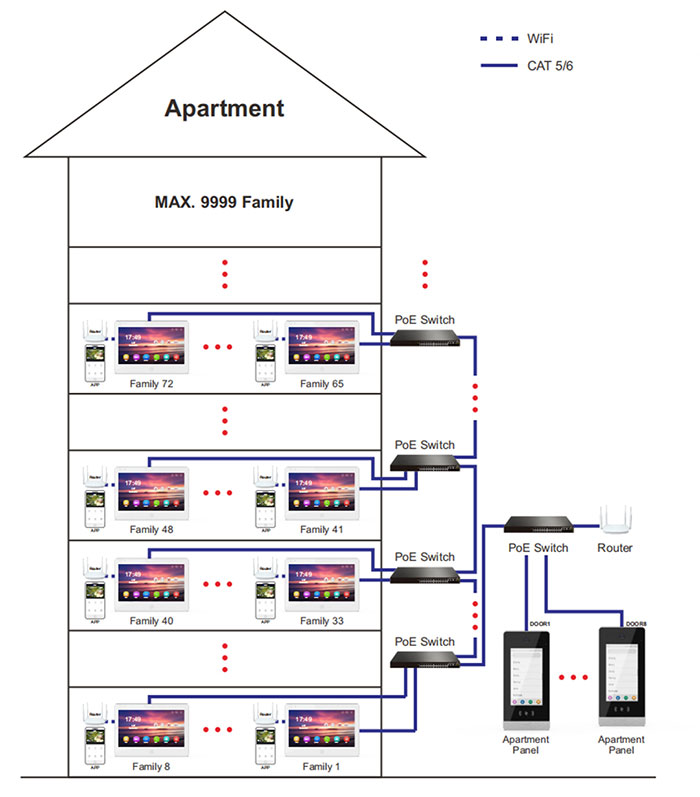

- System Wiring Diagram:

TCP/IP Apartment & Villa Intercom System(图1)

TCP/IP Apartment & Villa Intercom System(图2)

- Indoor Monitor: ZDVP-M08NP

Operation system：Embedded linux operation system

Display resolution：8"-IPS1280*800

Operation method：8" touch screen

Audio intercom mode：Full duplex

Wire network：10/100 Mbps adaptive Ethernet

WiFi：2.4G&5G 802.11 a/b/g/n

Mobile APP：Smart Life (iOS, Android)

External Memory：Micro SD card, up to 128GB

Support pixels：

Main stream support Max 5MP 25FPS camera

Sub stream support Max 1MP 30FPS camera

Video compression standard：H.265 (default), H.264

Internal memory： Support

Motion detection：Support

Human Detection：Support

Video recording：Support

POE power supply|DC15V 0.8A|AC100-240V 50/60Hz (Optional)

- Outdoor Camera: ZDVP-OC03

IP video intercom panel for multi-family

7" IPS HD touch screen 1024*600

2MP HD smart IR camera

Wide view angle 125°

Support H265 & H264

Support max. 9999 family

Touch calling directly

Full duplex communication

Support keypad & RFID unlock

Support EXIT button unlock

Support WG and alarm tamper

Support gate and door unlock

Metal body and tempered glass face panel

Protection: IP65 & IK07

Support flush mount

POE & DC15 0.8A power supply

- Outdoor Camera: ZDVP-OC02

IP video intercom panel for Villa Use

2MP HD smart IR camera

Viewing angle 125°

Support web configuration

Touch call button for 1 family

Support gate and door two locks

Surface mounting

Support tamper alarm

Support door contact

Protection: IP65 & IK07

Standard PoE / DC15V 0.8A

Outdoor Camera	ZDVP-OC03
Apartments Max.	9999
Operation system	Embedded linux operation system
Display resolution	1024x600
Operation method	7" touch screen
Angle of view	H:125°, V:72°
Video compression standard	H.265 (default), H.264
Noise reduction	3D noise reduction
Supplement light	IR supplement
Video frame rate	Main stream: 1920x1080p, 720p, Sub stream: 640x360
Audio intercom mode	Full duplex
Network interface	10M / 100M adaptive belt POE
Network protocol	TCP/IP, RTSP
Gate	NO (MAX AC/DC30V 4A)
Lock control	NO/NC (MAX AC/DC30V 4A)
Exit button	Support
Door contact input	Support
Tamper alarm	Support
RFID	125KHZ / Em marine / Supports ISO/IEC 18000-2 type A (Optional )
	13.56MHZ / Mifare / Supports ISO/IEC 14443 type A 106kb/s (Optional ) (Optional 2)
	Number of cards supported: 10000
	Card reading distance: ≤2cm
Protection grade	IK07; IP65
Power supply	POE IEEE 802.3af / DC15V, 0.8A
Power consumption	≤5.5W (Standby), ≤9.5W (Working)
Working temperature	-40°C to +60°C (-22°F to +140°F)
Working humid	10%RH– 90%RH (non-condensing)
Product size	268x128x26mm
Outdoor Camera	ZDVP-OC02
Processor	High-performance embedded SOC processor
Operation system	Embedded linux operation system
Lens	1/2.8" 2MP CMOS low illumination camera
FOV	H:125° ,V:72°,D:150°
WDR	Support
Video compression standard	H.265 (default), H.264
Noise reduction	3D noise reduction
Supplement light	IR supplement
Pixel	Main stream: 1920 × 1080p, 720p, Sub stream: 640x360
Audio intercom mode	Full duplex
Audio compression standard	G.711 U
Audio compression rate	64 Kbps
Audio quality	Noise suppression and echo cancellation
Specification of microphone	-38dB±2/2V
Communication protocol	TCP/IP, RTSP
Wired network	10M / 100M adaptive belt POE
Network interface	1
Tamper	1
Gate	NO/NC (MAX AC/DC30V 4A)
Output unlocking	DC12V(Transient current:700mA-40ms， Continuous current 120mA)
Exit button	1
Door contact input	1
Power interface	1
Button	1
Indicator	2
Protection grade	IK07; IP65
Power supply mode	POE IEEE 802.3af / DC15-48V / AC 12-36V
Power consumption	≤3W (Standby), ≤4.5W (Working)
Working temperature	-30°C to +60°C
Working humidity	10%RH– 90%RH (non-condensing)
Installation method	Surface mount
Product size	1346327mm
Indoor Monitor	ZDVP-M08NP
Operation system	Embedded linux operation system
Display resolution	1280x800
Operation method	8" touch screen
Audio intercom mode	Full duplex
Monitor connection	10
Outdoor station connection + CCTV camera connection	8
Wire network	10 / 100 Mbps adaptive Ethernet
WiFi	2.4G&5.8G 802.11 a/b/g/n
Mobile APP	Tuya Smart (iOS, Android)
External memory	Micro SD card, up to 512GB
Support pixels	Main stream support Max 5MP 25FPS camera Sub stream support Max 1MP 30FPS camera
Video compression standard	H.265 (default), H.264
Network protocol	TCP/IP, RTSP, SIP
Internal memory	Support
Motion detection	Support
Human Detection	Support
Video recording	Support
4 split screen recording	Support
Customized ringtone	ACC
Customized background	Support
Power supply	POE IEEE 802.3af / DC15V, 0.8A
Power consumption	7W(Max), 3W(Standby)
Working temperature	-10°C to +50°C
Working humidity	10%-90%
Product size	200x149x6.5mm(23MM)
