Remote viewing by smartphone anywhere
HD 2.0 Megapixel CMOS image sensor
166° wide viewing angle
Super Low power standby up
Day/Night - with infrared night vision.
Support 2-Way audio
Support SD card up to 64GB/cloud storage
IP65 protection grade

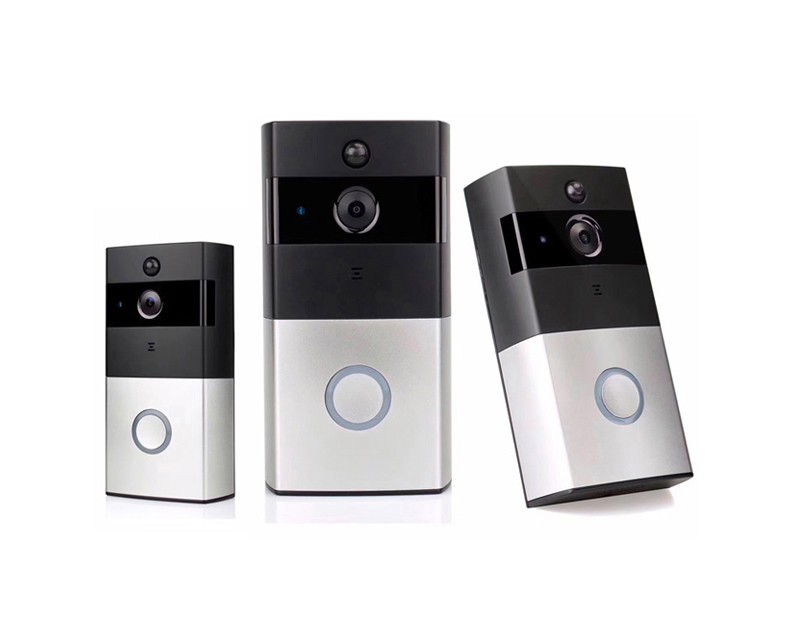

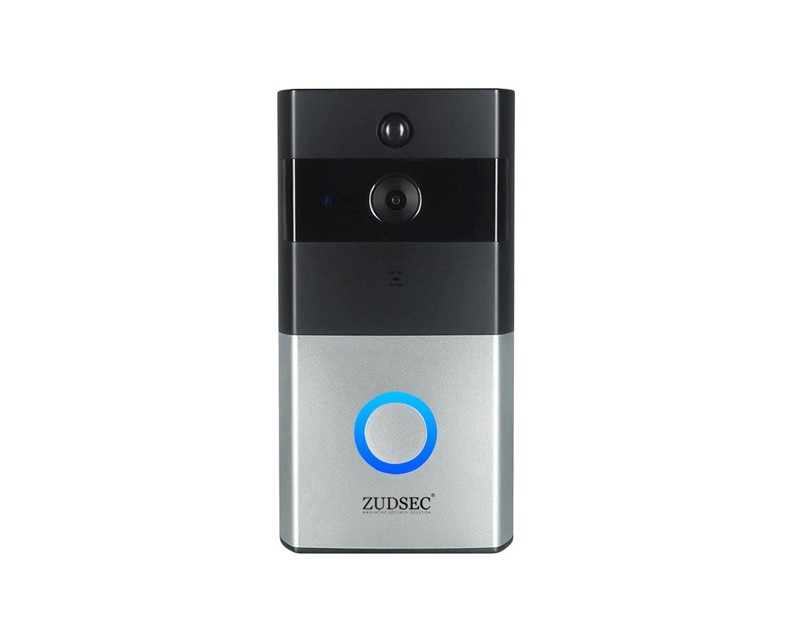

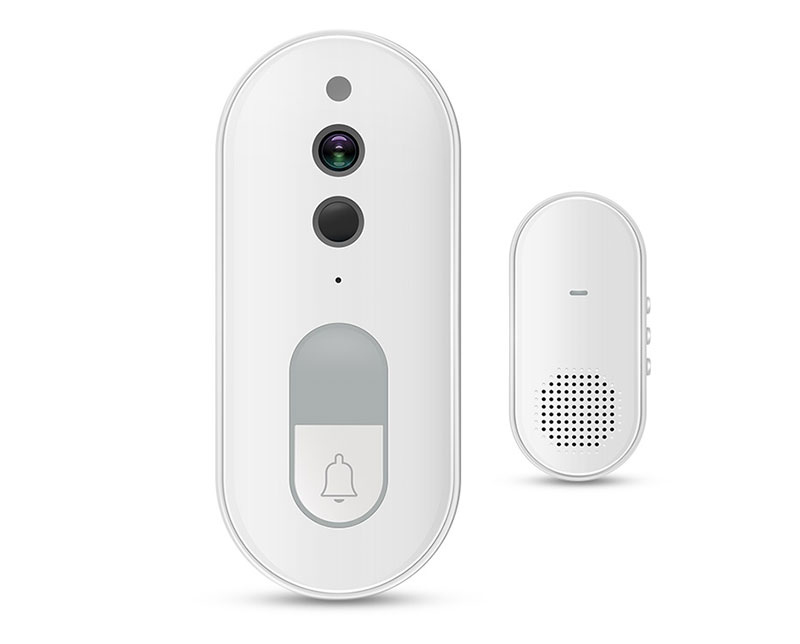

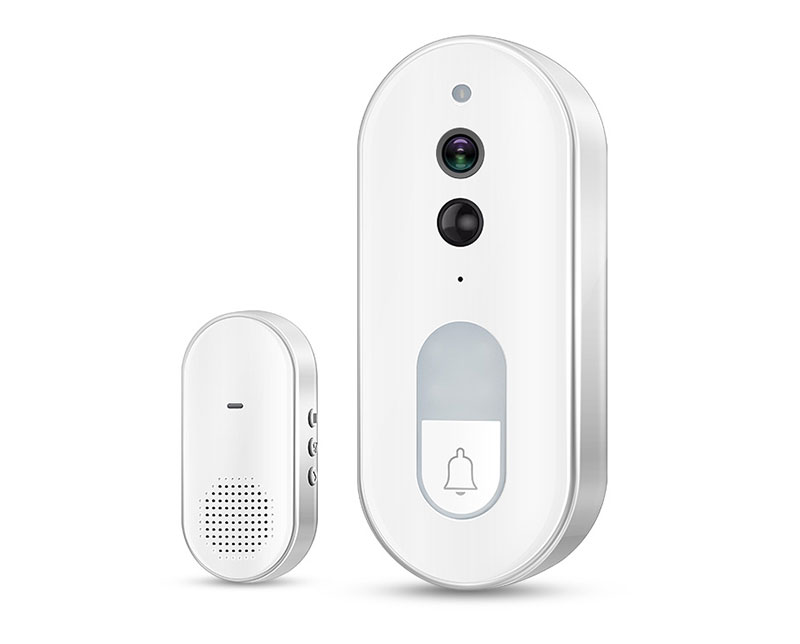

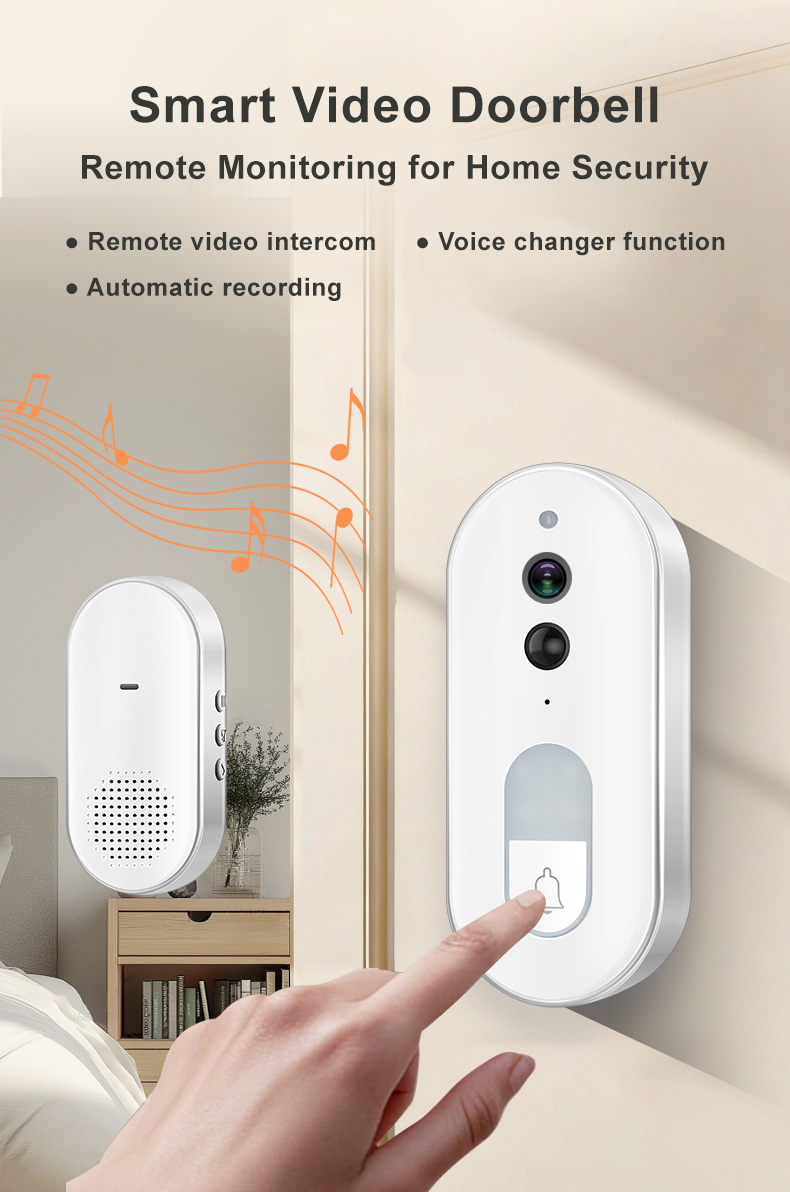

Smart HD WiFi Battery Doorbell: Wide-angle HD video, Rechargeable Battery, Night Vision with a motion-activated camera, Two-Way Audio and brilliant HD video,Easy Installation, No wiring needed, totally Wire-Free, set up your Doorbell in minutes. You’ll never miss a visitor again. See, hear and speak to anyone at your door in real time from your smartphone. Day or night, rain or shine-you’re always home.

- See, hear and speak to anyone
-
Get instant alerts when visito
-
Watch over your home in crysta
-
Protect your home-day or nig
-
Communicate with visitors via
-
Check-in on your property at a
- Runs off the internal battery,
- HD 2.0 Megapixel CMOS image sensor
- 166°wide viewing angle
- With low power rechargeable battery consumption,

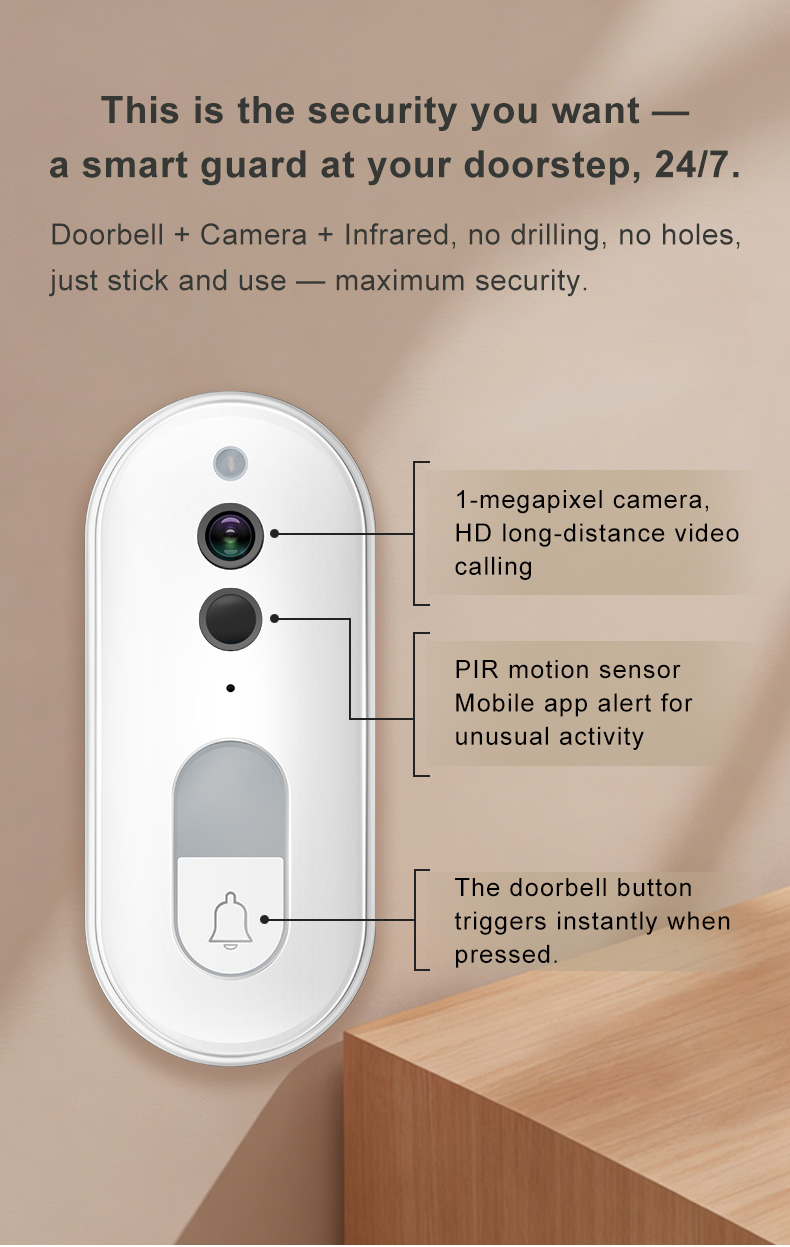

- With PIR monitoring, advanced motion sensor and alerts.

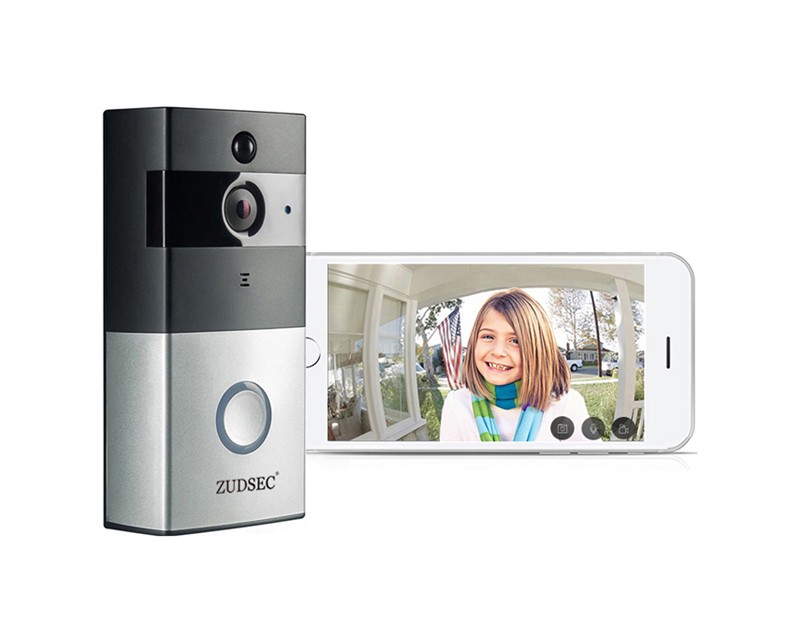

- Support remote viewing by smartphone anywhere

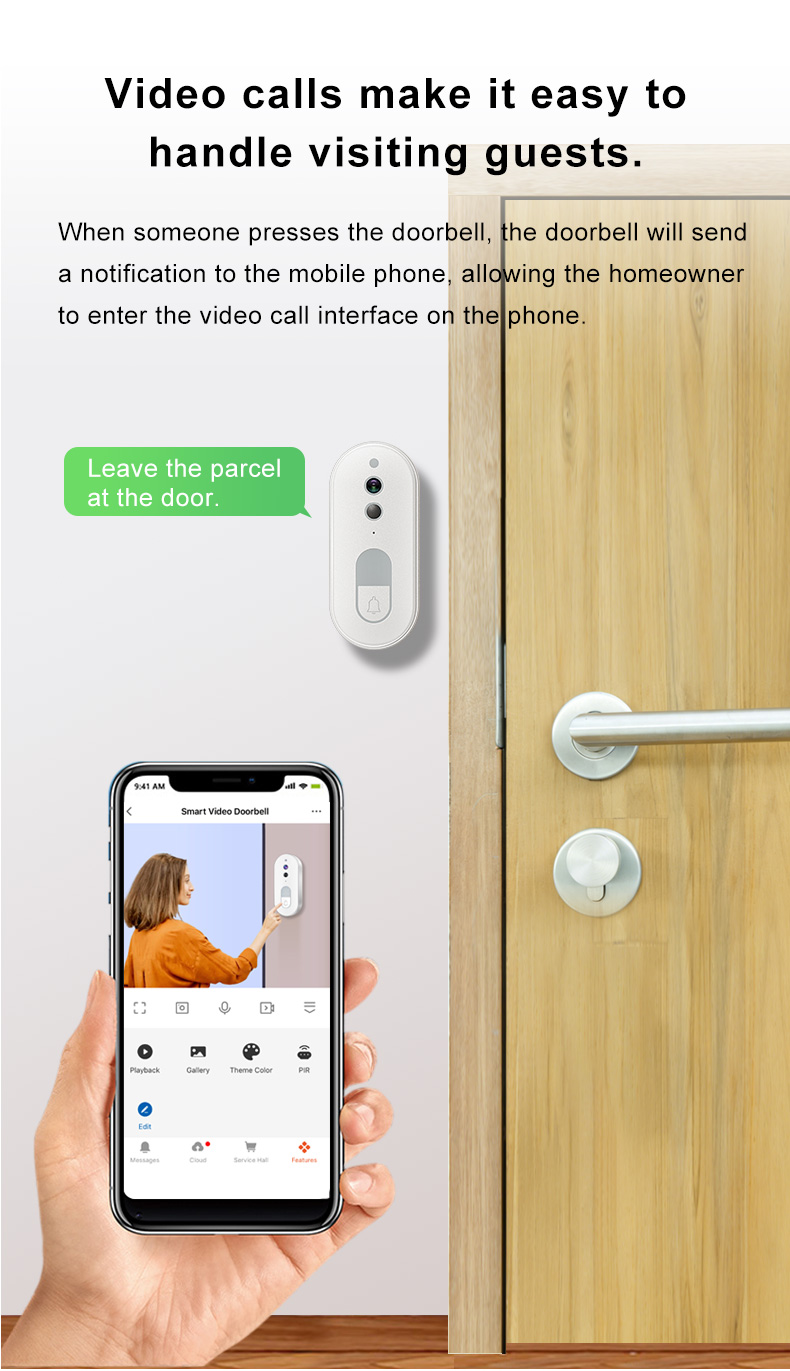

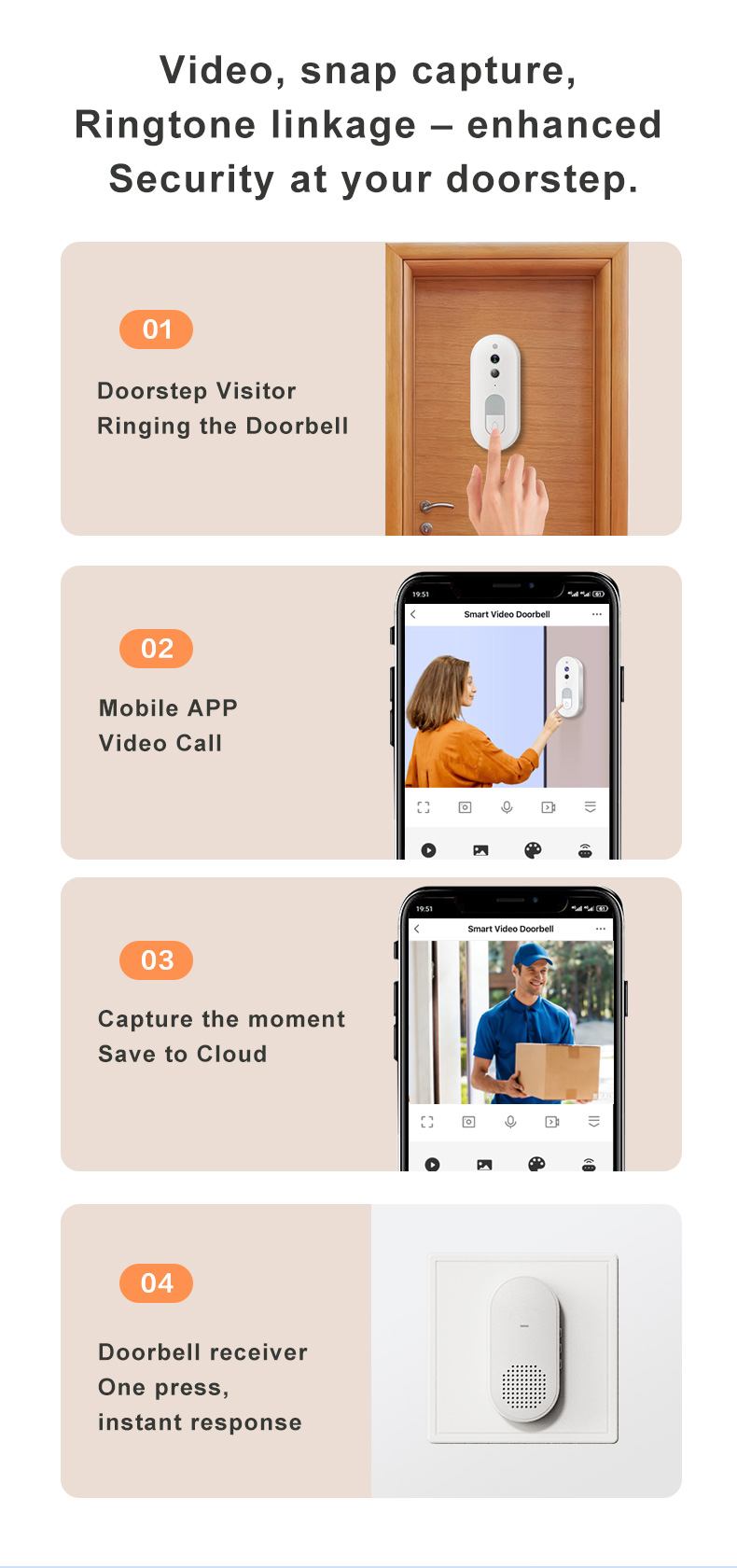

- Immediate notification push to your smartphone APP 1-2s
- Support playback, view recorded videos
- Support SD card up to 64GB/cloud storage

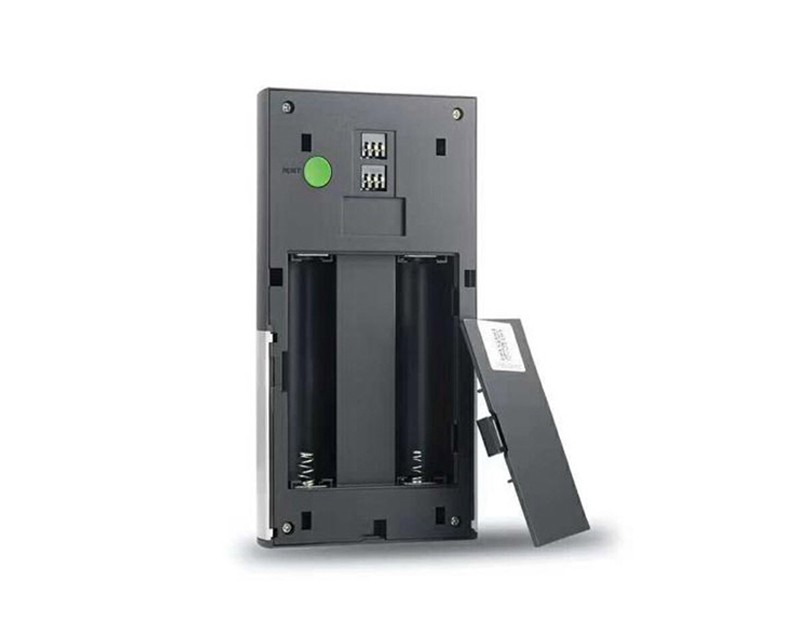

- 2×18650 lithium battery (AC8V-24V)
- IP65 protection grade
- Wi-Fi compatible,W




| Model | ZDVP-007WF |
| Sensor | 1/2.8 COMS F23 |
| Main Processor | Hi3518E |
| Video | 1920*1080@25fps |
| H.264 Bitrate self-adaptive | |
| Suitable for changeable network environments(3G,4G or WIFI) | |
| Audio | Two-way voice & Support echo cancellation |
| Built-in speaker | |
| Built-in Microphone | |
| View Angle | 166 degree Horizontal |
| Day & Night | IR-CUT double filter automatically switches |
| 6pcs infrared LED 850mm | |
| Min Illumination:1 Lux | |
| Connection | Support WiFi 2.4 GHz, IEEE 802.11 b\g\n |
| AP Hot spot | |
| Scan QR code | |
| Storage | Support SD card 8G / 16G / 32G |
| Recording | Support smart phone local record, records video playback |
| Optional recording time setting between 15s-45s, once doorbell triggered | |
| Screen Shot | Support Smart phone screen shots |
| Working Condition | Press Button Directly |
| PIR detection triggered | |
| Mobile phone Control | |
| Running up | System running up in millisecond |
| Inform | Push message within 1s-2s |
| Motion Detection | PIR motion detection, sensitivity High(2s)/ Medium(within 5s)/ Low (within 10 s) |
| Scene Mode | Backlight compensation |
| Infrared night vision | |
| Quick movement | |
| HLC | |
| D-WDR | |
| Share | Support QR code share(one-click generates QR-code, share to others |
| To add your doorbell devices, join in remote control. Maximum supports 7 authenticated users, supports users 3 view at the same time | |
| Battery | 3.7V, 2pcs 18650 battery, 3350mAH, Rechargeable or (14V~24V AC charging) |
| Power Consumption | Working 170mA, Standby 160μA |
* Packing size: 19*11*7.5CM; Gross Weight: 0.35kg/pc
* Outer packing: 44*39.5*39cm; 40pcs/carton; Weight: 16.9kg/Ctn
Package Contents:
Standard Exporting Packing Box
