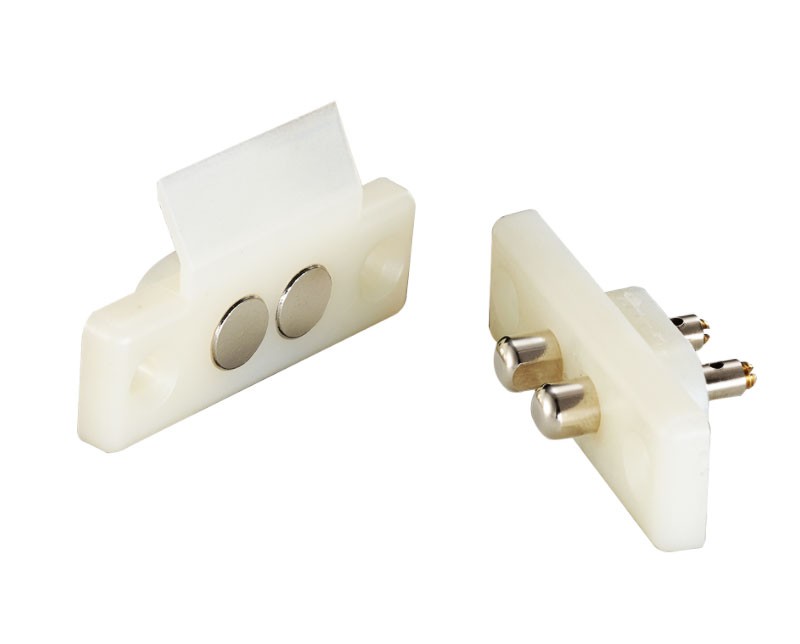

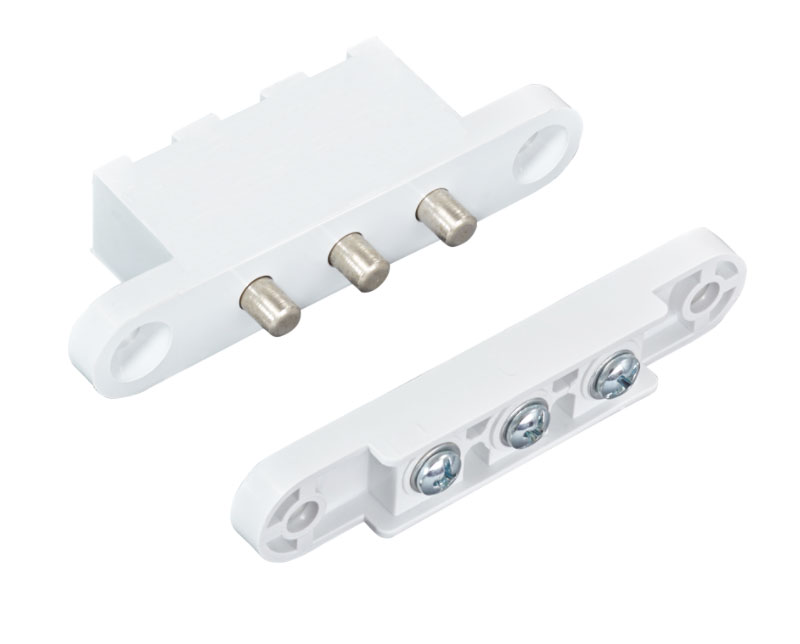

Door loop Tappet contacts : The Tappet Contacts.which adopts the Special high temperature resistant and wear resistant material.The material of Contact Material is Plated brass.The Max. Voltage between the range of 0-36VDC/VAC,the Max. Current achieves 5A.
- Adopts the Special high temperature resistant and wear resistant material.
- Convenient for special installtion
- Speciallty use for the access control project
| Model | ZDDL-301 | ZDDL-201 |
| Material Selection | High Strength Aluminum, Sandblast Finished |
| Suitable for Door | All Kind of Single Door & Double Doors |
| Max. Current | 5A |
| Max. Voltage | 0-36VDC/VAC |
| Contact Material | Plated brass |
| Weight | 0.06KG | 0.06KG |

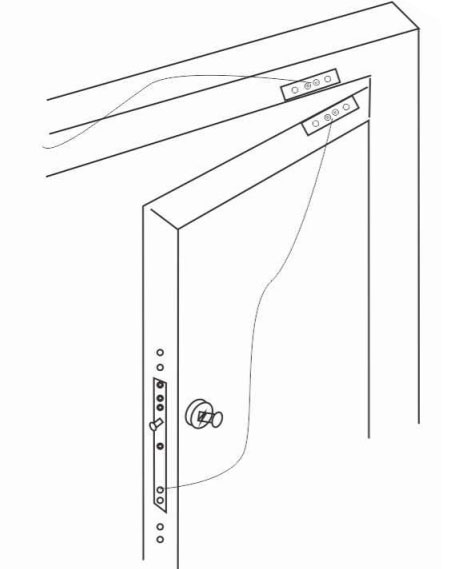

Installation: Link on the door leaf and door frame without wires.
