WiFi Glass Door Fingerprint Lock: ZDSL-108F
Multi-Angle View
Multi-Angle View
Multi-Angle View
Multi-Angle View

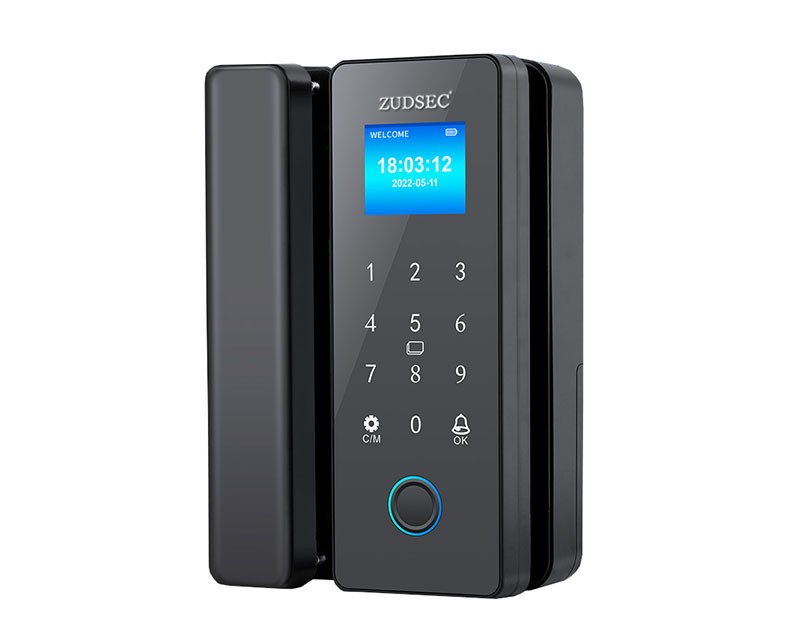

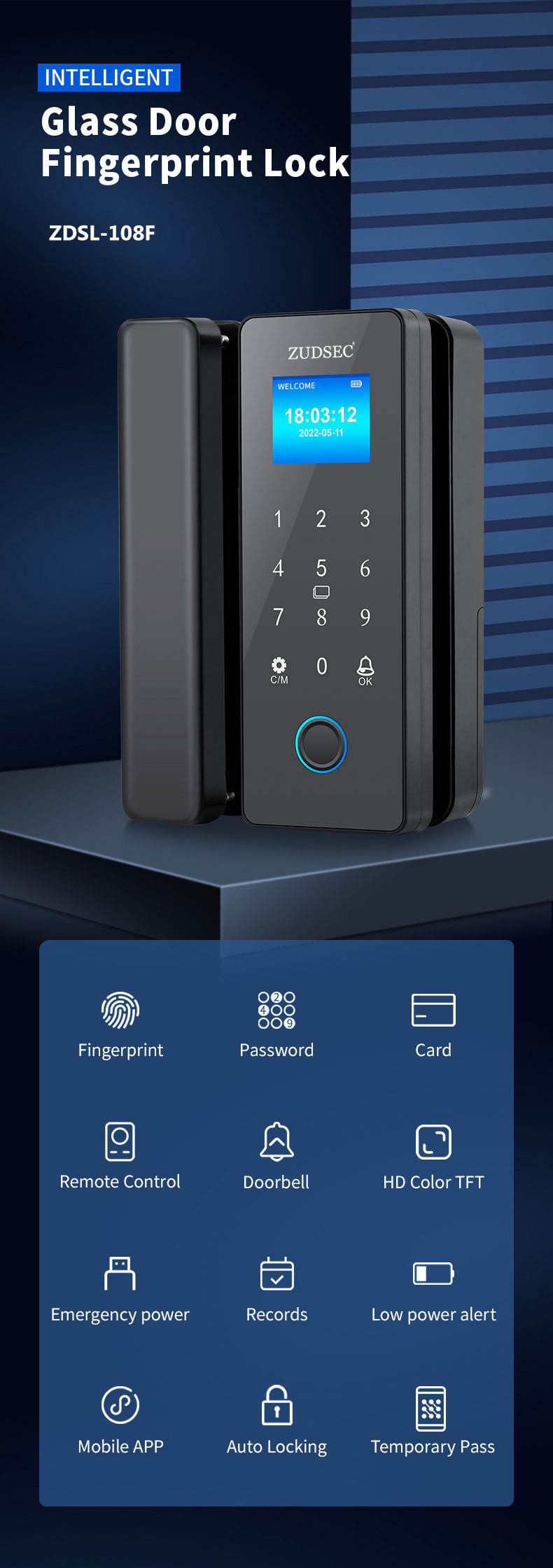

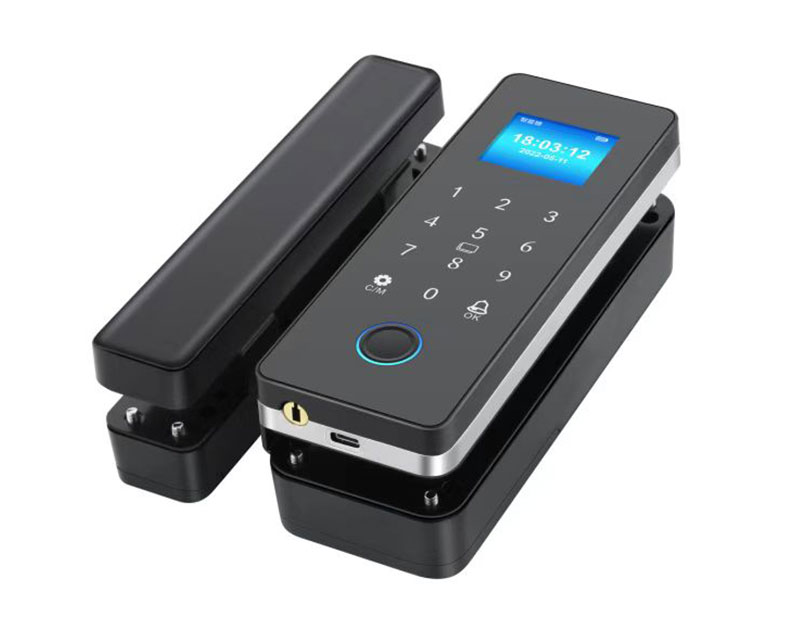

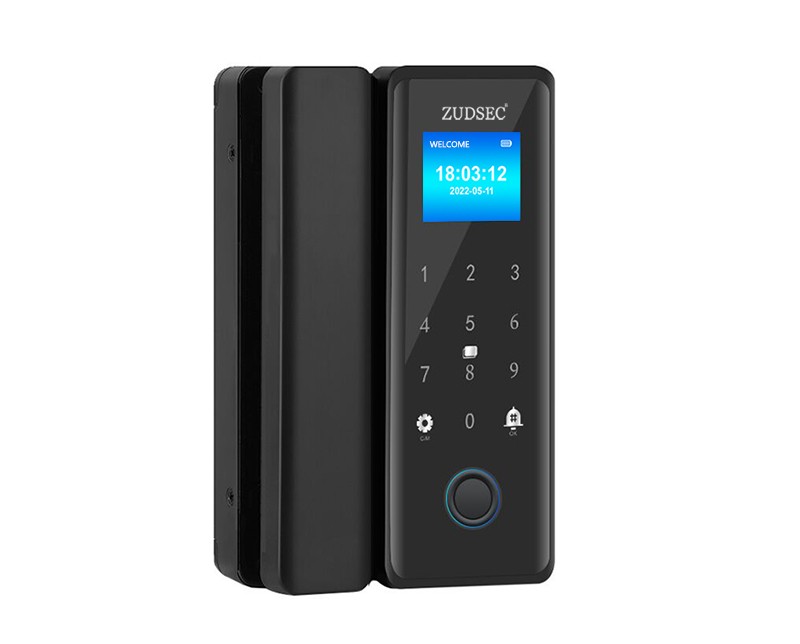

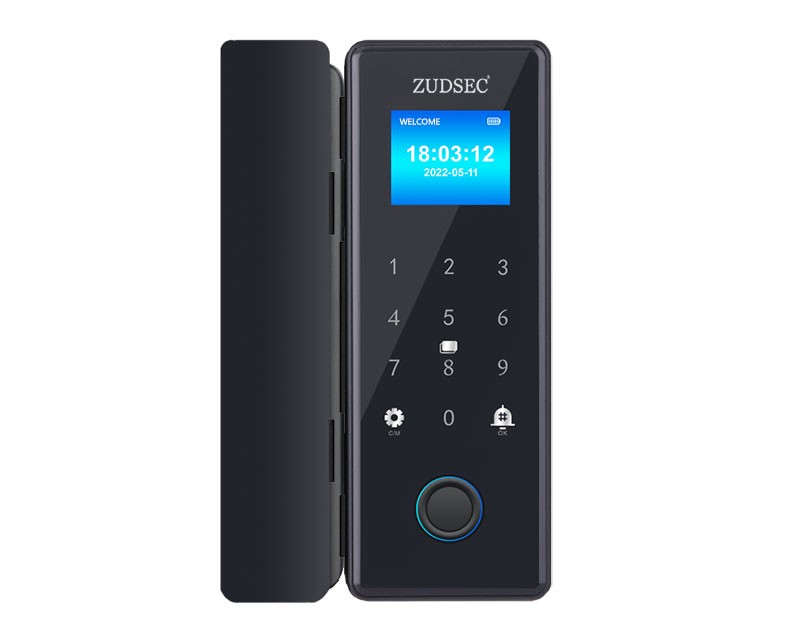

Intelligent Glass Door Fingerprint Lock

MODELZDSL-108F

Facebook Twitter InLink instagram Youtube Skype
  • Multiple unlock mode: Fingerprint, password, IC card, temporary password

  • Display: 1.77 inch color TFT

  • Fingerprint capacity: 100(Capacitive)

  • Card + PW + remote capacity: 1,000

  • Easy installation, no need any take hole.

  • Time attendance, Buitl-in doorbell,  auto-locking

  • Smart mobile APP control.

Intelligent Glass Door Fingerprint Lock:  Easy to install, 1.77 inch color TFT display, doorbell, auto-locking, High performance semi-conductor fingerprint sensor, with Smart life mobile APP control, Time attendance records can be reviewed on the mobile, or exported to EXCEL file. ZDSL-108F can be widely used for double frameless glass doors, single frameless glass doors and framed glass doors (with different accessories) in the offices.



Intelligent Glass Door Fingerprint Lock(图1)

Intelligent Glass Door Fingerprint Lock(图2)

Intelligent Glass Door Fingerprint Lock(图3)

Intelligent Glass Door Fingerprint Lock(图4)

Intelligent Glass Door Fingerprint Lock(图5)

Intelligent Glass Door Fingerprint Lock(图6)



- Multiple unlock mode:  Fingerprint, password, IC card, temporary password

- Display: 1.77 inch color TFT

- Fingerprint capacity: 100(Capacitive)

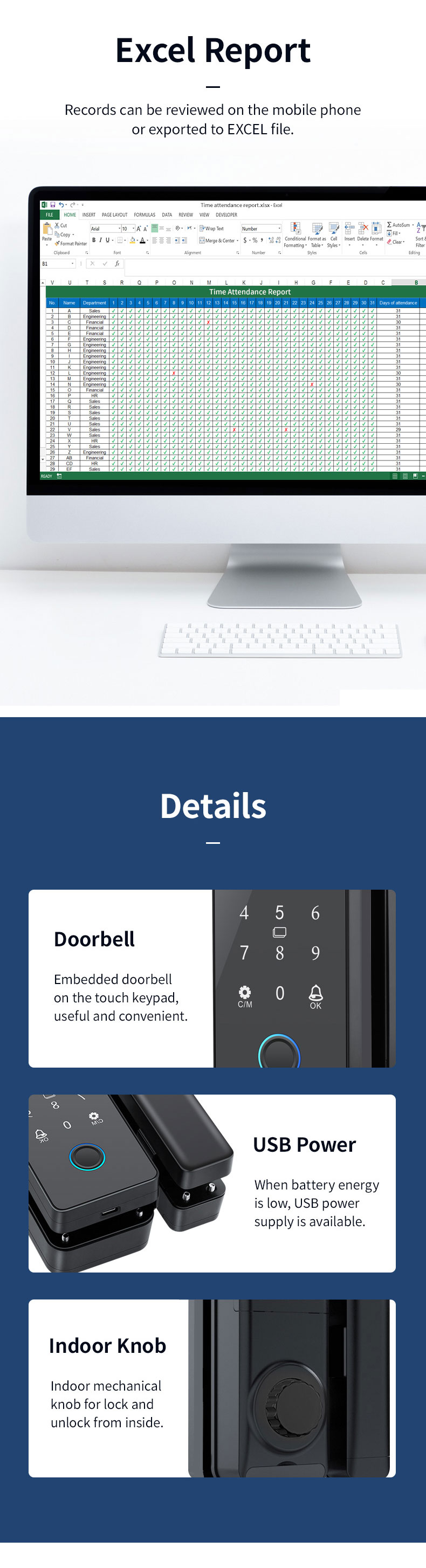

- Time attendance records can be reviewed on the mobile, or exported to EXCEL file.

- Smart life mobile APP Control

- High sensitive full touch keypad with backlight, easy use even in the darkness.

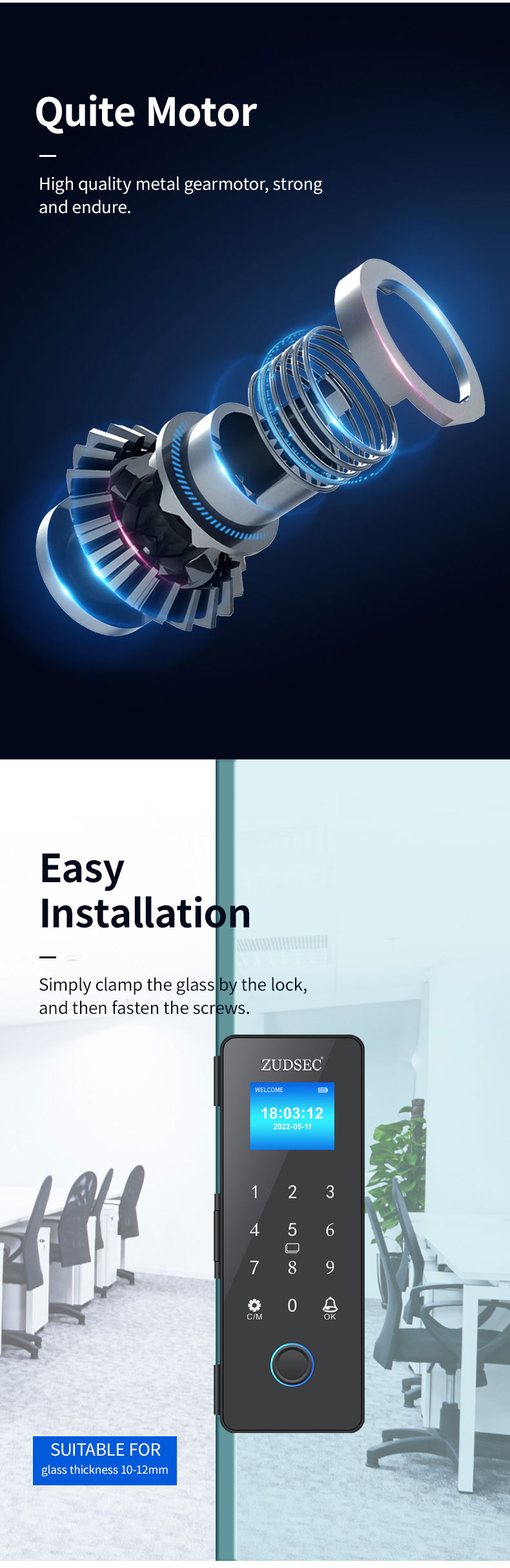

- Support DIY installation just with a screwdriver, no need any take hole, Free of wiring, drilling.

- Doorbell built-in offers every convenience for the visitor.

- Powered by 4pcs AA Battery and with low battery alarm, Battery life: 2,000 times open / close

- Optional Remote control function.

- Support external emergency battery input.

- Support USB to download attendance record.

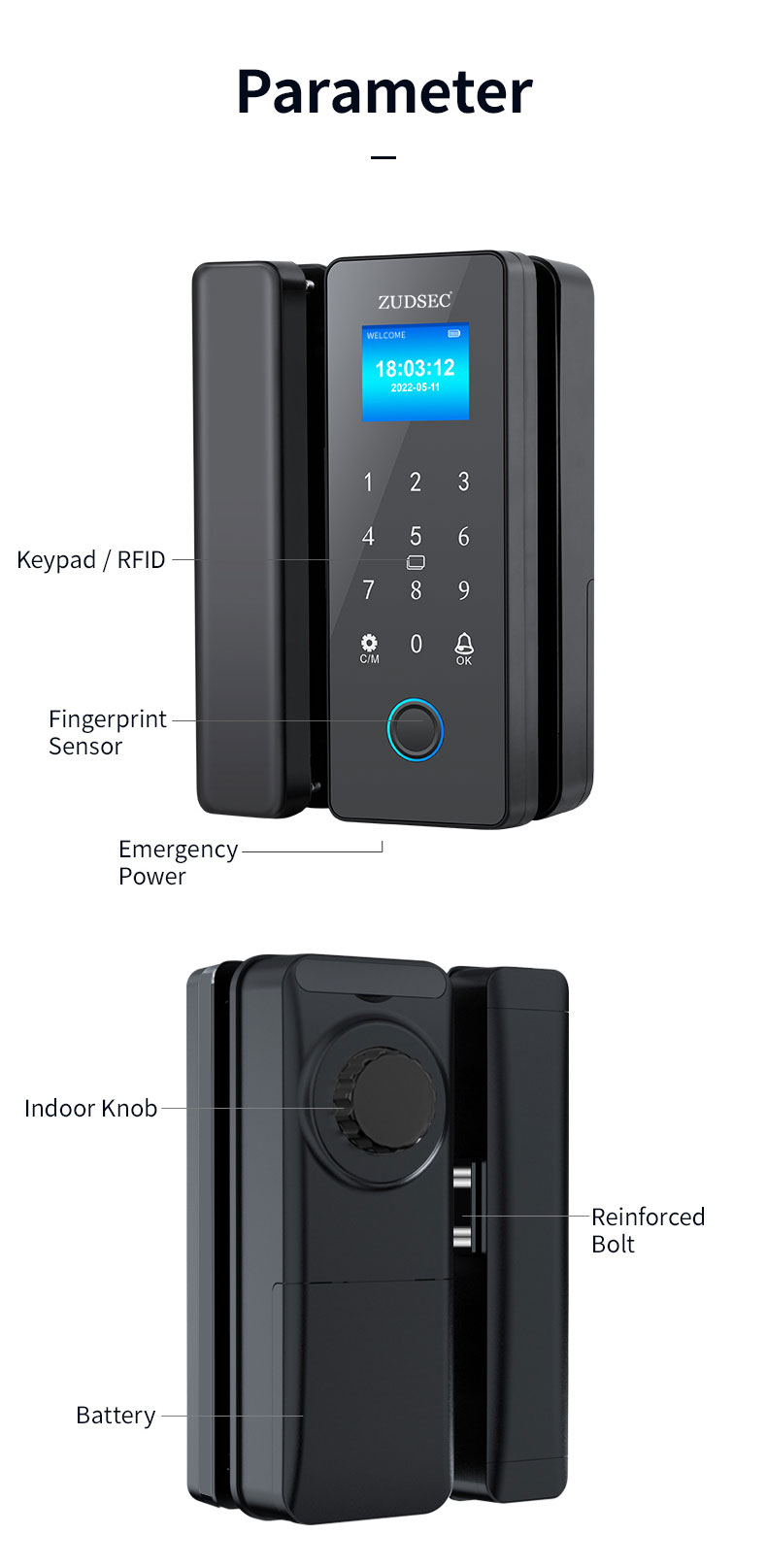

  • Unlocking mode: Fingerprint/password/ card and other methods

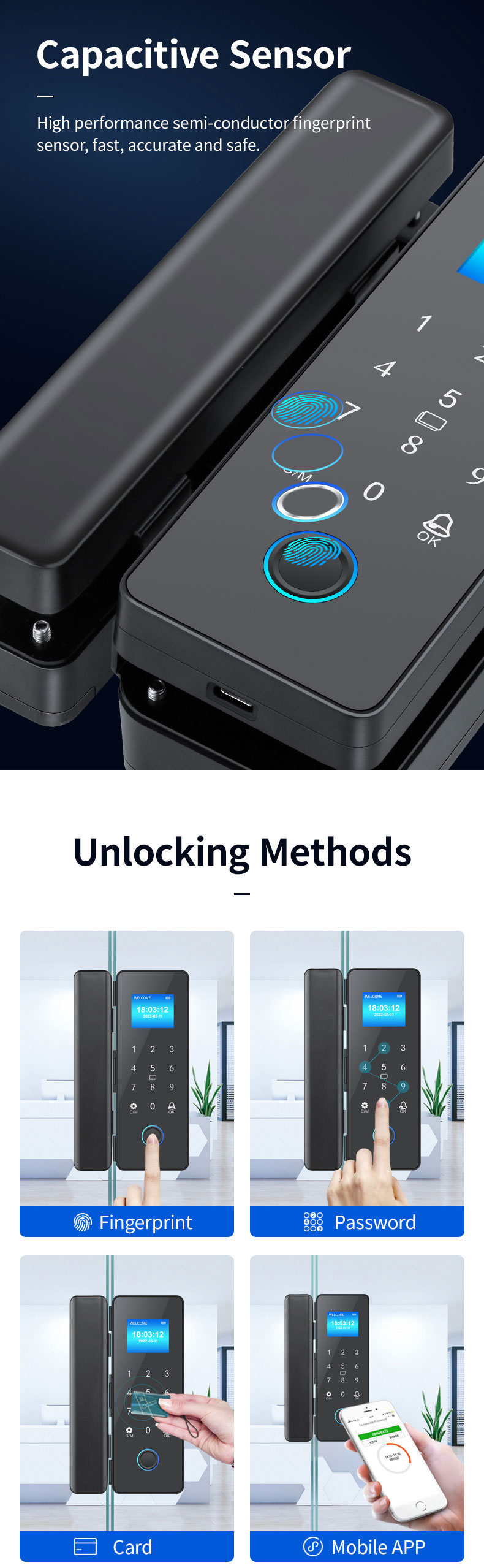

  • Sensor type: Semi-conductor fingerprint sensor

  • Recognition speed: <0.5s

  • Failure?rate: <0.0001%

  • Fingerprint capacity: 100

  • User capacity: 1000

  • Record: 100,000 Pcs

  • Remote control capacity: 36(optional)

  • Working temperature: -25℃~65℃

  • Working humidity: -25~95%(no condensation)

  • Power supply: 1.5V AA alkaline batteries x4

  • Battery life: 2,000 times open / close

  • Emergency power supply: Micro USB

  • Current: Static<50uA, dynamic <200mA

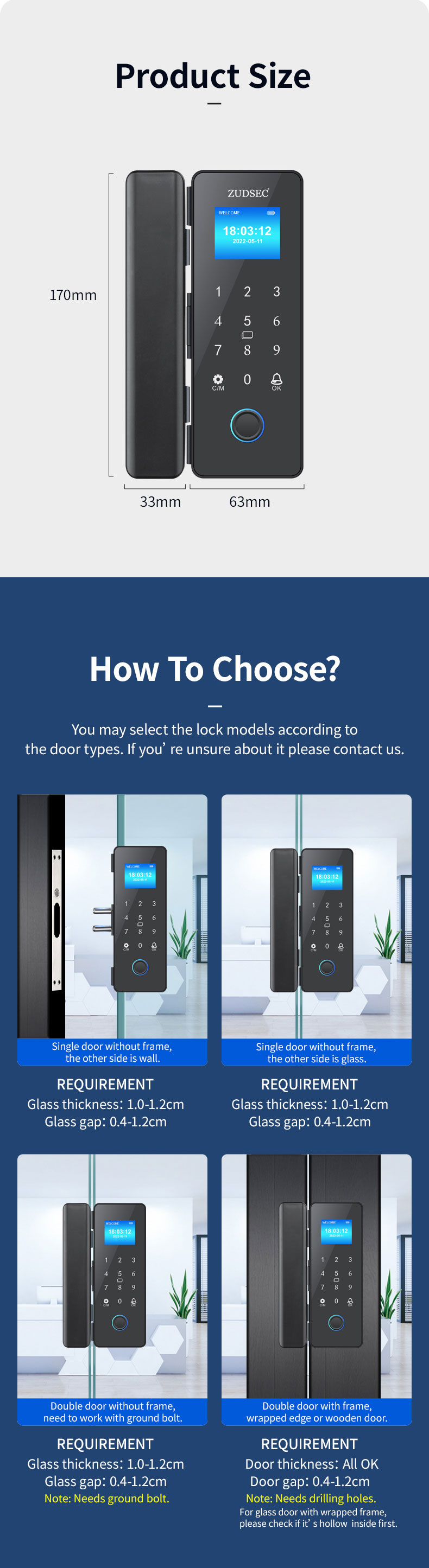

  • Application:  8-12mm frameless glass door (door gap 4-15mm); 30~120mm framed glass door /wooden door


Package Contents:

  • Standard Exporting Packing Box
