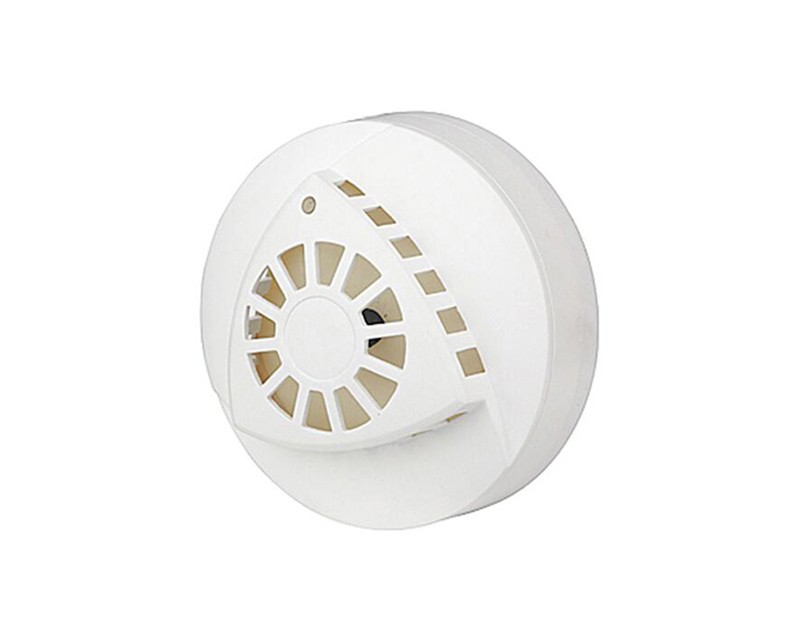

Heat Detector: ZDD-320H
Multi-Angle View

Heat Detector -4 Wire

MODELZDD-320H

Facebook Twitter InLink instagram Youtube Skype
  • Modern stylish design,

  • Low Power consumption

  • LED visible in 360 degrees direction

  • Anti-RFI & anti- EMI

  • Twist-off mounting for fast installation

  • Designed to comply with EN-54, UL521 standards

Heat Detector-4 Wire: ZUDSEC smoke detector series provides early warning of developing fire. Modern stylish design, Low Power consumption,Non-polar input power supply, LED visible in 360 degrees direction, Anti-RFI & anti- EMI, Twist-off mounting for fast installation. Designed to comply with EN-54, UL521 standards.

- Modern stylish design, Low Power consumption
- LED visible in 360 degrees direction
- Anti-RFI & anti- EMI
- Twist-off mounting for fast installation
- Designed to comply with EN-54, UL521 standards

  • Operating Voltage: DC9-35V;

  • Standby Current: 50uA;  Alarm Current: 22mA@12V, 40mA@24V

  • Alarm Output: Relay output & LED Flash

  • Alarm Temperature: 57ºC

  • Installation Method: Ceiling Mounted

  • Operating Temperature: -10°C ~ +70°C; Operating Humidity: ≦90%RH

  • Dimension Size: Φ10 cm * 4.8cm; Packing box: 11.5*11*6cm; Weight: 0.2kg/pc


Package Contents:

  • Standard Exporting Packing Box
