Wireless Remote Control Switch / Relay Receiver /Gate Opener:  1-channel output, DC12/24V or AC220/110V optional,  It's an idea wireless solutions for automatic control application like: Wireless reomte control, electric door/gate, light control, Control curtain, window and lifter equipment, industrial control, security system and home appliances, various wireless appliance switch to  switch on/off of equipment controlling or implement the motor F/R (forward or reverse) rotation etc. Can work with any of ZUDSEC remote controller.

- High security, larger storage, stable performance, low power consumption and easy operation.
- Learning code between remote control and wireless relay receiver
- Can learn up to 19 different remote controls each wireless relay receiver.
- With ZUDSEC Remote offers flexible installation options.
- The relays can be Normally Open (N.O.) or Normally Closed (N.C.).
- Three working modes: Inching, Self-Lock and Interlock.
- Make it wireless, turn your security, access control, home automation, or gate operation into an efficient wireless operaiton.
- Suitable: electric door, window and gate, industrial control, home appliances and security system and so so.

• Working modes: Inching, Self-Lock and Interlock.

• Operating voltage ：DC12V or 24V , AC220V or 110V(customized)

• Quiescent current ：≤5mA; Loading current ：≤3A

• Wireless Frequency: 315MHz,433MHz

• Transmit distance：50-100M

• Coding type: learning code

• Operating temperature ：-20℃ ~ +50℃

• Receiving sensitivity ：≥-105dBm

• Output voltage  ：AC or DC

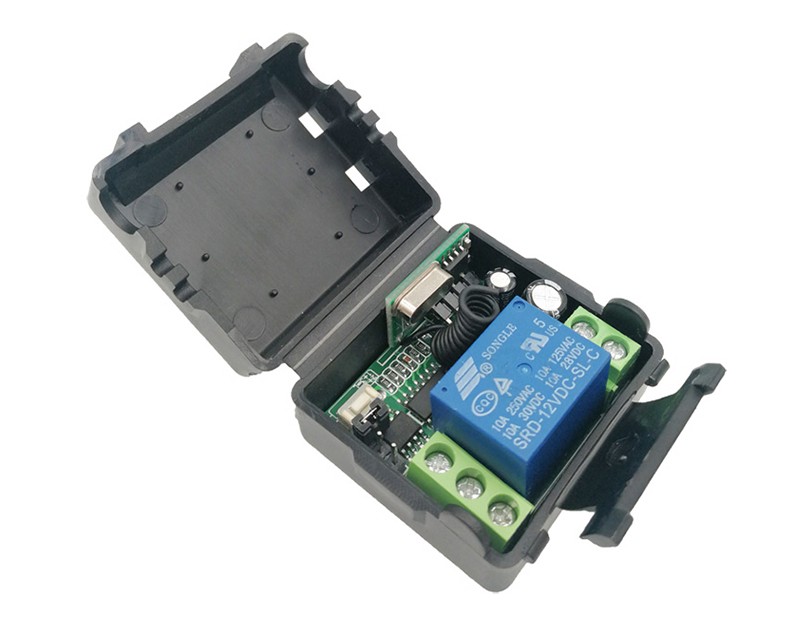

• Relay Receiver ：
  Product size: 75mm×55mm×30mm;  Weight: 75g/pc;

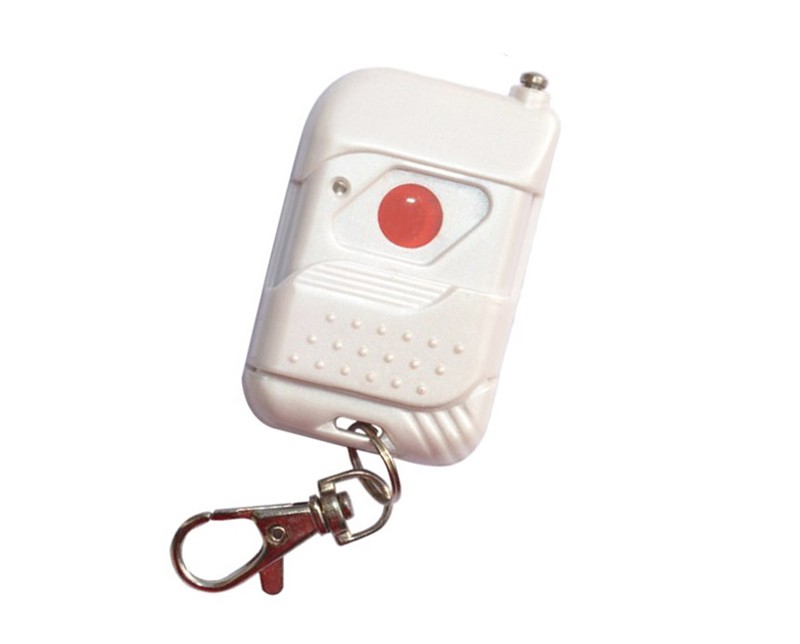

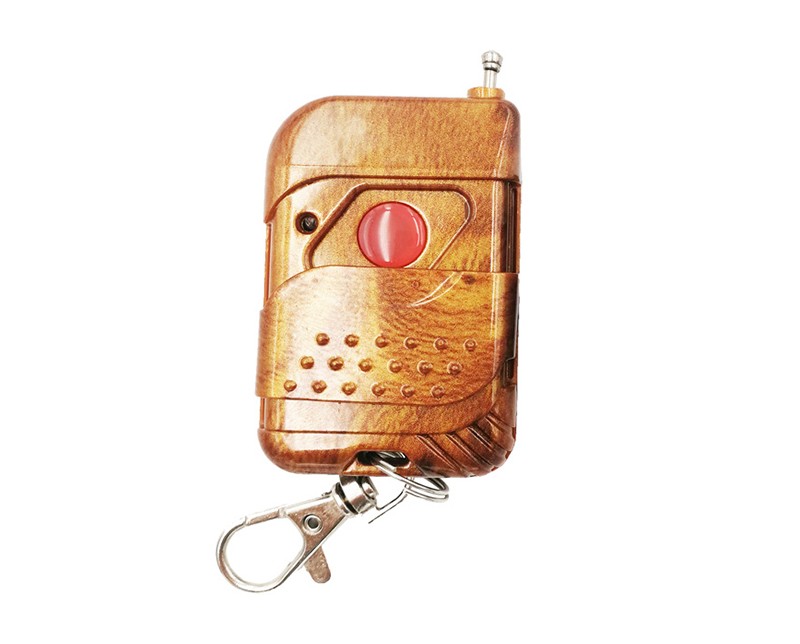

  Remote controller:
  Product size: 59mm×30mm×15mm;  Weight: 40g/pc;

Package Contents:

• Standard Exporting Packing Box
