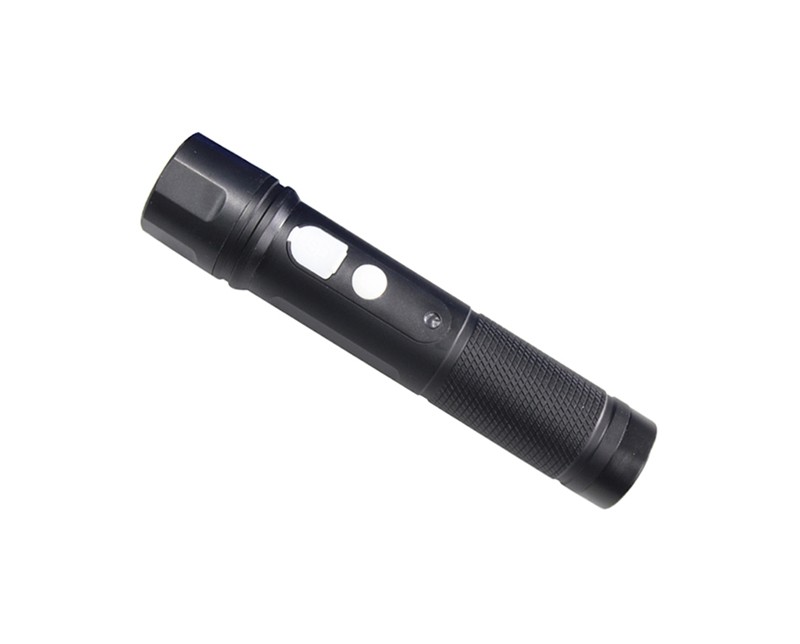

Flashlight Patrol Reader:  ZDGP-101F

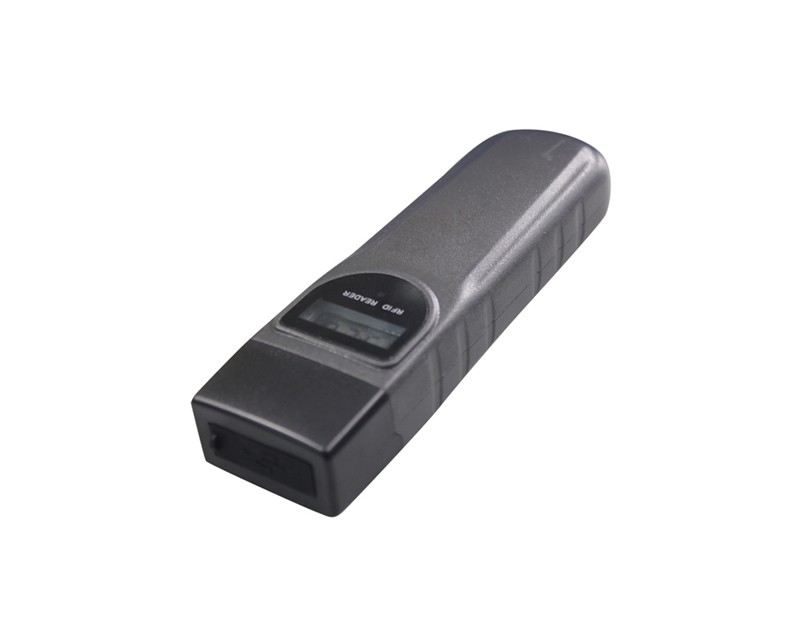

LCD Patrol Reader: ZDGP-101L
Multi-Angle View

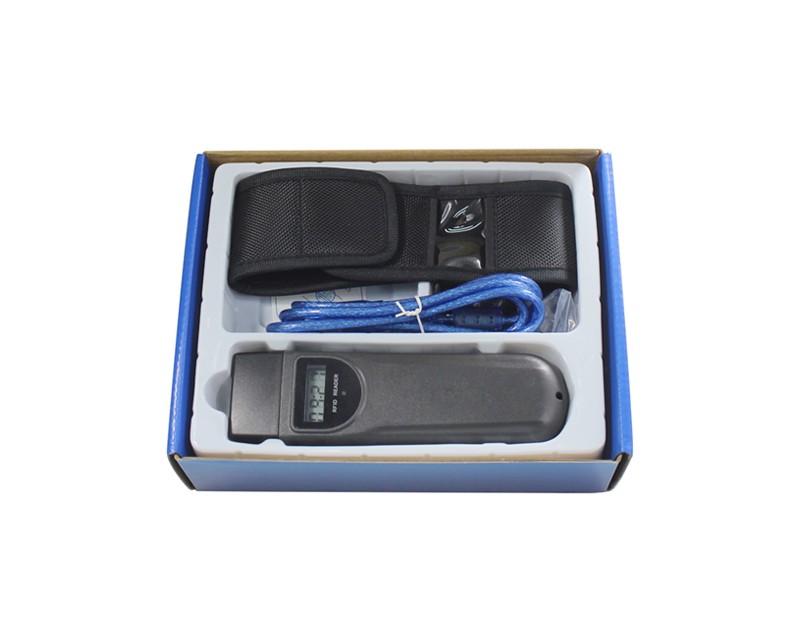

ZDGP-101L Package

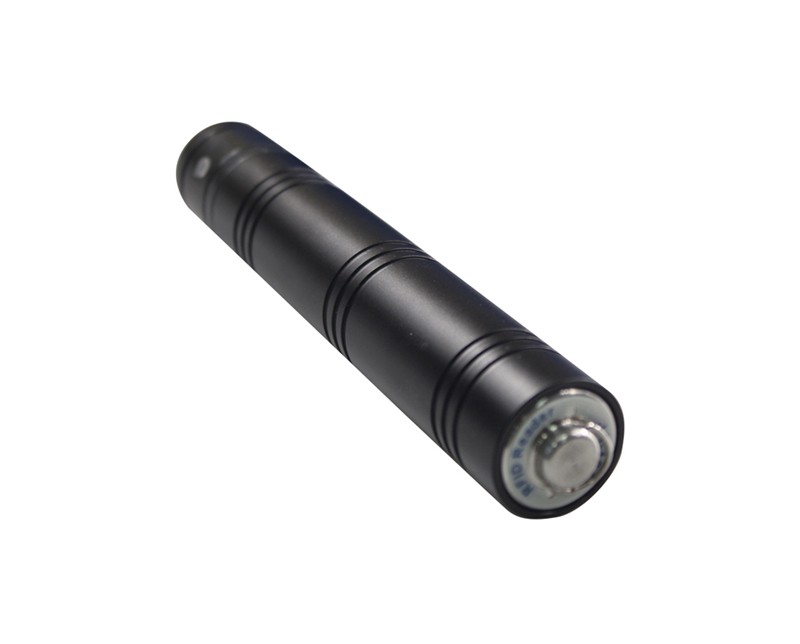

Economic Patrol Reader: ZDGP-101E

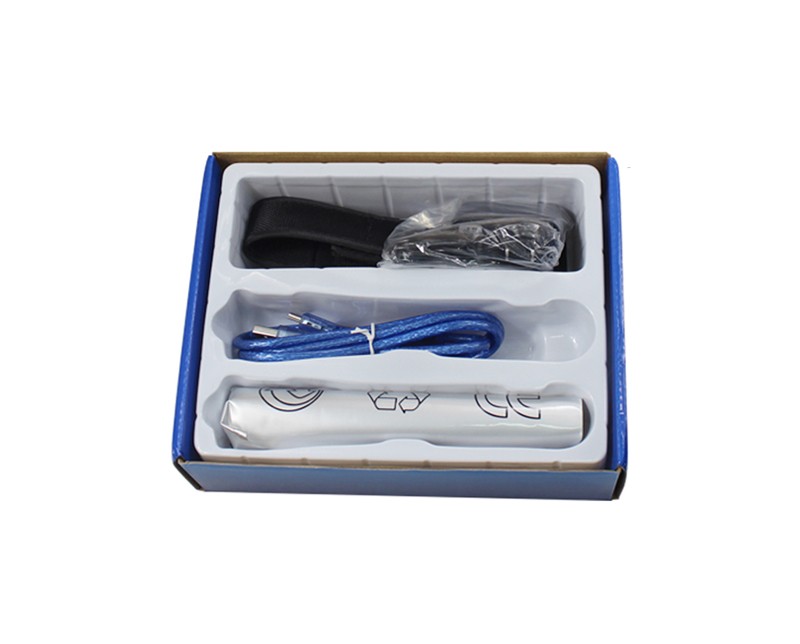

ZDGP-101F Package

RFID Guard Patrol Reader -LCD

MODELZDGP-101L

Facebook Twitter InLink instagram Youtube Skype
  • LCD digital display: visit point, time

  • Waterproof, Shock-resist case

  • 16MB, 60,000 records

  • 3.6 V lithium battery

  • Light and buzzer to show success read.

  • Low power consumpion

  • USB,communication mode,high speed download data.


RFID Guard Tour System: is a more durable & easy operation Guard Tour Data Collection Terminal, based on RFID technology, Water-proof, Shock-Resist and Anti-Vandal with super imported aeronautical aluminum body, premium Military Grade hard anodized coat and built-in silicone layer. Auto-inductive, no need to press and just a swipe. Use our application software, you may set up a remarkable Patrol Management System.

It helps you watch over your employees that have had difficulties to track those whose working duties require moving from place to place, such as security guard patrolling, policeman patrolling, remote equipment inspection / maintenance...etc.

- Optional Model:
Economic Model:  ZDGP-101E
LCD Model:            ZDGP-101L
Flashlight Model:  ZDGP-101F
Explosion-Proof Model: ZDGP-101



RFID Guard Patrol Reader -LCD(图1)



- Water-Proof and Shock-Resist, built-in silicone layer, super imported aeronautical aluminum body, premium Military Grade hard anodized coat, 10 meters free fall without damage. Suitable used in harsh environment.
- Auto-inductive, no need to press.
- Storage: 60,000 records. (expandable)
- Communication: USB, no need to install USB driver, high-speed download data.
- 3.6 V Rechargeable lithium-ion battery
- Built-in LED and buzzer to show success read, also can light and vibration.( optional in software)
- Low power consumption: Once full charge supports 10,000 readings above.
- Automatic alarm when low power or storage full.
- Stores ID, time and date information of each checkpoint patrolled
- Withstand 4000V
 static electricity shock.
- Easy operation,makes your installation easily.

  • Physical: Super imported aeronautical aluminum body, premium military grade hard anodized coat, built-in silicone layer

  • Storage Capacity: 60,000 records (expandable)

  • Communications: USB connection

  • Battery: 3.6V lithium battery, rechargeable

  • Prompt Mode: Light&buzzer or light&vibration (optional in software)

  • Frequency and Format: 125KHz, ASK, 64 bits, Manchester encoding

  • Reading range: 3~5cm

  • Operating Temperature: -20°C ~ 80°C

  • Dimension: 143mm*36mm*28mm ;
    Packing size: 22*17*6CM; Weight: 0.6Kg

Package Contents:

  • Standard Exporting Packing Box
