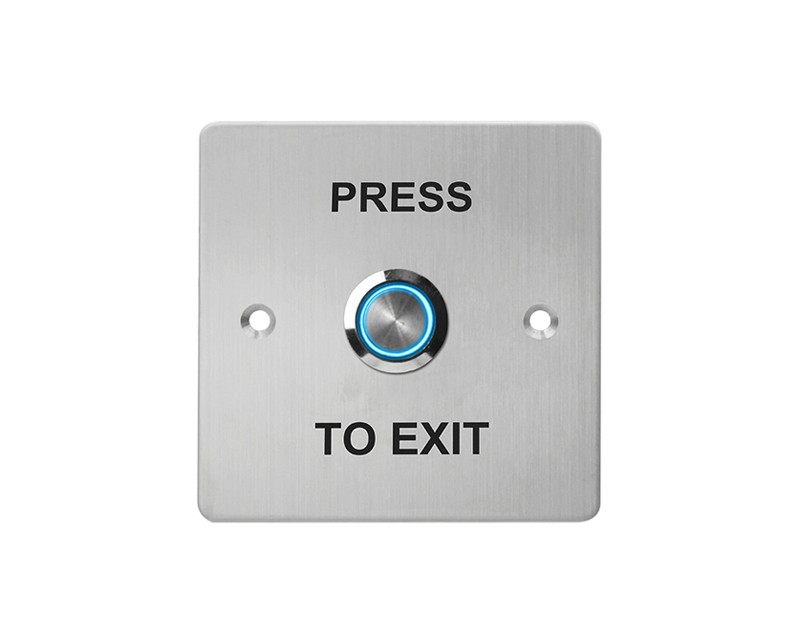

Zinc Alloy Exit Button
Button with blue LED
Multi-Angle View
Multi-Angle View

Zinc Alloy Exit Button


Facebook Twitter InLink instagram Youtube Skype
  • Zinc alloy panel, Metal Button

  • 500000 times life

  • No Mechanical Fault

  • Contait Output: NO. /NC./COM

  • Suitable for all kinds of locks

Door Release Button-Zinc Alloy: NO/NC/COM Contact Output, Zinc Alloy Panel with Elegant Style,500000 Cycles tests,Suitable for all kinds of Locks and Access Control system

- Zinc Alloy Panel with Elegant Style.
- With the Bottom Box, Easy to Install.
- Mechanical Life: 500000 tested
- Contact Output: NO/NC/COM.
- The Best Choice for Access Control.

  • Standard Structure  Zinc Alloy Plate, Steel Button

  • Current Rating  3A@36VDC Max

  • Output Contact  NO/NC/COM

  • Mechanical Life  500000 tested

  • Suitable for Door  All Kind of the Narrow Door Frame

  • Operating temp  -20~+50℃
    Operating Humidity  0-95% (relative humidity)

  • Panel Material  Alloy Plate, Sandblast Finished

  • Dimensions  53Lx53Wx26H(mm) ; Weight  0.14kg

Package Contents:

  • Standard Exporting Packing Box
