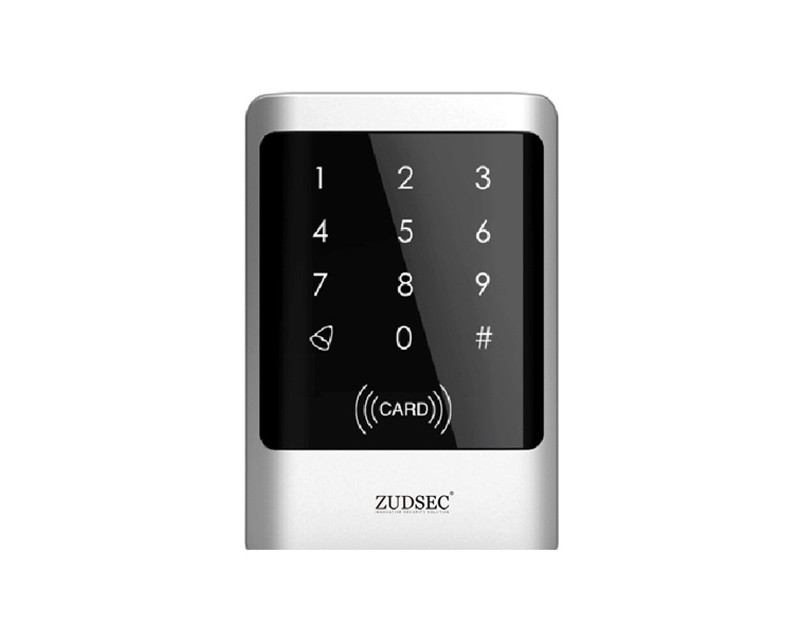

 Fingerprint Access Control: ZDAC-T2F
Multi-Angle View

Touch Keypad Fingerprint Access Control -WiFi Optional

MODELZDAC-T2F

Facebook Twitter InLink instagram Youtube Skype
  • Touch Keypad, WiFi & Waterproof optional

  • Supporting fingerprint, card and password

  • 300 Fingerprint users, 10000 RFID users & PIN

  • Wiegand output, wiegand input

  • Wiegand interface: wiegand 26

  • Metal shell, anti-vandal design.

Touch Keypad Fingerprint Access Control: Touch Keypad, Metal case, Anti-vandal,Multi-function standalone access controller and reader, WG26 output/Input Capacity: 10,000 cards/300fingerprints, card, fingerprint 2 kinds of openning door method. The high security and more powerful feature make it an ideal choice for door access.  By Master card for programming, it is so user friendly that anyone can use it.


User capacity 10000, including 300 fingerprint users and 10000 RFID card users. With the flexible user capacity, it is suitable to be installed from small house such as personal rooms, shops, office to public place such as large factories, companies.


-Optional model:

* ZDAC-T2F (Normal type)

* ZDAC-T2FW (IP68 Waterproof type)

* ZDAC-T2F-WiFi (WiFi type)

* ZDAC-T2FW-WiFi (WiFi + IP68 Waterproof type)



Touch Keypad Fingerprint Access Control -WiFi Optional(图1)

- Touch Keypad, Supporting fingerprint, ID card and password
- 300 Fingerprint users, 10000 RFID users & PIN
- Wiegand output, wiegand input
- Besides standalone, it can connect to other controller as the salve reader
- Wiegand interface: wiegand 26
- Remote control / Master card for programming
- Metal shell, anti-vandal design.
- Anti-magnetic & lock output current short protect;
- Support connecting any card readers with wiegand interface, such as HID, 13.56MHz Mifare Card, or 125KHz EM card.
- Full of 2160 users, searching speed <0.1 S.
- DC input: 12DC,100mA

Model

ZDAC-T2F

 Memory  capacit100000
 Fingerprint  capacity 300
 PIN /RFID  users10000
 Supply  Voltage 12VDC±10%
 Sleeping  Current <20mA
 Stay  Current <90mA
 Temperature -15ºC-60ºC
 Humidity 20%RH-95%RH
 Lock output load  capacity 30A
 Alarm output load  capacity 20A
 Resolution 450 DPI
 Fingerprint input  time <1S
 Identification  time <1S
 FAR <0.001%
 FRR <0.1%
 Dimensions 139L*70W*22H(mm)
 N/W 500g
 G/W 700g



Package Contents:

  • Standard Exporting Packing Box
