Wireless PIR:  ZDD-107PIR
Multi-Angle View

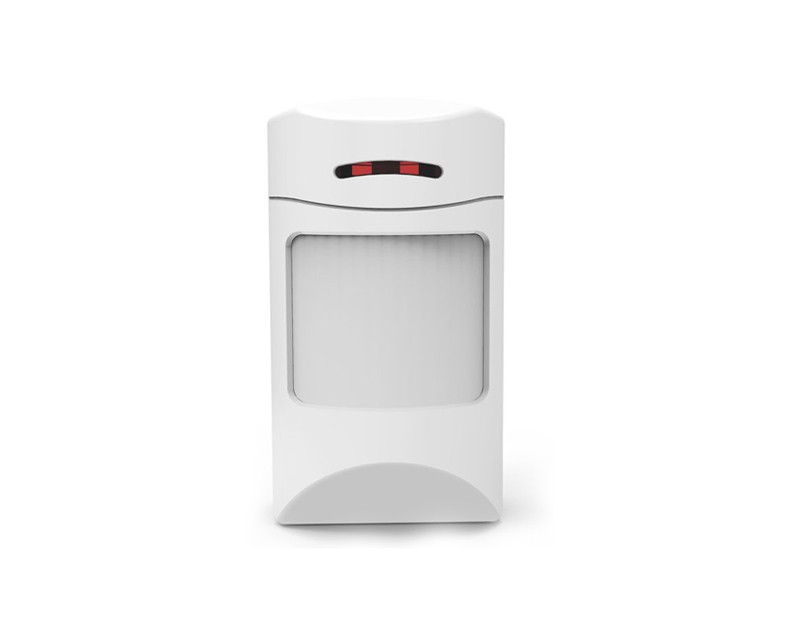

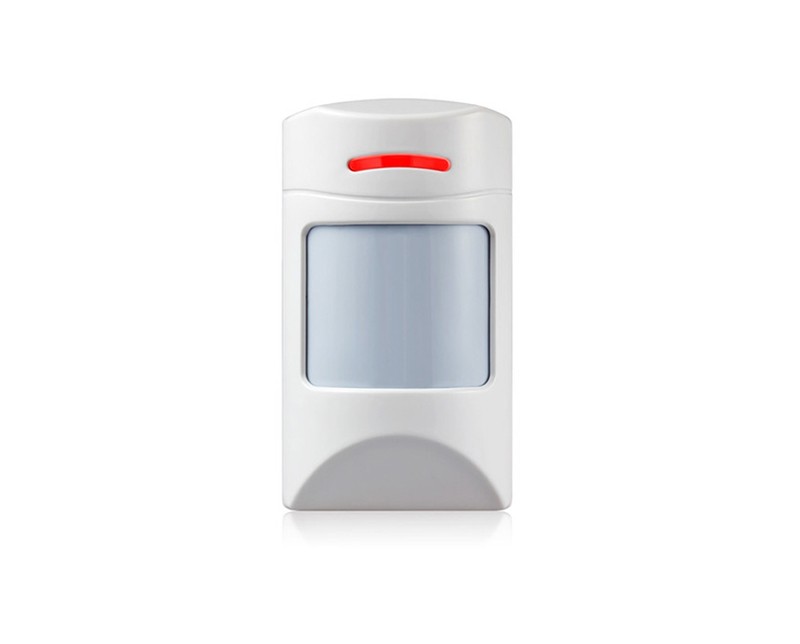

Wireless Wide Angle PIR Motion Detector

MODELZDD-107PIR

Facebook Twitter InLink instagram Youtube Skype
  • Detecting human's motion and body's temperature in a wild angle area

  • Pet-immunity: Immunity of less than 12kgs pet

  • Wireless transmitting digital signal

  • Automatic temperature compensation

  • 2-years long battery life

Wireless Intelligent Pet-immunity PIR Motion Detector: ZDD-107PIR is wireless intelligent pet-immunity  detector with high stability, It is compounding of high precise infrared detector and inkling logical digital core, smart model with Engineering Nylon rack, provided superhigh detection ability, function of automatically identify valve control and pulse count. The detector will detect movement of human automatically when intruder pass through the detected area, and it will send out alarm signal to alarm host if there is movement. The product is suitable for the safety of residential house, villas, factories, markets, warehouses, office building etc


The ZUDSEC series of motion detectors combines advanced features and  technologies to provide a high level of detection and false alarm prevention. Whatever the application, there's a ZUDSEC motion detector that will suit your needs and surpass your expectations. The product is suitable for the safety of residential house, villas, factories, markets, warehouses, office building etc.

Working principle: The PIR detector will detect human movement automatically when intruder pass through the detection area, and it will send out alarm signal to alarm host.


- Detecting human's motion and body's temperature in a wild angle area
- MCU processing & ASIC adopted
- Pet-immunity: Immunity of less than 12kgs pet
- Automatically identify valve control
- Adjustable pulse count
- Wireless transmitting digital signal
- Automatic temperature compensation
- SMT adopted, anti-RFI & anti-EMI

  • Operating voltage: 2*1.5V (2*AA Alkaline battery); Standby current: less than 12uA
    Alarm current: less than 15mA

  • Installation mode: wall mounted;
    Detecting distance: 9~18m;  Detecting angle: 110°

  • Working frequency: 315MHz/433MHz

  • Low battery indicator: yellow LED; Alarm indicator: red LED

  • Range of coverage: 11 distance, 8 middle, 5 vicinities

  • Sensor: dual element infrared sensor

  • Environment humidity: ≤ 95% RH (no congelation);

  • Operating temp. :-10 to +50°

  • Anti RF interference: 10MHz―1GHz  20V/m

  • Installation mode: wall mounted or hanged in corner
    Installation height: 1.7 to 2.5m (2.2m is Proposed)

  • Transmitting distance: more than 200m (in the open area)

  • Dimension: 107*59*45mm; Packing box: 13.5*7.8*5.3cm; Weight: 150g/pc


Package Contents:

  • Standard Exporting Packing Box
