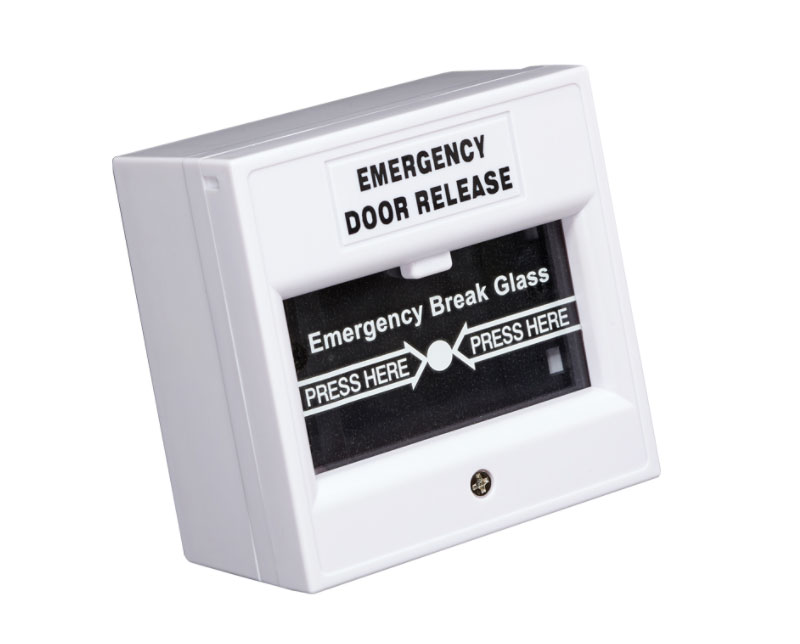

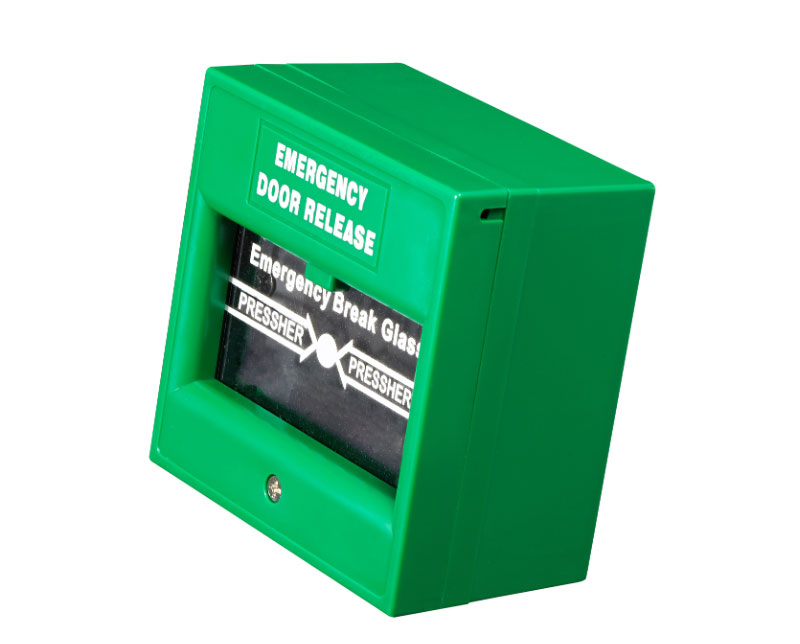

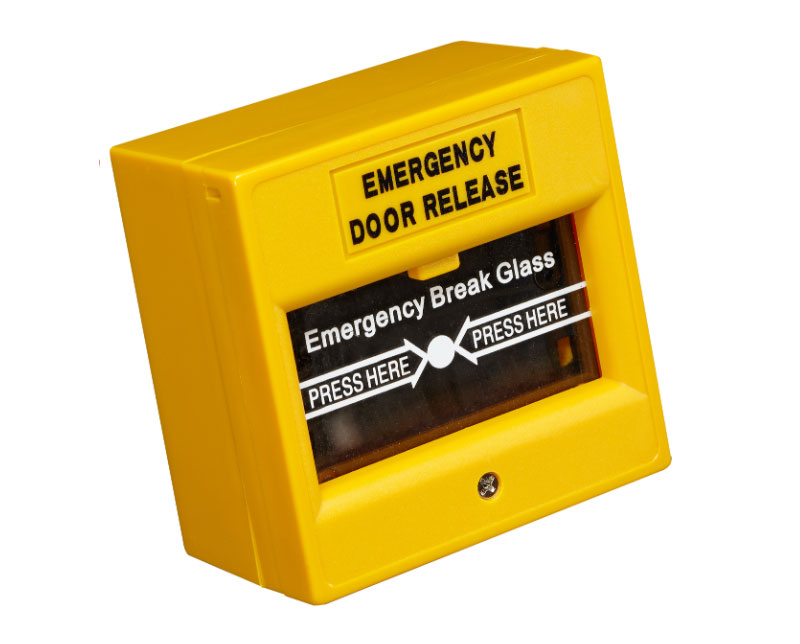

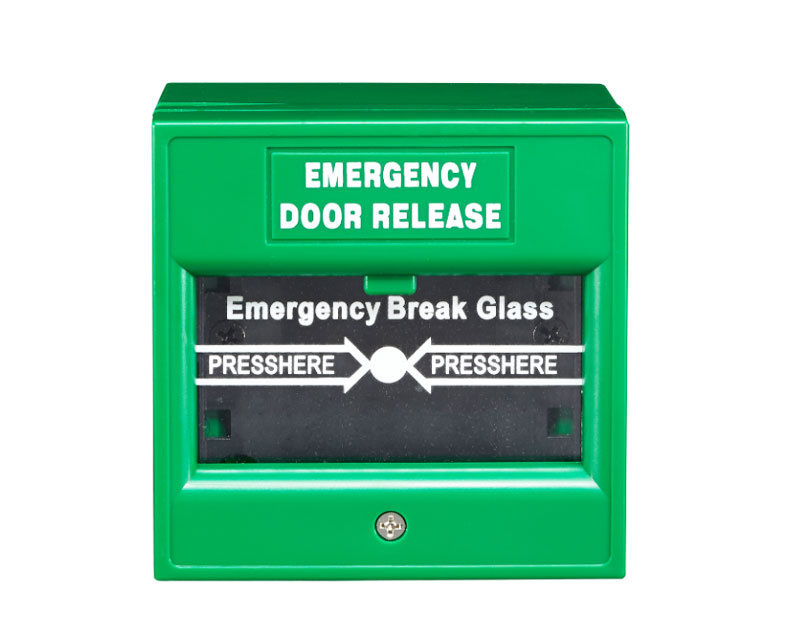

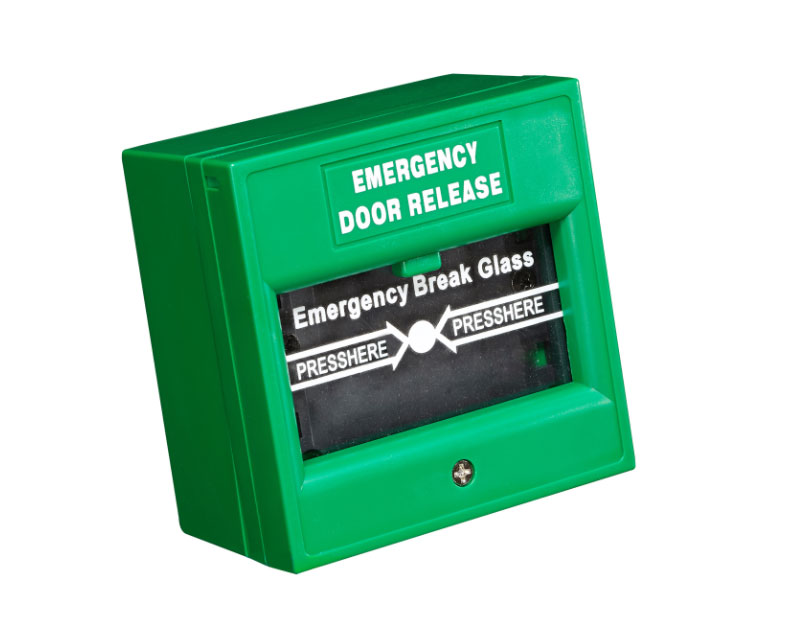

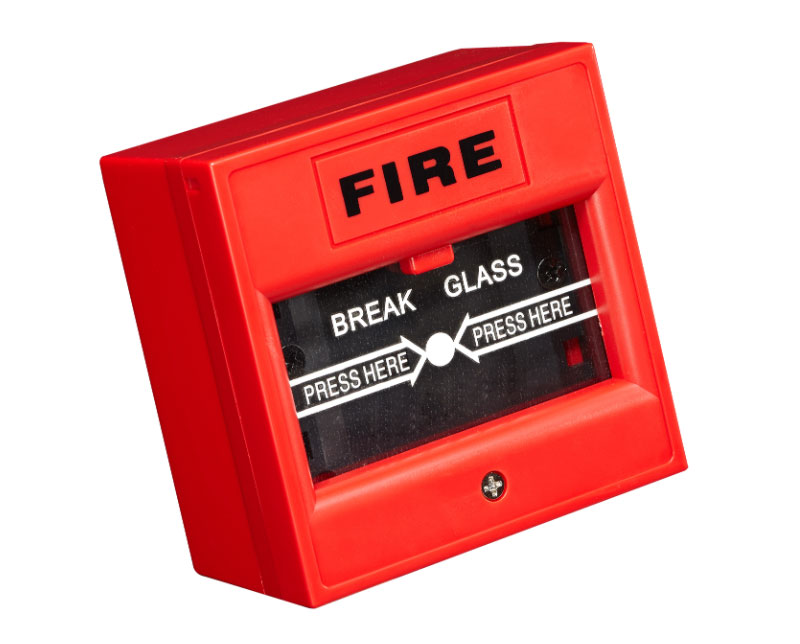

Emergency Door Release Button: ZDF-101 is Break Glass Fire Emergency Exit Release Button (single pole) suitable for Exit Door, Emergence Door.

 Green/Red/Yellow color are optional.

- Emergency Exit Button

- Fireproof material
- Settable function

- Available in Red, Green, White & Yellow color
- Contact Output: NO/NC/COM, Double Pole
- Current Rating:  3A@36VDC Max
- Suitable for Exit door, Emergency door, Escape vent

• Feature:  Reset automatically,open & close  (need order)

• Standard Structure:  Fireproof Material, Easy to install

• Rated Voltage: DC24V; Current Rating:  3A@36VDC Max

• Output contact: NO.&NC.

• Mechanical Lifespan:  100000 tested

• Suitable for door:  Exit Door, Emergence Door

• Material  Selection:  Fireproof Material, Sandblast Finished

• Available Color:  Red, Green, Orange,White optional

• Aptional Accessories:  Glass, Cover

• Operating temp:  10～+55(14-131F) ; Operating humidity:  0-95%(relative humidity)

• Dimensions: 86Lx86Wx50H(mm);

• Packing size:100*95*60mm; Weight  0.2kg

Package Contents:

• Standard Exporting Packing Box
