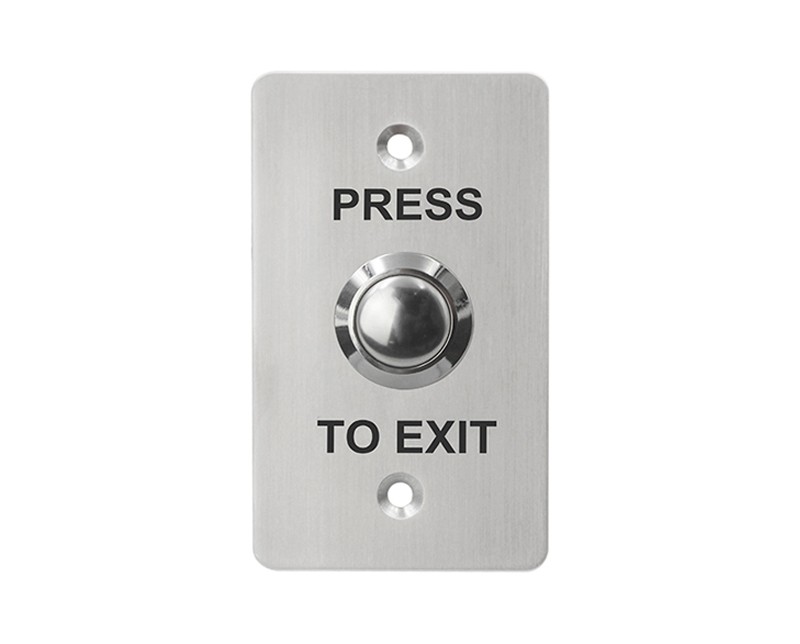

Stainless Steel Exit Button: ZDBT-701

Stainless Steel Exit Button

MODELZDBT-701

Facebook Twitter InLink instagram Youtube Skype
  • 304 Stainless steel Panel

  • 500000 times life

  • Thickness: 1.7mm

  • No Mechanical Fault

  • Suitable for all kinds of locks.


Door Release Exit Button: NO output, Stainless steel Panel, Nickel-plated copper button, 500000 times life. The Best Choice for Access Control.

- Stainless steel Panel,Nickel-plated copper button
- Mechanical Life: 500000 tested
- Contact Output: NO. (NC.&NO. contact can be customized)
- Suitable for Door: Hollow Door

  • Stainless steel Panel,Nickel-plated copper button, 500000 times life

  • Contact Output: NO.

  • Current Rating:  3A@36VDC Max

  • Suitable for Door: Hollow Door

  • Mechanical Life: 500000 tested

  • Operating temp: 10~+55℃(14-131F)
    Operating Humidity: 0-95% (non- condensing)

  • Dimension:86*50mm; Thickness: 1.7mm; Weight: 0.15kg


Package Contents:

  • Standard Exporting Packing Box
