Concealed Door Closer-Round Type: ZDDC-801R
Concealed Door Closer-Square type: ZDDC-801

Concealed Sliding Door Closer

MODELZDDC-801R/801

Facebook Twitter InLink instagram Youtube Skype
  • Concealed installation on the top jamb or the inside of the door

  • One-way opening door

  • Safe & durable

  • Mechanical Life: 500000 tested

  • Max Leaf Width: 1000mm~2100mm;

  • Loading Weight: 35 ~75KG

  • Applicantion: Wooden door, Steel door and Metal door.

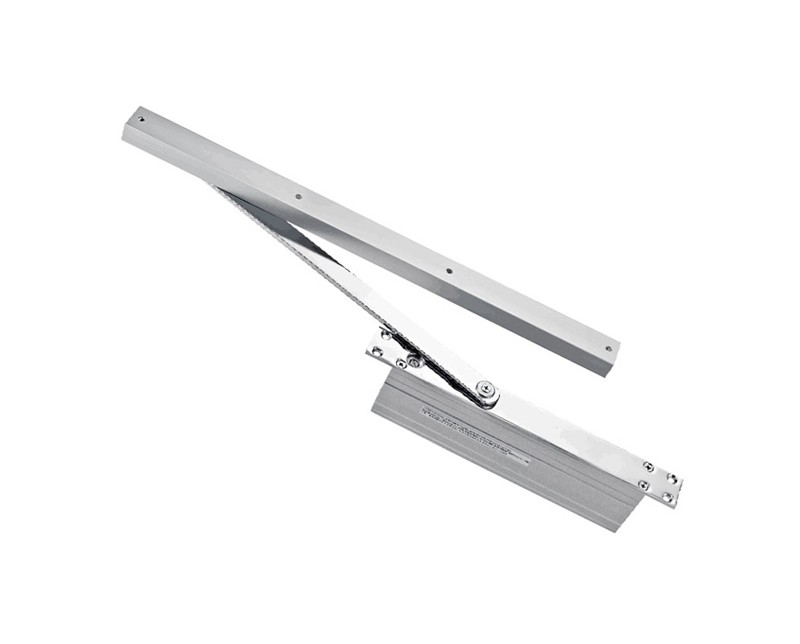

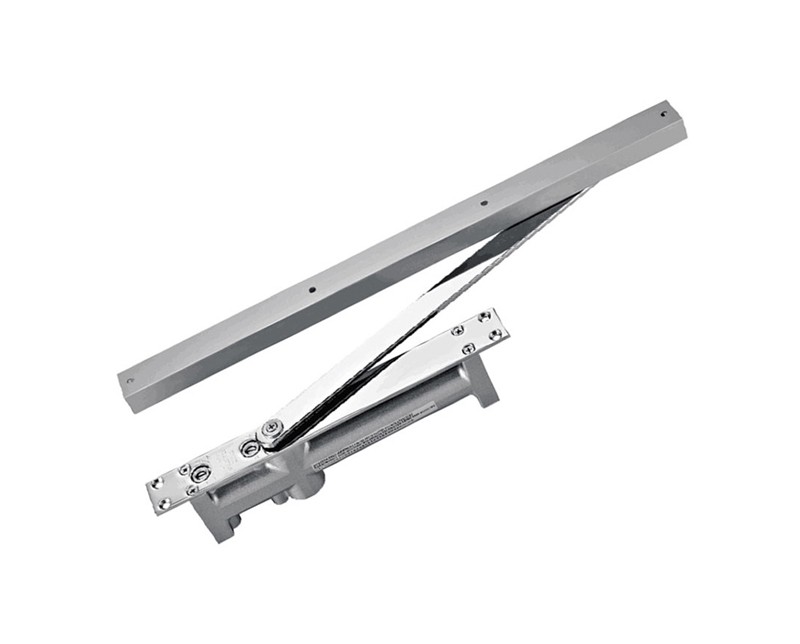

Concealed Door Closer is the high quality Sliding Arm door closer which can be installed on the top jamb or the inside of the door. It is provided with reasonable construction and reliable performance. Mostly be used in thestars hotel and luxurious department.

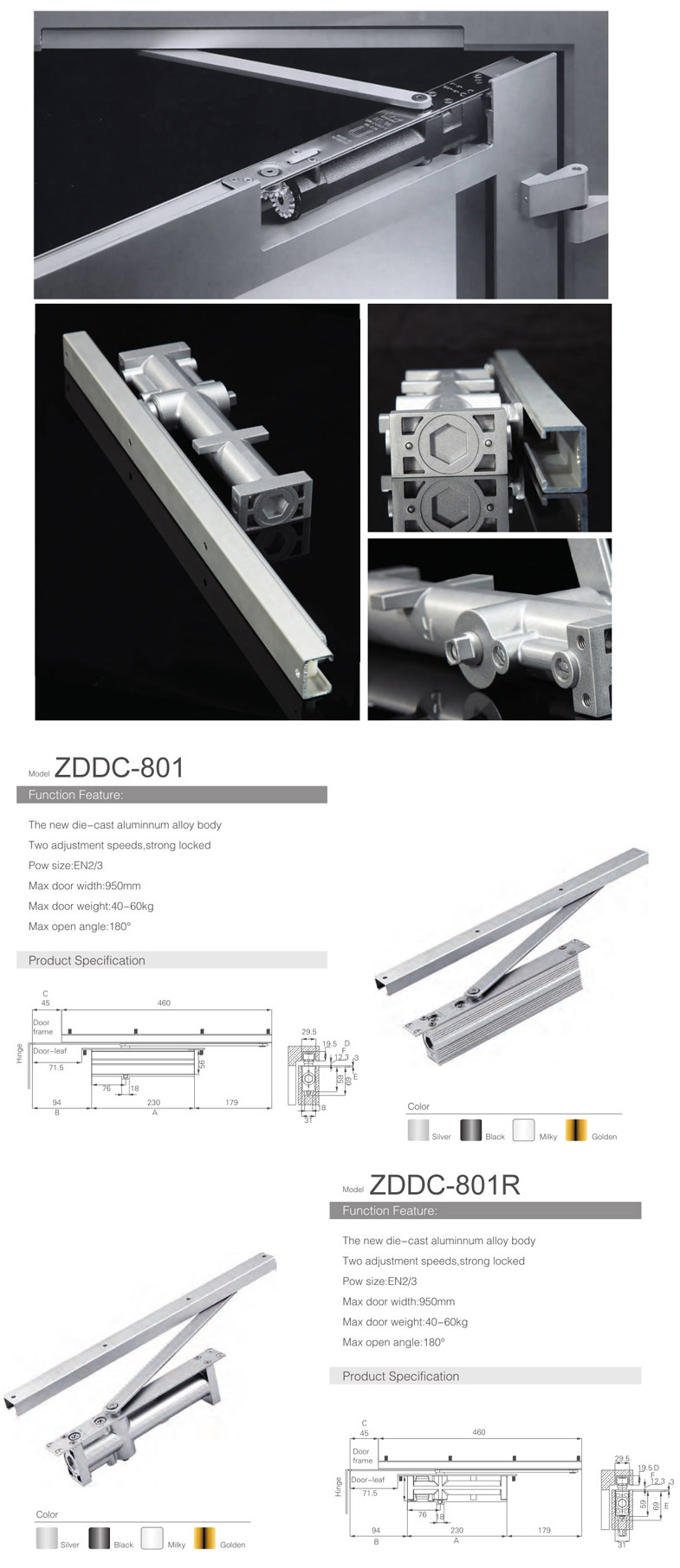

Concealed Door Closer(图1)

- Closing and latching speed can be adjusted independently.
- Precise aluminum die-cast body and aluminum profile sliding rail arm
- Heat treated steel piston and pinion for high strength
- Sliding rail with stop function.
- Sliding rail arm has hold open door device which can hold the door open at any angles from 45°~150°.
- Mechanical Life: 500000 tested
- Safe & durable
- Suitable for: Wooden door, Steel door, Fire Door, Glass Door and places where security is strictly required.
- Square type or Round Type Door Closer is optional
- Designed to comply with QB/T2698-2005 National Standard.

  • Installation methord: Concealed installation on the top jamb or the inside of the door

  • One-way opening door

  • Mechanical Life: 500000 tested

  • Applicantion: Wooden door, Steel door and Metal door.

  • Max Leaf Width: 1000mm~2100mm;

  • Loading Weight: 35 ~75KG

  • Gross Weight: ZDDC-801R 1.9KG/pc; ZDDC-801 2.3kg/pc,
    Packing Size: 48*12*4cm


Package Contents:

  • Standard Exporting Packing Box
